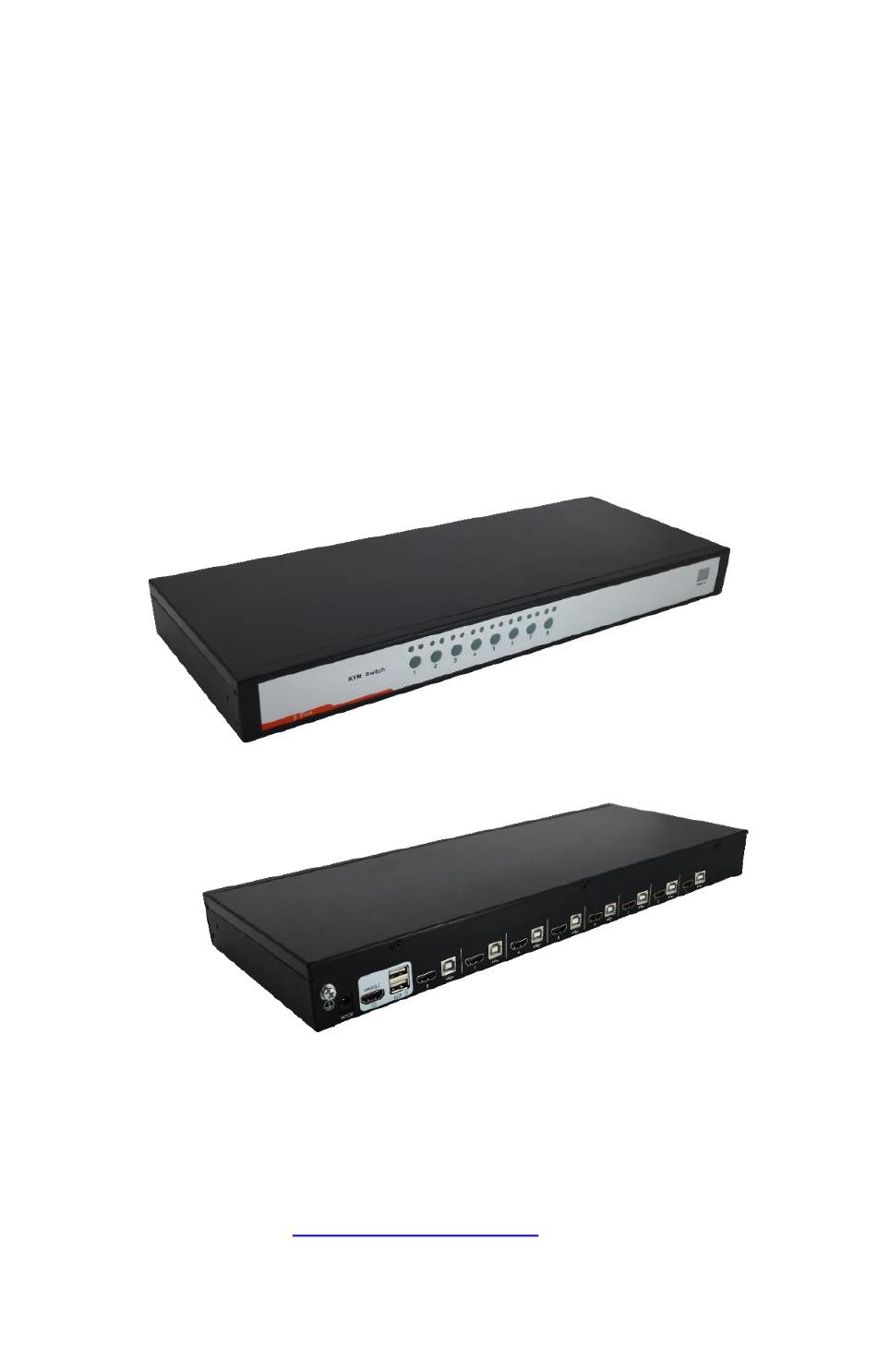

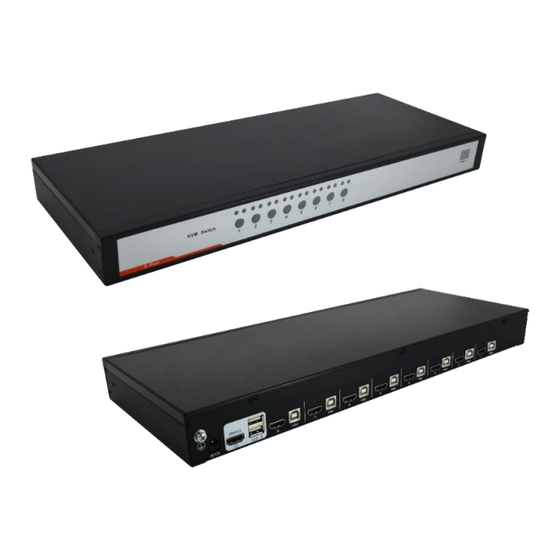

- Page 1 HDMI KVM Switch （8 Port / 16 Port） User Manual www.kinankvm.com/ @all right reserved Shenzhen KinAn Technology Co.,Limited Printing date：2019/08 Version：V1.0...
- Page 2 8 Port /16 Port User Manual Overview Descriptions HDMI switch is a control device which controls multiple computers from a single console (keyboard, video and mouse). It is easy and fast to install the KVM switch, you just need to connect corresponding cables to the right ports of the KVM.
- Page 3 8 Port /16 Port User Manual Hardware Installation Rack Mounting Make sure all the computers and external device are shut down before installation. Put the KVM switch in place, screw the brackets to the two sides of the KVM to install the KVM in the standard 19”rack.Pay attention to the cable length, to keep a certain distance between the KVM and the computer.
- Page 4 8 Port /16 Port User Manual Rear View Instruction Grounded Screw Power adapter socket Console HDMI port Console USB port ( keyboard, Mouse) KVM Port Installation Diagram Make sure the KVM has been connected to the ground(①) Connect the power adapter to KVM(②) ...
- Page 5 8 Port /16 Port User Manual LED Instructions 1.3 KVM front view Components Function 1-8 or 1-16 1)Switching freely from port 1 to port 8/16 1）An online LED light(orange) indicates that the KVM has connected to its Port Selection corresponding computer and power on. Buttons&...
- Page 6 8 Port /16 Port User Manual Hotkey Operation Double click【Scroll Lock】(in 2 seconds) , when you heard the beep sound, you are in hotkey mode. If there are no any operations in Hotkey Mode in 2 second, keyboard out hotkey mouse. Hotkey commands are as follows：...
- Page 7 8 Port /16 Port User Manual Specification Mode RHD108 RHD116 Direct Computer Connection Max Computer Connection Port Selection Pushbutton, Hotkey Monitor 1x HDMI Type A Console Keyboard 2x USB type A Mouse Connector 8x HDMI Type A 16x HDMI Type A...
