KinAn HT1108 Manual

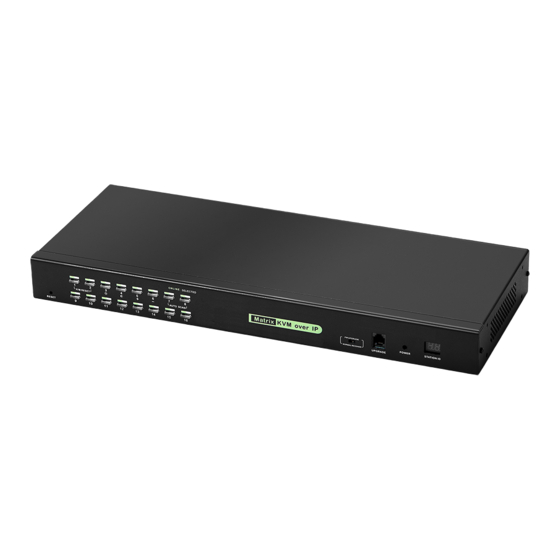

Rackmount kvm-over-ip switch 1 local / 1 remote access (8 port /16 port/32 port)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Rackmount KVM-over-IP Switch
1 Local / 1 Remote Access
(8 Port /16 Port/32 Port)
Printing date：2019/01
Version： V1.0
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT1108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KinAn HT1108

Summary of Contents for KinAn HT1108

  • Page 1 Rackmount KVM-over-IP Switch 1 Local / 1 Remote Access (8 Port /16 Port/32 Port) Printing date：2019/01 Version： V1.0 - 1 -...

  • Page 2: Table Of Contents

    8 Port /16 Port / 32 Port User Manual Contents 1. Description ....................4 1.1 Brief Introduction ................. 4 1.2 Features ....................4 1.3 Appearance ..................5 Front View ..................... 5 Structure and Size ................. 6 2. Hardware Installation ................7 2.1 Rack Mounting ..................
  • Page 3 8 Port /16 Port / 32 Port User Manual User group list ..................39 Change Password ................41 6.2 System ....................41 Network Setting ................... 42 Date /Time setting ................43 Encoding Parameters ................43 6.3 Safety management ................44 Security Settings .................

  • Page 4: Description

    8 Port /16 Port / 32 Port User Manual 1.Description 1.1 Brief Introduction The KVM - over - IP (Hereinafter refers to IP KVM) redirects the local keyboard, mouse and video data to a remote administration console. It allows you to control one or many computers locally at the server site or remotely via the Internet using a standard browser.

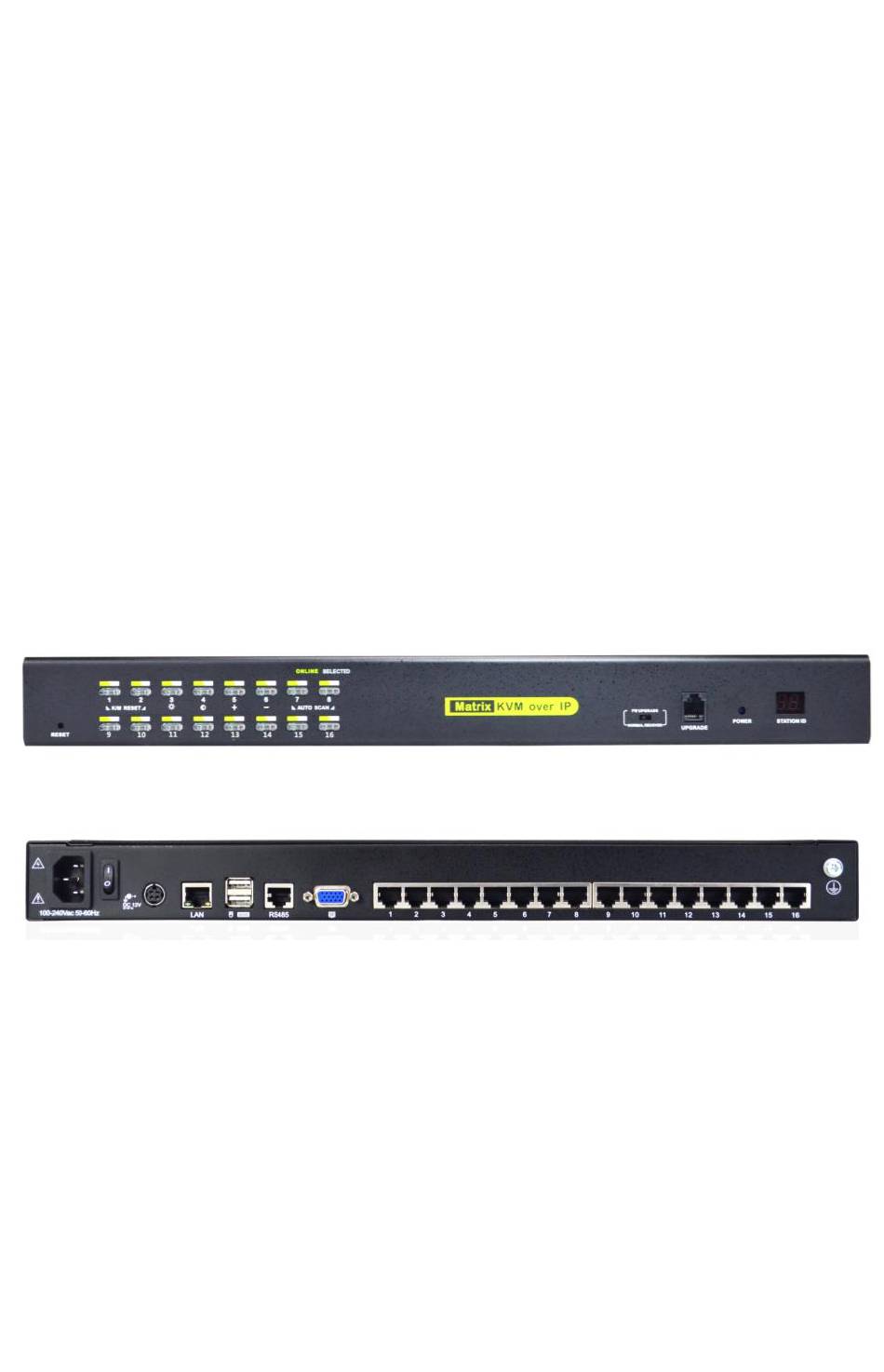

  • Page 5: Appearance

    8 Port /16 Port / 32 Port User Manual Remote Console  Adaptive 10 / 100 / 1000 Mbps network  WEB browser-based remote management  BIOS-level access  Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS ...

  • Page 6: Structure And Size

    8 Port /16 Port / 32 Port User Manual Structure and Size 1-1.2 Rear view RS485 RS485 RS485 RS485 1-1.3 Explanation Ground connecting screw Power input (AC or DC) Power Switch LAN Port USB Port RS485 Port Monitor Port PC connecting port - 6 -...

  • Page 7: Hardware Installation

    8 Port /16 Port / 32 Port User Manual 2. Hardware Installation 2.1 Rack Mounting The KVM switch will be installed in the front or rear rack cabinet. Make sure all the connecting computers as well as external device are shut down. Installation instruction: 1) Remove the front or rear screw pan head screws...
  • Page 8 8 Port /16 Port / 32 Port User Manual 3) Screw the KVM device to the rack cabinet (front or rear part) - 8 -...

  • Page 9: Kvm Installation Diagram

    8 Port /16 Port / 32 Port User Manual 2.2 KVM Installation Diagram Installation Steps: 1） Make sure the IP KVM has been connected to the ground.① 2） Connect PC or server to KVM with KVM Module and CAT5 cable according to number②...

  • Page 10: Led Operating

    8 Port /16 Port / 32 Port User Manual 3. LED Operating 3.1 Operating the Buttons Figure:3-3.1 32Port Name Functions Press this button to choose the server connected to Port Selection the corresponding port and the LED displays the pressed button number. The port indicator is built into the port selector switch.

  • Page 11: Key Combination Function

    8 Port /16 Port / 32 Port User Manual 3.3 Key combination function If you want to set other hotkeys to pop up the UI interface or key combination switch, set up via the local console, 【System Settings】> 【Device info】 .For details, see Device Information (Page: 21) Double click【L_Ctrl】...

  • Page 12: Ui Interface Operating

    8 Port /16 Port / 32 Port User Manual UI interface Operating  login UI control menu User Name：admin Password： admin After logging in the device, you can see the connection status of the device port. In the port list, 1.

  • Page 13: User

    8 Port /16 Port / 32 Port User Manual 4.1 User ser management mainly set up for adding, deleting and modifying user& user group, user password modification, user group permissions and so on. If the user do not have user management authority, the user cannot access to user management interface.

  • Page 14: User Group List

    8 Port /16 Port / 32 Port User Manual  Add user Click【add】button, the window below appears: In this window, “*” is required content User name: user name can only be low case letter, number and “_” Enter password: without strong password protection, the password can only composed of 1-16 letters, numbers or special characters(-@.$! _);...
  • Page 15 8 Port /16 Port / 32 Port User Manual Input user group name, it shows related user groups which make it convenient when you have a large number of users  Add user group Click【add】button, the window below appears 1) User group name: it contains only low case letter, number and “_” 2) Authority: mainly refers to management authority and operation authority, click show more, authority menu appears(shown in picture above), click show less, authority menu disappears...

  • Page 16: Change Password

    8 Port /16 Port / 32 Port User Manual Change password Change the User login password. In this window, “*” is required content User name: it contains only low case letter, number and “_” Enter password: without strong password protection, the password can only composed of 1-16 letters, numbers or special characters(-@.$! _);...

  • Page 17: Network Settings

    8 Port /16 Port / 32 Port User Manual Network settings ＩＰｖ４address setting:  ＩＰaddress: preset IP address  Subnet mask: Generally, it should be consistent with other devices in the network.  Default gateway: Generally, it should be consistent with other devices in the network.

  • Page 18: Date Time

    8 Port /16 Port / 32 Port User Manual Date time System time setting:  Customized time: manual setting  Synchronize with the NTP server: the system automatically updates the time according to the time - 18 -...

  • Page 19: Equipment Information

    8 Port /16 Port / 32 Port User Manual Equipment information Encoding parameters - 19 -...

  • Page 20: Security

    8 Port /16 Port / 32 Port User Manual 4.3 Security Security Settings  Login restriction: user name login restriction  Single sign on restriction: if one user name is logged in, it can no longer log in with this user name, if it is selected, you can log in with the user name ...

  • Page 21: Audit Log

    8 Port /16 Port / 32 Port User Manual  Encryption mode  Local information encryption mode: three encryption schemes and one un-encryption scheme  Encryption mode is applied to KVM and virtual media: applied when it is selected Audit log 4.4 Maintain Provide system maintenance tools such as test tools, data backup and restart - 21 -...

  • Page 22: Backup& Restore

    8 Port /16 Port / 32 Port User Manual Backup& Restore Backup: backup current system settings Restore: restore the last backup of system Factory reset: Restore to factory state (KVM must be restarted to take effect) Ping Update - 22 -...

  • Page 23: Remote Control

    8 Port /16 Port / 32 Port User Manual 5.Remote control 5.1 Configure the target server The KVM target server is the server that connected to the IP KVM Switch. Before install and use the IP KVM Switch, we need to configure the target server first. Please refer to below configuration instructions: ...
  • Page 24 8 Port /16 Port / 32 Port User Manual  Set up the display of the target server under Windows XP, Windows 2003, Windows2008 Start—>Control Panel—> [Hardware]—>Display Please follow the steps above to finish the setting.  Configure the mouse under Linux (ubuntu 10) Input “xset m 1 1”...

  • Page 25: Remote Web Interface Settings

    8 Port /16 Port / 32 Port User Manual 5.2 Remote WEB interface settings Install and open IE browser, click top-right settings→【Internet Options】 Click【Security】→【Custom Level】 - 25 -...
  • Page 26 8 Port /16 Port / 32 Port User Manual 【ActiveX controls and plugins】 Click【Advanced】, find 【Allow software to run or install even if the signature is invalid】and select it. - 26 -...

  • Page 27: Log In

    8 Port /16 Port / 32 Port User Manual 5.3 Log in Default Items Default Value User name admin Password admin IP address 192.168.1.167 Notice: For security, please change the password after the first login Differentiating between capital and lowercase letters. - 27 -...
  • Page 28 8 Port /16 Port / 32 Port User Manual After connecting the device, open the Internet explorer web browser: http:// 192.168.1.167 User Name: admin Password: admin After logging in for the first time, a prompt for loading the ActiveX will appear below the browser.
  • Page 29 8 Port /16 Port / 32 Port User Manual Edit Port Name: - 29 -...
  • Page 30 8 Port /16 Port / 32 Port User Manual Video Control Interface Menu 【Hide or Show Toolbar】 【Setting Option】 【Send Ctrl+Alt+Del】 【Mouse Synchronization】 【Single Mouse】 【Adaptive Window】 【 】 Source Video params 【Full Screen】 ）Hide or Show Toolbar When the video window starts, the toolbar is always displayed by default. Click the icon, the toolbar will automatically hide.
  • Page 31 8 Port /16 Port / 32 Port User Manual Chart 2-1  Keyboard/mouse sending setting  Send the keyboard: keyboard data can be sent to the target server through the video window so that it can control the target server’s keyboard.
  • Page 32 8 Port /16 Port / 32 Port User Manual  Full Screen Setting  Full Screen Zoom: If the “Full Screen Zoom” is disabled, the video will be displayed in the remote full screen; If the “Full Screen Zoom” is enabled and the target server’s resolution is different from the remote user computer’s resolution (the resolution of the general target server is less than the resolution of the remote user computer), the video plug-in will...
  • Page 33 8 Port /16 Port / 32 Port User Manual  IP address: KVM switch’s IP address  Refresh Rate: video refresh rate  Port number: video port number  Manual calibration resolution: when the resolution of the target server is not consistent with the resolution of the video window, it can manually calibrate the resolution after calibration ...
  • Page 34 8 Port /16 Port / 32 Port User Manual Chart 2-4 Click blank input box, virtual keyboards appears, and then key clicked on the virtual keyboard will be displayed in the input box. 3）Send ------send Ctrl+Alt+Del Keyboard Macro: click this button, the target server will receive shortcut key. Send Ctrl+Alt+Del Bring up the task manager of target server (Windows operating system) 4）Mouse Synchronization...
  • Page 35 8 Port /16 Port / 32 Port User Manual 5）Single mouse In the video window, it will hide the remote user’s mouse, and only show the target server’s mouse. 6) Source video params 7) Optimum size The initial size of the video window is 1024x768, when click this button, the video window will adjust the size of the window according to the resolution of the target server.

  • Page 36: Ip Menu Option

    8 Port /16 Port / 32 Port User Manual 6. IP Menu Option 6.1 User management User management mainly set up for adding, deleting and modifying user& user group, user name password modification, user group permissions and so on. If the user do not have user management authority, the user cannot access to user management interface.
  • Page 37 8 Port /16 Port / 32 Port User Manual  Add User Click【add】button, the window below appears: In this window, “*” is required content 1) User name: user name contains only low case letter, number and “_” 2) Enter password: without strong password protection, the password can only composed of 1-16 letters, numbers or special characters(-@.$! _);...
  • Page 38 8 Port /16 Port / 32 Port User Manual  Edit user Click【A1】, edit user window pop up - 38 -...

  • Page 39: User Group List

    8 Port /16 Port / 32 Port User Manual User group list User group list interface: list all registered users, you can see more by page turning  User group name search Input user group name, it shows related user groups which make it convenient when you have a large number of users ...
  • Page 40 8 Port /16 Port / 32 Port User Manual 2) Authority: mainly refers to management authority and operation authority, click show more, authority menu appears(shown in picture above), click show less, authority menu disappears  Port Access: Authority to access KVM, and control target server ...

  • Page 41: Change Password

    8 Port /16 Port / 32 Port User Manual Change Password The passwords which is using for logged user 1）Old passwords: The passwords you are using 2）New passwords: Without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _);...

  • Page 42: Network Setting

    8 Port /16 Port / 32 Port User Manual Network Setting ＩＰｖ４address setting:  ＩＰaddress: preset IP address  Subnet mask: Generally, it should be consistent with other devices in the network.  Default gateway: Generally, it should be consistent with other devices in the network.

  • Page 43: Date /Time Setting

    8 Port /16 Port / 32 Port User Manual Date /Time setting System time setting:  Customized time: manual setting  Synchronize with the NTP server: the system automatically updates the time according to the time server  Time zone setting: choose time zone Encoding Parameters - 43 -...

  • Page 44: Safety Management

    8 Port /16 Port / 32 Port User Manual 6.3 Safety management Security Settings  Login restriction: user name login restriction  Single sign on restriction: if one user name is logged in, it can no longer log in with this user name, if it is selected, you can log in with the user name ...

  • Page 45: Audit Log

    8 Port /16 Port / 32 Port User Manual  Encryption mode  Local information encryption mode: three encryption schemes and one un-encryption scheme  Encryption mode is applied to KVM and virtual media: applied when it is selected Audit Log 6.4 System Maintenance Provide system maintenance tools such as test tools, data backup and restart - 45 -...

  • Page 46: Backup& Restore

    8 Port /16 Port / 32 Port User Manual Backup& Restore  Backup :backup current system settings  Restore: restore the last backup of system  Factory reset: Restore to factory state (KVM must be restarted to take eff ect) Ping Host ...

  • Page 47: Equipment Management

    8 Port /16 Port / 32 Port User Manual Equipment Management Remote upgrade Provide users with better upgrade experience and continuous technical support Upgrade method: Click【browse】 and select upgrade file, upload the file to the device, then click 【upgrade】to finish upgrade - 47 -...

  • Page 48: Appendix

    8 Port /16 Port / 32 Port User Manual Appendix Model HT1108 HT1116 HT1132 Computer Connection Port selection Port selection Pushbutton, OSD menu, Web Keyboard 2x USB TYPE A Mouse Console Monitor 1-HDB-15 Female(blue) Connector KVM Port (RJ-45) Upgrading switch...

This manual is also suitable for:

Ht1116Ht1132
