KinAn KC2108 User Manual

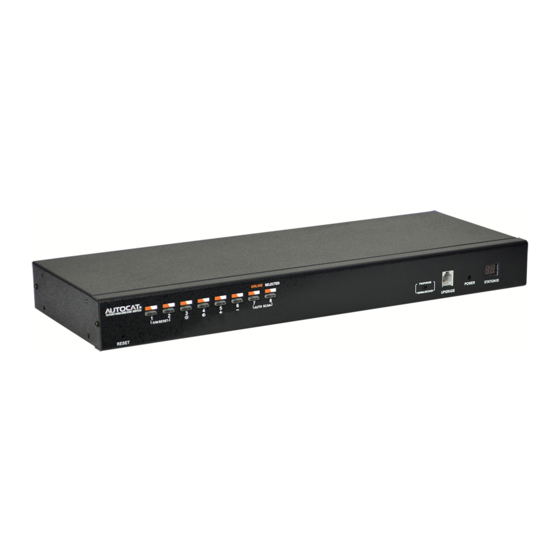

Rack mount cat5 kvm switch (8 port/16 port/32 port)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

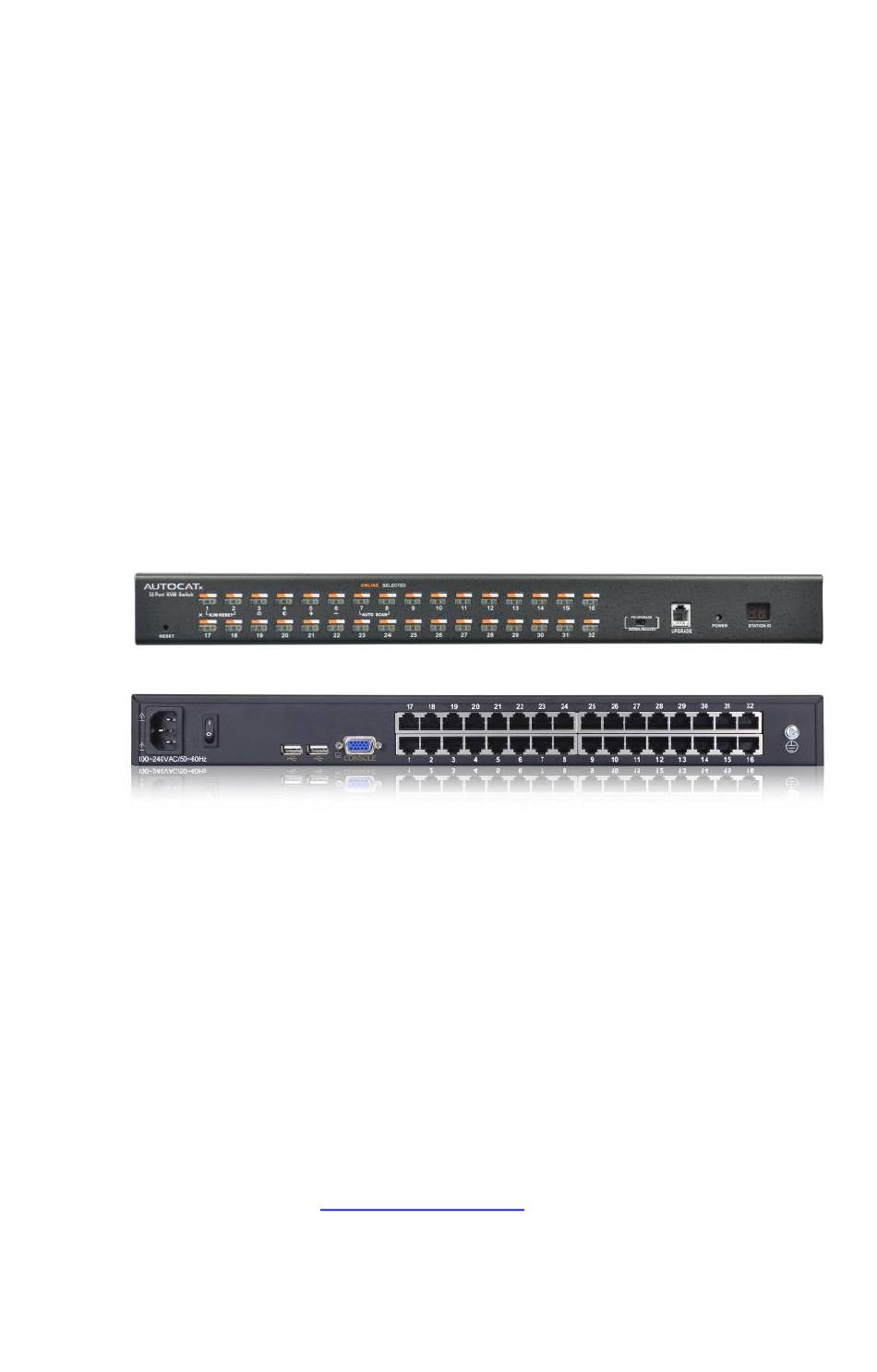

Rack Mount CAT5 KVM Switch
(8 Port/16 Port/32 Port)
User Manual
www.kinankvm.com
@all right reserved Shenzhen Kinan Technology Co., Ltd
Printing date：2018/01
Version： V3.0
- 1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC2108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KinAn KC2108

Summary of Contents for KinAn KC2108

  • Page 1 Rack Mount CAT5 KVM Switch (8 Port/16 Port/32 Port) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd Printing date：2018/01 Version： V3.0 - 1-...

  • Page 2: Table Of Contents

    8Port/16Port/32 Port User Manual CONTENTS Overview ...................... 3 Description ....................3 Features ....................3 Hardware Installation .................. 4 Rack Mounting ..................4 Cables (KVM switching module) ............... 6 Installation Instruction ................8 Operation ....................10 OSD Operation ..................12 OSD Functions ..................13 F1-ADM ....................

  • Page 3: Overview

    8Port/16Port/32 Port User Manual Overview Description CAT5 KVM switch can control multiple computers form a set of console (monitor, keyboard and mouse). It is easy and fast to install the CAT5 KVM switch; you just need to connect corresponding cables to the right ports of the CAT5 KVM and its module without software configuration.

  • Page 4: Hardware Installation

    8Port/16Port/32 Port User Manual Hardware Installation Rack Mounting The Cat5 KVM switch will be installed in the front or rear rack cabinet. Make sure all the connecting computers as well as external device are shut down. Installation instruction: 1) Remove the front or rear screw 2) Screw the bracket to the front or rear part of the KVM switch - 4 -...
  • Page 5 8Port/16Port/32 Port User Manual 3) Screw the KVM device to the rack cabinet (front or rear part) Structure and Size - 5 -...

  • Page 6: Cables (Kvm Switching Module)

    8Port/16Port/32 Port User Manual Cables (KVM switching module) PS/2 CPU module USB CPU module Table 1.3: Module LEDs Components Function Flashing green light The module is power on Power LED The module has been connected to the Green light keeps on Quickly flashing The module is communicating with the host Link LED...
  • Page 7 8Port/16Port/32 Port User Manual Rear View 100V~240V AC/47~63Hz CONSOLE 100V~240V AC/47~63Hz CONSOLE 100V~240V AC/47~63Hz CONSOLE 100V~240V AC/47~63Hz CONSOLE Explanation Ground connecting screws Power Socket Power Switch Local Console KVM Console - 7 -...

  • Page 8: Installation Instruction

    8Port/16Port/32 Port User Manual Installation Instruction Installation steps: 1） Make sure the IP KVM has been connected to the ground. 2） Connect KVM switching module to the host computer. 3） Connect KVM switching module to any available KVM port with CAT5 cable.
  • Page 9 8Port/16Port/32 Port User Manual Cascade Installation Explanation: Connect one port of the CAT5 cable to any RJ45 port of KC11/12, and connect the other port to the RJ45 port with “Chain in “of KC12 series. Repeat above operation to cascade more KVM switches 4 Port: max cascade 4 KVM switches 8 Port: max cascade 8 KVM switches 16 Port: max cascade 16 KVM switches...

  • Page 10: Operation

    8Port/16Port/32 Port User Manual Operation 1) The KVM makes two “beep” sounds after power on; an OSD window appears for you to input user name and password. 2) Below password window appears: The default user name and pass word is blank, double click 【Enter】to login and the OSD menu pops up, it’s ready to use the KVM switch.
  • Page 11 8Port/16Port/32 Port User Manual Number key special function:  Press 【1】 and 【2】 at the same time for three seconds resets the keyboard and mouse.  Press【7】and 【8】 at the same time for three seconds enters the auto scan mode. ...

  • Page 12: Osd Operation

    8Port/16Port/32 Port User Manual OSD Operation Double click the right button of the mouse or double click hotkey【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys; find more details in OSD function instructions. To access the OSD menu through keyboard: 1.In the submenus that appears, moving the highlight bar to your selected port and then press Enter.

  • Page 13: Osd Functions

    8Port/16Port/32 Port User Manual OSD Functions Menu Keys Submenu/Explanation Set User login-Set User login account and password Set accessible-Set access permissions BRC Mode -monitor multiple computers at the same time Load Default-reset the menu to the original factory default settings All-Lists all the ports on the installation Power On-lists only powered on ports that have Scan...

  • Page 14: F1-Adm

    8Port/16Port/32 Port User Manual F1-ADM  Menu Overview Operating instructions 1) Press【F1】or 【←】 【→】enters the F1 submenus. 2) Press 【↑】 【↓】moves the highlight bar to select the submenu. 3) Press 【Enter】 selects and exits ADM menu. 4) Press【Esc】cancels the operation and exits ADM menu.
  • Page 15 8Port/16Port/32 Port User Manual 2. Set Accessible—press 【Enter】 to select Set Accessible, then below menu appears: (diagram 4-1.3) Diagram 4-1.3 Menu Explanation Full access function to the station and can do any FULL operation to the ports Read only function, you can only read the port but VIEW you can’t operate it if set this function.
  • Page 16 8Port/16Port/32 Port User Manual 3. BRC Mode Off - Press [Enter] to enter the BRC mode, enter the main menu, press 【F7】 to add or delete a port that need broadcast function. When BRC mode is effect, a speaker symbol appears in QV column. (See below diagrams). While BRC mode is in effect, we can synchronous operate multiple computer ports.

  • Page 17: F2-Scan

    8Port/16Port/32 Port User Manual F2-Scan  Menu Overview Operating instruction Press【F2】or 【←】 【→】enters the F2: submenu. 2) Press 【↑】 【↓】moves the highlight bar to select the submenu. 3) Press 【 Enter 】 selects and exits Scan menu. 4) Press【Esc】cancels the operation and exits SCAN menu.

  • Page 18: F3-Set

    8Port/16Port/32 Port User Manual F3-Set  Menu Overview Operating instructions 1) Press【F3】or 【←】 【→】enters the F3 submenus. 2) Press 【↑】 【↓】moves the highlight bar to select the submenu. 3) Press【Enter】selects and exits Set menu. 4) Press【Esc】cancels the operation and exits Set menu. ...
  • Page 19 8Port/16Port/32 Port User Manual OSD Hotkey Operation Operating instruction Press 【 F3】 and move the highlight bar with 【↓】 to select “OSD Hotkey” submenu. Press 【Enter】and below screen appears: KVM default hotkey:【Scroll Lock】 2.Select the “ 【Ctrl】 【Ctrl】 + 【KVM Hotkey】 “ and press 【 Enter】 , and then the 【Ctrl】 hotkey is available in this hotkey mode, the mouse hotkey can't enter the OSD menu Invoke hotkey：double click 【L_Ctrl】...

  • Page 20: F4-Tool

    8Port/16Port/32 Port User Manual F4-Tool  Menu Overview Operating instructions 1) Press 【 F4】 or 【←】 【 →】 enters the F4 submenus. 2) Press 【↑】 【 ↓】moves the highlight bar to select the submenu. 3) Press【Enter】 selects and exits Tool menu. 4) Press 【...

  • Page 21: F6-Edit Port Names

    8Port/16Port/32 Port User Manual F6-Edit port names  Select the port with【↑】 【↓】 key;  Press F6 and key in the new name or modify the old one, then press Enter to save the name and exit editing.  Press 【Esc】to cancel and exit the editing.

  • Page 22: Cascade Function

    8Port/16Port/32 Port User Manual Cascade Function 1. Operate the host computer under cascade Enter Diagram 4-1.5 Diagram 4-1.6 Explanation: Shows that we have already connected an 8 port KVM to port 2(see diagram 4-1.5), we can connect 8 computers to the 8 port KVM. Press 【 Pa UP】 to select port on current station, then press 【Enter】to operate the port.
  • Page 23 8Port/16Port/32 Port User Manual OSD Factory Default Settings Settings Default values 【Scroll Lock 】 【Scroll Lock 】 OSD hotkey 【 Enter】 Default ADM user name 【 Enter】 Default ADM password Port display duration 5 seconds Port display mode Port No. port name Port name SYSTEM Scan duration...

  • Page 24: Usb Keyboard Emulation

    8Port/16Port/32 Port User Manual USB Keyboard Emulation Mac keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the below table: PC keyboard MAC keyboard [Shift] Shift [Ctrl] Ctrl L_Win &...

  • Page 25: Sun Keyboard

    8Port/16Port/32 Port User Manual Sun keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Sun keyboard when the control key [L_Win] is used in conjunction with other keys. The corresponding functions are shown in the below table: PC keyboard Sun keyboard L_Win&L_Alt...

  • Page 26: Appendix

    8Port/16Port/32 Port User Manual Appendix Specifications Model KC2108 KC2116 KC2132 Direct 1024 Front panel pushbuttons, keyboard hotkeys, Port Selection OSD (On-Screen Display) Monitor 1x HDB-15 Female(blue) Console Keyboard 2x USB TYPE A Mouse Connector KVM port (RJ45) Upgrading switch 1x RJ11 Female...

  • Page 27: Faq

    8Port/16Port/32 Port User Manual 1.There is no image after open up. Solutions: 1) Check the power LED, if it is not keeps on, check the 220V power input. 2) Make sure the monitor is connected and power on. 2.No password window pops up after boot, there is no response from the keyboard Solutions: 1)Make sure the keyboard is OK.
