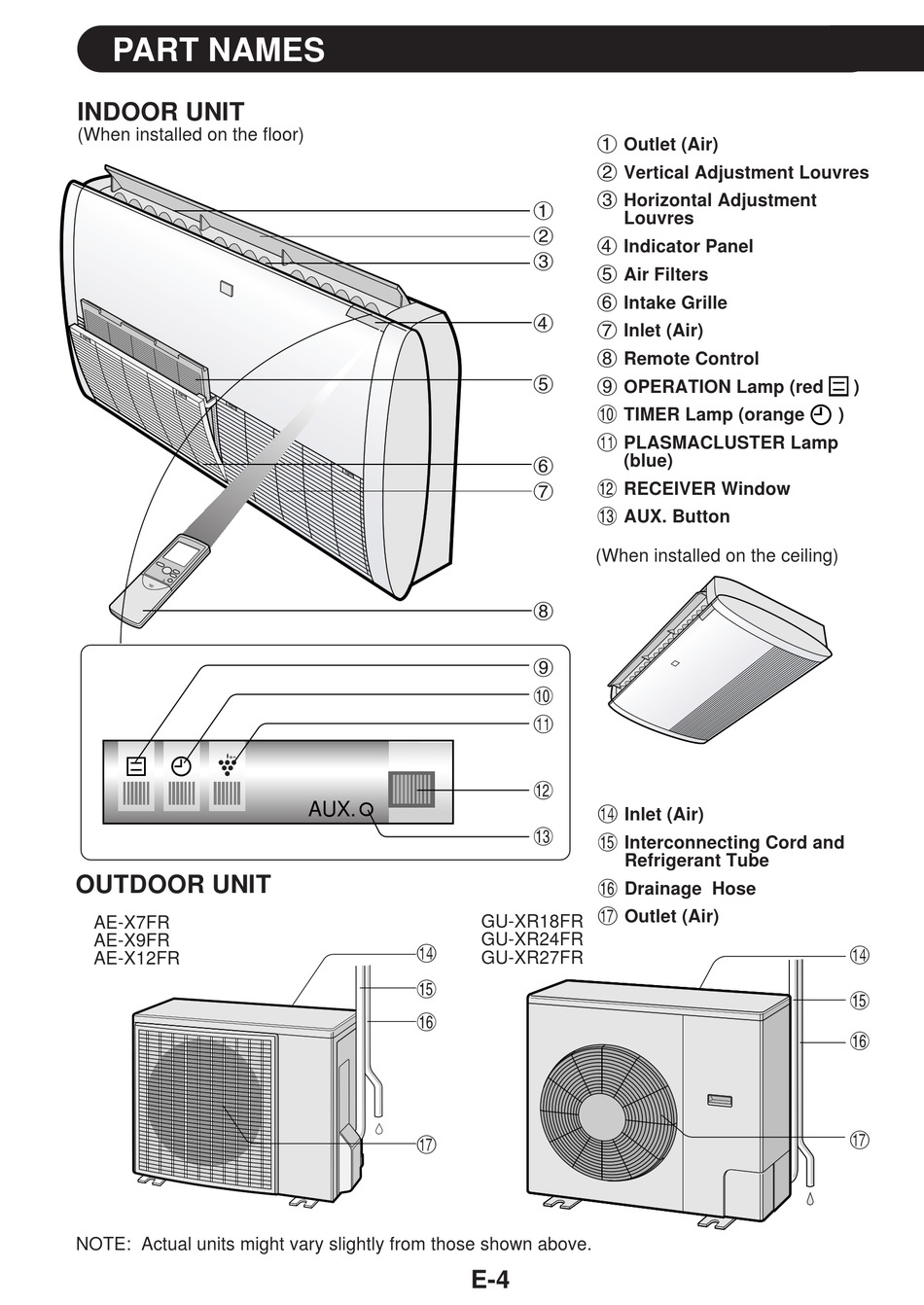

PART NAMES

INDOOR UNIT
(When installed on the floor)
OUTDOOR UNIT
AE-X7FR
AE-X9FR
AE-X12FR
NOTE: Actual units might vary slightly from those shown above.
AUX.
GU-XR18FR
GU-XR24FR
r
GU-XR27FR
t
y
u
E-4
1 Outlet (Air)
2 Vertical Adjustment Louvres
3 Horizontal Adjustment
1
Louvres
2
4 Indicator Panel
3
5 Air Filters
6 Intake Grille
4
7 Inlet (Air)
8 Remote Control
5
9 OPERATION Lamp (red
0 TIMER Lamp (orange
q PLASMACLUSTER Lamp
(blue)
6
w RECEIVER Window
7
e AUX. Button
(When installed on the ceiling)
8
9
0
q
w
r Inlet (Air)
e
t Interconnecting Cord and
Refrigerant Tube
y Drainage Hose
u Outlet (Air)
)
)
r
t
y
u
