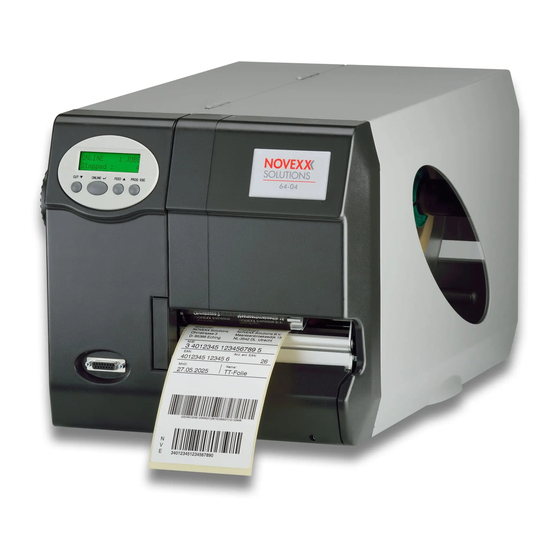

Novexx Solutions 64 Series User & Service Manual
  1. Manuals
  2. Brands
  3. Novexx Solutions Manuals
  4. Printer
  5. 64- series
  6. User & service manual

Novexx Solutions 64 Series User & Service Manual

Hide thumbs Also See for 64 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
10/14 Rev. 03
Technical Data
Device Types, Use ........................................ 1
Printer names ............................................ 1
64-0x Basic ............................................... 1
64-0x Peripheral ........................................ 1
64-0x Dispenser M .................................... 2
64-0x Dispenser A ..................................... 2
Options 64-0x Gen. 2 .............................. 2
Options 64-0x Gen. 3 .............................. 3
Technical Specifications ............................... 5
Dimensions ............................................... 5
Performance data ...................................... 6
Label material ............................................ 8
Ribbon ....................................................... 9
USER/SERVICE MANUAL
64-xx Gen. 2/3
Automatic ribbon economy ........................ 9
Connections, device data ........................10
Ambient conditions ..................................10
Interfaces 64-0x Gen. 2 ..........................11
Interfaces 64-0x Gen. 3 ..........................11
Electronics 64-0x Gen. 2 ........................12
Electronics 64-0x Gen. 3 ........................12
Operation features ...................................12
Certificates and Markings ........................13
Appendix .....................................................14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 64 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Novexx Solutions 64 Series

Summary of Contents for Novexx Solutions 64 Series

  • Page 1: Table Of Contents

    10/14 Rev. 03 USER/SERVICE MANUAL 64-xx Gen. 2/3 Technical Data Device Types, Use ........1 Automatic ribbon economy ......9 Printer names ..........1 Connections, device data ......10 64-0x Basic ..........1 Ambient conditions ........10 64-0x Peripheral ........1 Interfaces 64-0x Gen. 2 ......11 64-0x Dispenser M ........

  • Page 2: Device Types, Use

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Device Types, Use Printer names 64-0x The x in the printer name is a placeholder for the numbers 4, 5, 6 or 8. The higher this number is, the wider label material can be used with this printer (roughly, the number equals the max.

  • Page 3: 64-0X Dispenser M

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 64-0x Dispenser M • Basic equipment as 64-0x Peripheral • Additional features: Dispensing edge and internal backing paper rewinder • Dispensing of self-adhesive labels after printing; the backing paper is wound up inside of the printer.

  • Page 4: Options 64-0X Gen. 3

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 • Online Verifier: The online verifier (OLV) checks printed bar code immediately af- ter printing it. If the bar code has not been printed or has not been printed in a read- able way, the OLV stopps the printer.
  • Page 5 10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 • External control panel [1] Right: External control panel. An external control panel [1] can be connected in addition to the integrated control panel. An external control panel is useful if the standard control panel is difficult to access due to the position in which the unit is installed (min.

  • Page 6: Technical Specifications

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Technical Specifications Dimensions [2] Dimensions of the 64-xx series standard printers. Refer to the following table for the values. W(idth) / H(eight) / D(epth) / Weight Printer in kg 64-04/05 20.0 64-04/05 with cutter 21.5...

  • Page 7: Performance Data

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Performance data Print technology Thermal direct printing, thermal transfer printing Printhead "Corner Edge“ type Resolution 12 dots/mm (300 dpi Print speed Print speed Print speed Printer (mm/s) (inch/s) 64-04/05 50 to 406 2 to 16 64-06 50 to 359...
  • Page 8 10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 • Gap detection Self-initialising light transmission sensor, optional reflex sensor (at the bottom side of the material). • Correction of gap displacement in feed direction is possible by modifying the gap offset (parameter PRINT PARAMETERS >...

  • Page 9: Label Material

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Bar codes Codabar Code 128 A, B, C Code 128 Code 128 UPS Code 128 pharmacy Code 2/5 matrix Code 2/5 interleaved EAN 13 add-on 2 Code 2/5 5-line EAN 13 add-on 5 Code 2/5 interleaved ratio 1:3 EAN 128 Code 2/5 matrix ratio 1:2,5...

  • Page 10: Ribbon

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 • Label roll Max. outer-Ø: 210 mm • Inner-Ø: 38/76/102 mm (1,5/3/4”) Roll weight Printer Roll weight 64-04/05 4250 g 64-06 5000 g 64-08 7200 g [Tab. 6] Max. admissible material roll weights. Ribbon •...

  • Page 11: Connections, Device Data

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 The effect of ribbon saving depends on the print speed. The reason for this is the up and down movement of the print head as well as the acceleration and slowing-down of the ribbon.

  • Page 12: Interfaces 64-0X Gen. 2

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Noise 70 dB(A) Protection category IP 21 Interfaces 64-0x Gen. 2 • Serial Interface (Com1) – RS 232 or RS 422/485; selection via parameter menu – Max. baud rate 115200 •...

  • Page 13: Electronics 64-0X Gen. 2

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Electronics 64-0x Gen. 2 Processor 64 Bit IDT MIPS 16 MB (extendable to max. 144 MB) 2 MB Plugin cards 1 slot for CompactFlash T1 up to max. 128 MB Realtime clock optional Signal interface...

  • Page 14: Certificates And Markings

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Certificates and Markings CE, TÜV-Mark, TÜV -Mark, FCC, GOST, CCC The regulation EN 55022 demands for class A devices the following text to be printed in the manual: „WARNING: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.“...

  • Page 15: Appendix

    10/14 Rev. 03 USER/SERVICE MANUAL Technical Data 64-xx Gen. 2/3 Appendix Important distances to the print line Distance print line to Punch sensor (light transmission) 16.0 Punch sensor (reflex) 16.0 Punch sensor (Full-Size) 67.8 Dispensing edge (long) 39.8 Dispensing edge (short) 24.2 [Tab.
