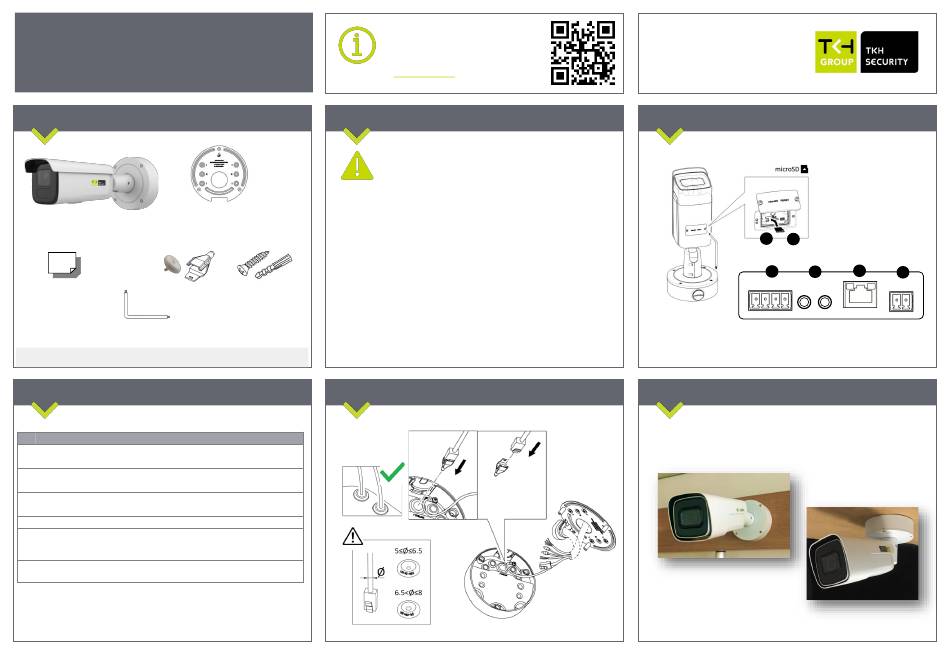

TKH security BL2026M Quick Start Manual

BL2026M

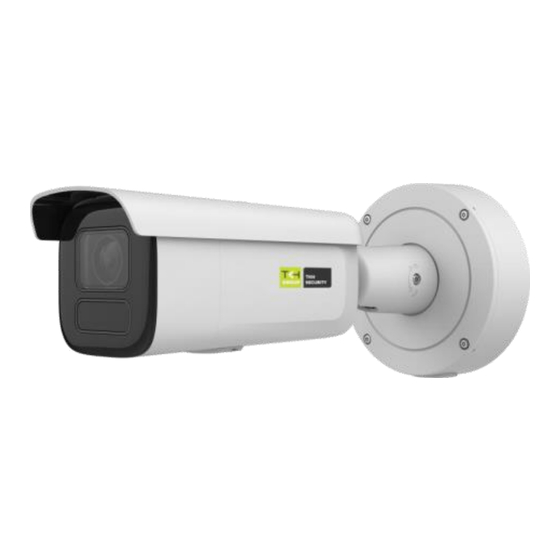

6MP IP Bullet camera, 5x motor zoom
Quick Start Guide
Unpack
Mounting Adapter
Camera Unit
Quick Start Guide CAT-6 RJ45 conduit
& Pin pusher
Security Torx
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector Definition
1 Alarm I/O Alarm I/O connection
2 Audio I/O Line In and Line Out connection
For network and PoE connections. Please
3 RJ-45 Port
contact Siqura for a compatible PoE injecter.
4 Power(DC 12V) Power Connection
Insert the SD card into the card slot to store
5 Micro SD Card Slot videos and snapshots. Do not remove the SD
card when the camera is powered on.
To restore camera to factory defaults, power
6 Reset Button
up with Reset button pressed for at least 10s.
Table 1 Connector definition
© TKH Security B.V. 2024 | Version 1 (20240529) | BL2026M-QS-EN
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
Installation Notices
Caution installation shall be performed by qualified
personnel only. Installation shall be in accordance with
local procedures. The camera contains batteries.
Battery replacement shall not be applied in view of the
risk of explosion. Dispose of used batteries according to
the instructions.
For "PoE" input connection, use only with UL listed
I.T.E. with "PoE" output. Description for the "PoE" is
intended to be connected to not exposed (outside plant)
networks or equivalent statement in installation
instructions.
Screws(4x) &
Plastic Screw
Anchors (4x)
Camera Cabling
Figure 2 Cabling
Connectors
5
6
3
1 2
Figure 1 Camera Connectors
Waterproof Notice
Bullet camera is suggested to be mounted either by
wall/pole mount or ceiling mount. Other mounting may
cause potential water leakage at camera, which is not
covered in warranty.
Figure 3 Wall/Pole Mount
Figure 4 Ceiling Mount
4
