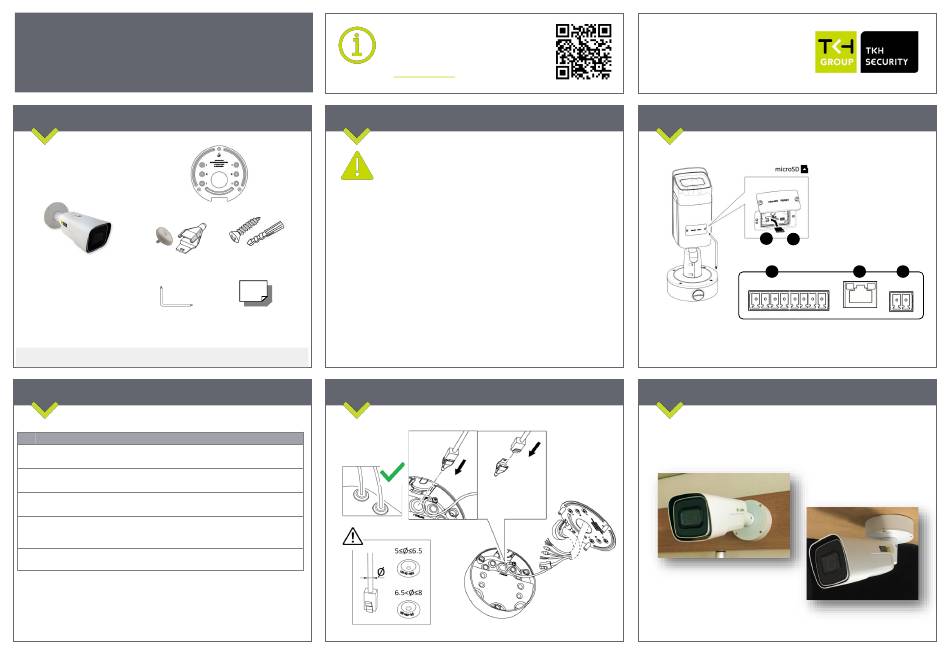

TKH security BL2002v2LPR Quick Start Manual

BL2002v2LPR
2MP ANPR Network Camera
Quick Start Guide
Unpack
Mounting Adapter
CAT-6 RJ45 conduit
& Pin pusher

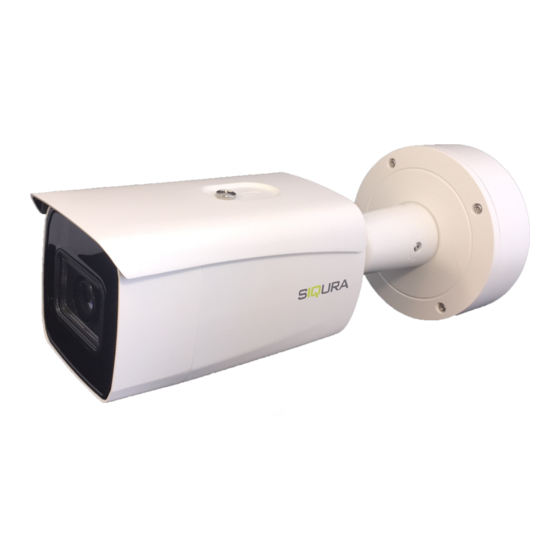

Camera Unit
Security Torx
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector Definition
1 Alarm I/O Alarm I/O connection
For network and PoE connections. Please
2 RJ-45 Port
contact Siqura for a compatible PoE injecter.
3 Power(DC 12V) Power Connection
Insert the SD card into the card slot to store
4 Micro SD Card Slot videos and snapshots. Do not remove the SD
card when the camera is powered on.
Press the button with a proper tool for at least
5 Reset Button
20 seconds to restore the system.
Table 1 Connector definition
© TKH Security B.V. 2021 | Vision 1 (20210825) | BL2002v2LPR QSG
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
CAUTION INSTALLATION SHALL BE PERFORMED BY
QUALIFIED PERSONNEL ONLY. INSTALLATION SHALL BE IN
ACCORDANCE WITH LOCAL PROCEDURES. THE CAMERA
CONTAINS BATTERIES. DO NOT REPLACE IN RISK OF
EXPLOSION.
BATTERY REPLACEMENT SHALL NOT BE APPLIED IN VIEW
OF THE RISK OF EXPLOSION. LE REMPLACEMENT DES
PILES NE DOIT PAS
D'EXPLOSION. DISPOSE OF USED BATTERIES ACCORDING
TO
BATTERIES
INSTRUCTIONS..
Screws(4x) &
Plastic Screw
FOR "PoE" INPUT CONNECTION, USE ONLY WITH UL
LISTED I.T.E WITH "PoE" OUTPUT. DESCRIPTION FOR THE
Anchors (4x)
"PoE" IS INTENDED TO BE CONNECTED TO NOT EXPOSED
(OUTSIDE
STATEMENT IN INSTALLAION INSTRUCTIONS.
Quick Start Guide POUR LA CONNEXION DâÇÖENTREE "PoE", UTILISER
UNIQUEMENT AVEC UN I.T.E. LISTE AVEC UNE SORTIE
"PoE". LA DESCRIPTION DE "POE" EST CONÇUE POUR
ÊTRE CONNECTÉE À DES RÉSEAUX OR NON ÉNONCÉS
(INSTALLATIONS
INSTRUCTIONS D'INSTALLATION DE L'INSTALLATION.
Installation Notices
ÊTRE APPLIQUÉ AU RISQUE
THE INSTRUCTIONS. METTRE AU REBUT
USAGÉES CONFORMÉMENT
PLANT) NETWORKS OR EQUIVALENT
EXTÉRIEURES), DANS
Camera Cabling
Figure 2 Cabling
Connectors
LES
4
AUX
1
Figure 1 Camera Connectors
LES
Waterproof Notice
Bullet camera is suggested to be mounted either by
wall/pole mount or ceiling mount. Other mounting may
cause potential water leakage at camera, which is not
covered in warranty.
Figure 3 Wall/Pole Mount
5
2 3
Figure 4 Ceiling Mount
