TKH security BL2005v2M Quick Start Manual

BL2005v2M

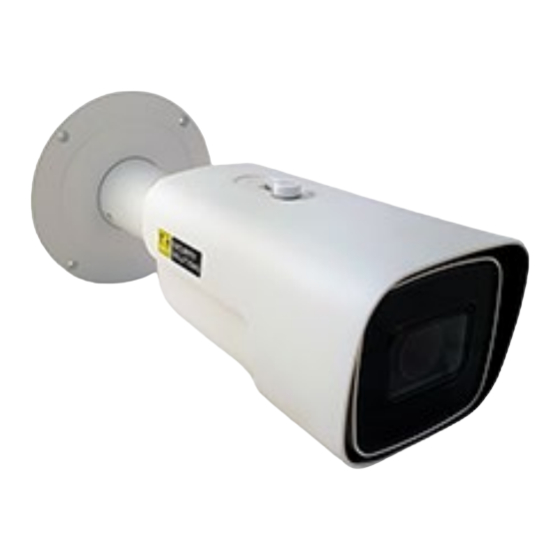

5MP Vandal Bullet Camera
Quick Start Guide
Unpack
Mounting Adapter
CAT-6 RJ45 conduit
Camera Unit & Pin pusher
Security Torx
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector Definition
1 Alarm I/O Alarm I/O connection
2 Audio I/O Line In and Line Out connection
For network and PoE connections. Please
3 RJ-45 Port contact TKH Security for a compatible PoE
injector.
4 Power (DC 12V) Power Connection
Insert the SD card into the card slot to store
5 Micro-SD Card Slot videos and snapshots. Do not remove the SD
card when the camera is powered on.
Press the button with a proper tool for at least
6 Reset Button
20 seconds to restore the system.
Table 1 Connector definition
© TKH Security B.V. 2021-2022 | Version 2 (20221223) | BL2005v2M QSG
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
Caution installation shall be performed by qualified
personnel only. Installation shall be in accordance
with local procedures. The camera contains batteries.
Battery replacement shall not be applied in view of
the risk of explosion. Dispose of used batteries
according to the instructions.
For "PoE" input connection, use only with UL listed
I.T.E. with "PoE" output. Description for the "PoE" is
intended to be connected to not exposed (outside
Screws(4x) &
plant) networks or equivalent statement in installation
instructions.
Plastic Screw
Anchors (4x)
Quick Start Guide
Installation Notices
Camera Cabling
Figure 2 Cabling
Connectors
5
6
1 2 3
Figure 1 Camera Connectors
Waterproof Notice
Bullet camera is suggested to be mounted either by
wall/pole mount or ceiling mount. Other mounting may
cause potential water leakage at camera, which is not
covered in warranty.
Figure 3 Wall/Pole Mount
Figure 4 Ceiling Mount
4
