Summary of Contents for Nice BiDi-Shutter

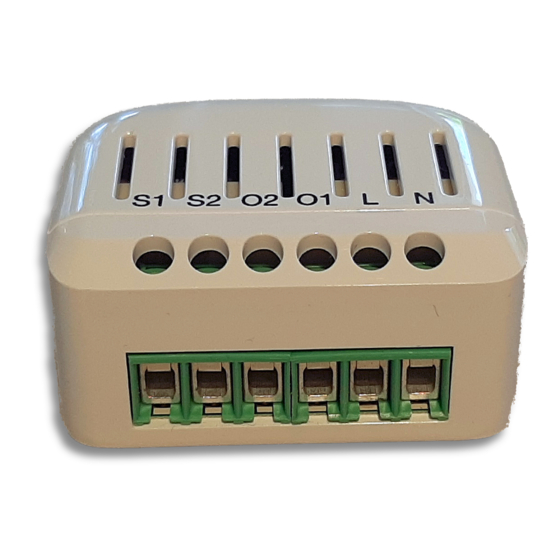

- Page 1 Nice BiDi-Shutter Interior bidirectional interface for tubular motor EN - Instructions and warnings for installation and use...
-
Page 2: Warnings And General Precautions
• The BiDi-Shutter control unit has been especially designed for insertion in a junction box or wall box; its housing does not feature any protection against water and only basic protection against contact with solid parts. Never place the BiDi-Shutter in inadequately protected environments. - Page 3 3.4 - Power supply The electric power supply of the control unit must be connected by means of terminals L and N (Live, Neutral). The BiDi-Shutter control unit can operate with supply voltage of 100 to 240 Volts and frequency of 50 or 60 Hz.
- Page 4 4.2 - Memorising transmitters in Mode I When there is no transmitter memorised, the first can be memorised during startup according to the following procedure. Table A2 - Memorising first transmitter during startup in Mode I Example 01. Connect the control unit to the power mains, confirmed by 2 red flashes. 02.
- Page 5 4.3 - Mode II In Mode II each key of the transmitter can be associated with one of 10 possible commands (table A5); for example, one automation can be controlled with just one key memorised for the Step-by-step command, while the other keys are left free for control of other automations. In Mode II one memorisation phase is performed for each key and each occupies one location in the memory.
- Page 6 09. Press key n (or second channel) of the transmitter to set Up limit position. 10. The programming procedure concludes automatically 5.2 - Partial positions The BiDi-Shutter control unit enables setting a quickly accessible partial positions. Partial positions work only with transmitters memorized in Mode I. Table A11 - Available partial positions Nº...
- Page 7 To set new position for 1st partial position, proceed as described below. Table A12 - Setting 1st partial position Example 01. Press and hold the programming pushbutton (fig. 1). 02. Release the programming pushbutton (fig. 1) when the LED illuminates with white color (5th position). 03.
- Page 8 5.5 - Venetian blinds The BiDi-Shutter control unit enables the control of slats for Venetian blinds. When the Venetian blinds control is enabled, pressing s/S1 or t/ S2 will move the slats by 20% and the normal Up and Down maneuvers must be performed by pressing and holding the corresponding keys.
-
Page 9: Deleting Transmitters
Table A18 - Setting response to Wind ON command Example 01. Press and hold the programming pushbutton (fig. 1). 02. Release the programming pushbutton (fig. 1) when the LED illuminates with green color (4th position). 04. Press key of the transmitter to select response to Wind ON command: •... -
Page 10: Technical Specifications
The product BiDi-Shutter is produced by Nice S.p.a. (TV). Warnings: - All technical specifications stated in this section refer to an ambient temperature of 20 °C (± 5 °C) - Nice S.p.a. reserves the right to apply modifications to the product at any time when deemed necessary, while maintaining the same functionalities and intended use. - Page 11 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
