Nice BiDi-Shutter Instructions And Warnings For Installation And Use

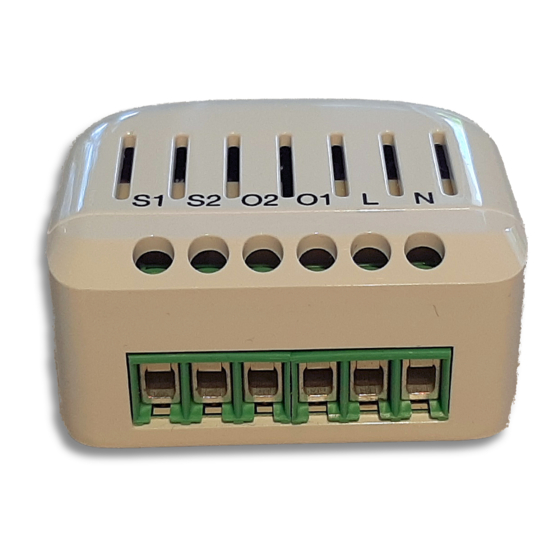

Interior bidirectional interface for tubular motor
Hide thumbs Also See for BiDi-Shutter:

Advertisement

Quick Links

Download this manual
BiDi-Shutter
Interior bidirectional interface
for tubular motor
EN - Instructions and warnings for installation and use
v1.5

Advertisement

loading
Need help?

Need help?

Do you have a question about the BiDi-Shutter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nice BiDi-Shutter

Summary of Contents for Nice BiDi-Shutter

  • Page 1 BiDi-Shutter Interior bidirectional interface for tubular motor EN - Instructions and warnings for installation and use v1.5...

  • Page 2: Warnings And General Precautions

    The BiDi-Shutter control unit enables the control of a mains-powered, single-phase asynchronous motor, with connection types: Down, Com- mon, Up, used for the automation of awnings, rolling shutters, Venetian blinds and similar. The BiDi-Shutter control unit incorporates a radio transceiver operating at the frequency of 433.92 MHz with rolling code technology to guaran- tee optimal safety levels.

  • Page 3: Technical Specifications

    BiDi-Shutter is produced by Nice S.p.A. (TV). Warning All technical specifications stated in this section refer to an ambient temperature of 20 °C (± 5 °C). Nice S.p.A. reserves the right to modify the product when necessary, while maintaining the same functionalities and intended use.
  • Page 4 4.4 - Power supply The electric power supply of the control unit must be connected through terminals L and N (Live, Neutral). The BiDi-Shutter control unit can operate with supply voltage of 100 to 240 V and frequency of 50 or 60 Hz.
  • Page 5 5.2 - Memorising transmitters in Mode I When there is no transmitter memorised, the first one can be memorised during a startup phase according to the following procedure. Table A4 - BiDi-Shutter - Memorising first transmitter during startup in Mode I Nº...
  • Page 6 If another key is to be assigned a command on the same transmitter, a new memorisation phase needs to be performed for that specific key. CAUTION! – For the partial positions to work correctly, you need to perform the calibration procedure (see chapter 6.1). Table A6 - BiDi-Shutter - Memorisation in Mode II Nº Command Step-by-step (Up-Stop-Down-Stop...
  • Page 7 Table A7 - BiDi-Shutter - Memorising first and other transmitters in Mode II Nº Description Example Press and hold the programming pushbutton (Figure 1). Release the programming pushbutton (Figure 1) when the LED glows with orange (2 position). Press the programming pushbutton (Figure 1) the number of times required for the particular com-...
  • Page 8 CAUTION! – Before the calibration, set the shutter to the middle position. CAUTION! – There is a fixed operation time of 240 s when module isn't calibrated. To perform automatic calibration, follow the steps from the table below: Tabel A9 - BiDi-Shutter - Automatic calibration Nº Description Example Press and hold the programming pushbutton (Figure 1).
  • Page 9 6.2 - Partial positions The BiDi-Shutter control unit enables setting the quick-access partial positions. The partial positions only work with transmitters memorised in mode I. Table A11 - BiDi-Shutter - Available partial positions Nº Press at the same time to activate...
  • Page 10 6.3 - Virtual Limit Switch If needed, you can set a virtual limit switch and limit the shutter/blind/awning movement to the specified position (range). Table A14 - BiDi-Shutter - Setting a virtual limit switch Nº Description Example Bring the shutter/awning to your desired position (virtual limit switch).
  • Page 11 6.6 - Climatic sensors The control unit supports Nice radio mono and bidirectional climatic sensors. Memorisation of a climatic sensor must be carried out like that of a normal transmitter (follow the procedure in table A5). Thresholds for commands must be programmed on the climatic sensor.
  • Page 12 Table A17 - BiDi-Shutter - Shutter, Awning and Venetian Blinds Mode - Wind / No wind Nº Wind status Shutter Mode Awning mode Venetian Blinds Mode WIND Up (default) / Down Up & Lock Up + Lock NO WIND No activity...
  • Page 13 Table A20 - BiDi-Shutter - Setting response to the Wind ON command Nº Description Example Press and hold the programming pushbutton (Figure 1). Release the programming pushbutton (Figure 1) when the LED glows with green (the 4 position). Press the key of the transmitter to select a response to the Wind ON command: •...
  • Page 14 LED SIGNALS 7.1 - Programming menu When pressing and holding the programming pushbutton on the control unit, the LED signals consecutive positions of the programming menu. Table A23 - BiDi-Shutter - Menu positions when holding the programming pushbutton Nº Color Description...

  • Page 15: Product Disposal

    CAUTION! – Local legislation may envisage serious fines in the event of abusive disposal of this product. DECLARATION OF CONFORMITY Nice S.p.A. declares that the radio equipment type BiDi-Shutter complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at: http://www.niceforyou.com/en/support...
  • Page 16 Nice S.p.A. Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
