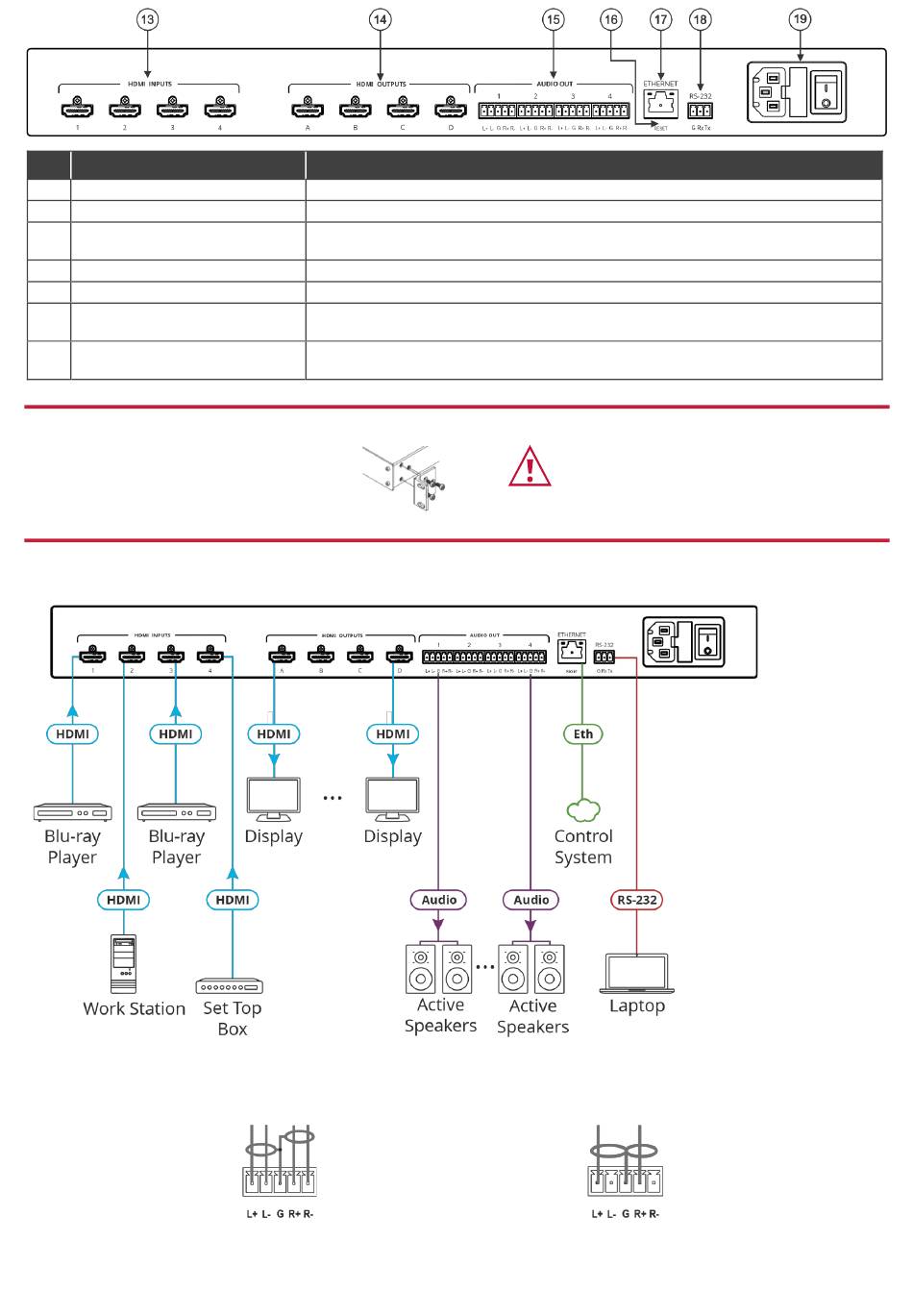

Feature
13
HDMI INPUT Connectors
14
HDMI OUTPUT Connectors
15
AUDIO OUT 5-pin Terminal
Block Connector
16
RESET Recessed button
17
ETHERNET Connector
18
RS-232 3-pin Terminal Block
Connector
19
Mains Power Connector, Fuse
and Switch
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount VSM-4x4X
To rack mount the machine, attach both rack ears
(by removing the screws from each side of the
machine and replacing those screws through the
rack ears) or place the machine on a table.
Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your VSM-4x4X.
Connecting the audio output
To a balanced stereo audio
acceptor:
Function
Connect to the HDMI sources (from 1 to 4).
Connect to HDMI acceptors (from A to D).
Connect to a balanced audio source (from 1 to 4).
Press and hold while powering on the device to reset to factory default parameters.
Connect to the PC or other Serial Controller through computer networking.
Connect to the PC or a remote controller.
Connect to the mains supply and use the switch to turn the unit on or off.
To an unbalanced stereo
audio acceptor:
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
