VSM-4x4A Quick Start Guide
Scan for full manual
Step 1: Check what's in the box

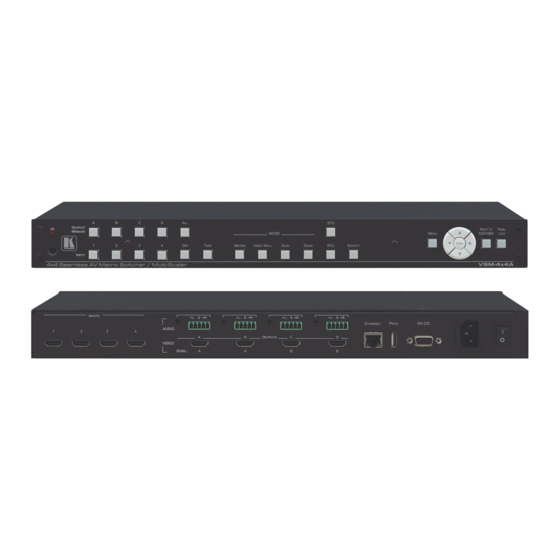

VSM-4x4A 4x4 Seamless AV Matrix Switcher/Multi-Scaler
IR remote control transmitter with batteries

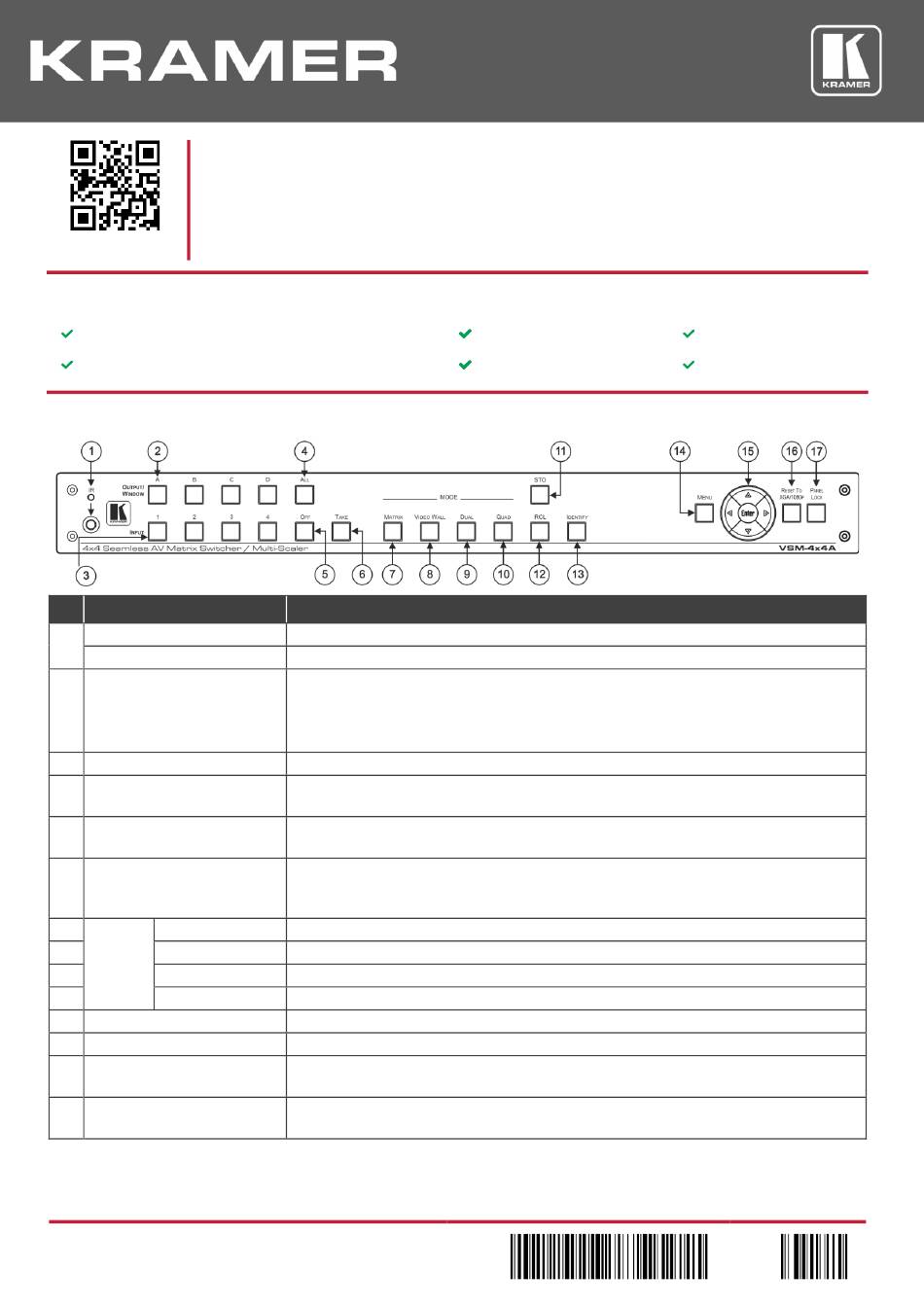

Step 2: Get to know your VSM-4x4A
# Feature
1 IR LED
IR Receiver
2 OUTPUT/WINDOW Selector
Buttons
3 INPUT Selector Buttons
4 ALL Button
5 OFF Button
6 TAKE Button
7 MODE MATRIX
Buttons
8 VIDEO WALL
9 DUAL
10 QUAD
11 STO Button
12 RCL Button
13 IDENTIFY Button
14 MENU
VSM-4x4A Quick Start (P/N: 2900-300668QS REV 1)
Function
Lights when the unit accepts IR remote commands
Receives signals from the remote control transmitter
MATRIX mode: select the output to which the input is switched (A, B, C or D)
VIDEO WALL mode: not used
DUAL mode: select one of the two DUAL windows: A or B for DUAL A; C or D for DUAL B
QUAD mode: not used
Press to select an HDMI input (from 1 to 4) to switch to the output
Press ALL followed by an INPUT button to connect that input to all the outputs (not available for
the video wall mode)
Press after pressing an output button to disconnect the selected output from the inputs. To
disconnect all the outputs, press ALL followed by OFF
Press to toggle between the Confirm mode (when in the Confirm mode, the TAKE button lights )
and the At Once mode. When in TAKE mode, front panel buttons actions are implemented after
pressing the TAKE button
Press to operate the system as a matrix switcher
Press to operate as a 2x2 or 1x4 video wall
Press to operate as a 4x2 switcher with PIP capabilities
Press to display all four inputs on each of the outputs
Press to store a configuration
Press to recall a configuration
Press to indicate on each output, which input is displayed on the output. The display time is set
via the OSD menu
Press to access the OSD menu, exit the OSD menu and, when in the OSD menu, move to the
previous level in the OSD screen
P/N:
1 Set of rack ears
1 Power cord
2900- 300668QS
4 Rubber feet
1 Quick start guide
Rev:
1
