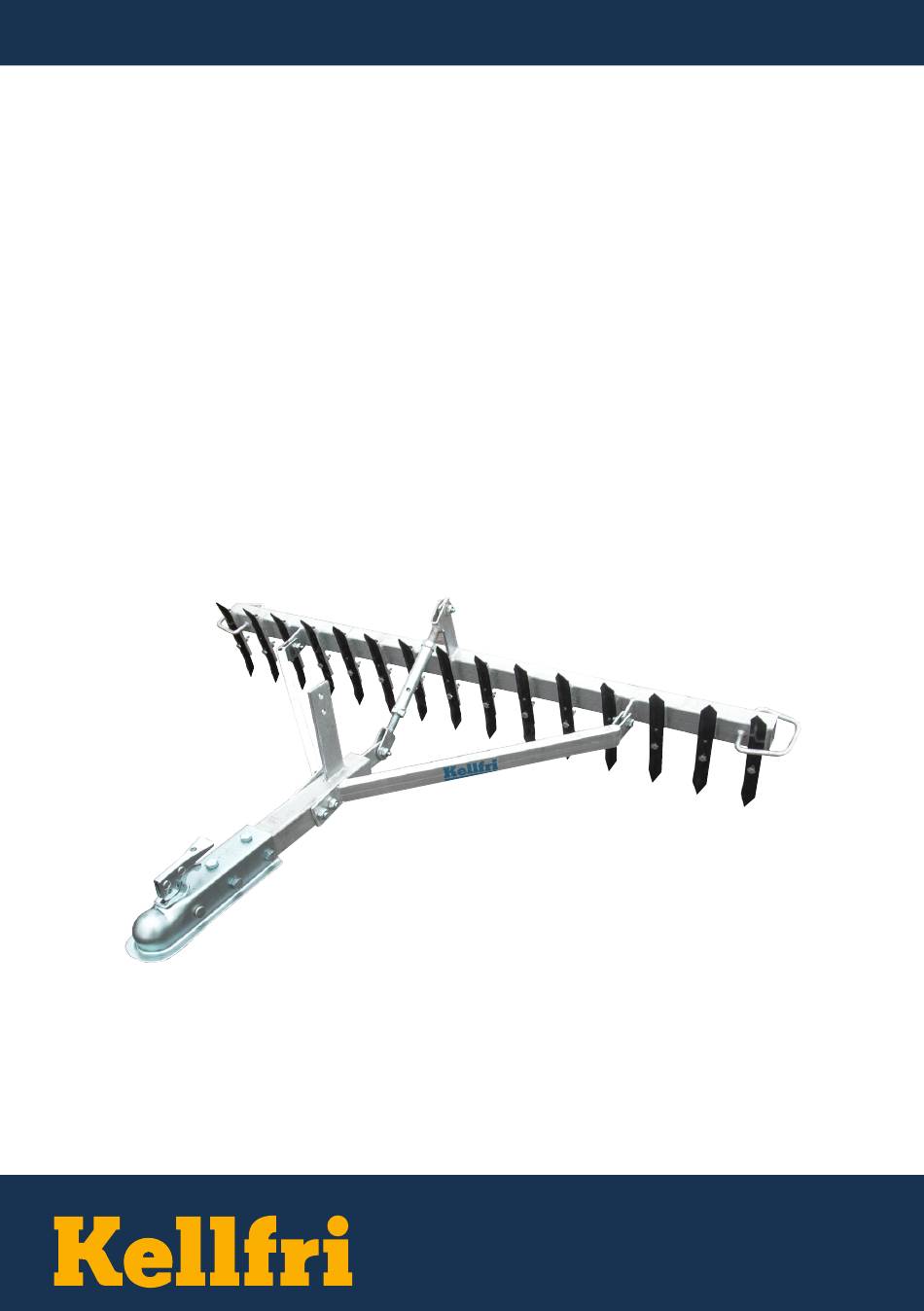

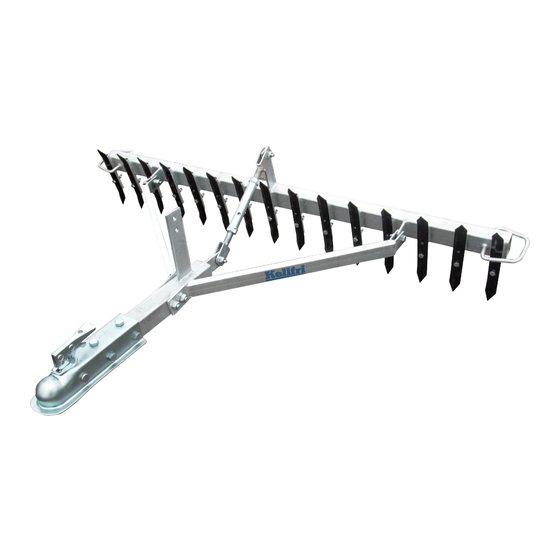

- Page 1 27-K14 ATV RAKE Read this manual carefully before using the product! Translated from the original...
-
Page 2: Table Of Contents
Assembly Warranty terms and conditions Kellfri designs and delivers efficient and affordable machines and components for forestry, agriculture, construction and gardening in Sweden and the rest of the Nordic region and Europe. We recommend that you alway s read and follow the safety information and instructions in the machine’s instruction manual. -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. Compliance with the general safety instruc- tions, instruction manual and sound common sense will guarantee many years of enjoyment using the product. Kellfri’s equipment and products are aimed at self-employed farmers who have stringent performance demands. -
Page 4: Product Safety Instructions
PRODUCT SAFETY INSTRUCTIONS Read through the tractor/ATV’s operating manual before starting work. • Always check that the performance of the implement and towing vehicle combination guarantees safety and functionality. • Do not drive up slopes that are too steep to drive up. •... -
Page 5: Steps Before Use
STEPS BEFORE USE Read the safety instructions and the operating instructions carefully. Make sure that you un- derstand the safety instructions, operating instructions and warning decals. Use common sense when using the product and suitable personal protective equipment. Always check the performance of the machine combination to be used. -
Page 6: Parts
PARTS : turnbuckle left and right arm ball coupling M8x45 (15pcs) M10x35 (pcs) M12x75 (2st) tines and bolts rake frame Table of contents →... -
Page 7: Assembly
ASSEMBLY : Place all parts on the ground to get a good overview of how the parts should be mounted. See picture below: Assemble the arms, ball coupling and rake frame. Mount the turnbuckle on the bracket of the ball coupling as shown below. Then install all the tines, select the desired height of the tines and tighten all the bolts. -
Page 8: Warranty Terms And Conditions
You are always welcome to give your feedbacks, reviews or ask us about our equipment and products. Kellfri AB is constantly working on further developing their products and therefore reserves the right to modify, among other things the design and appearance without further notice.
