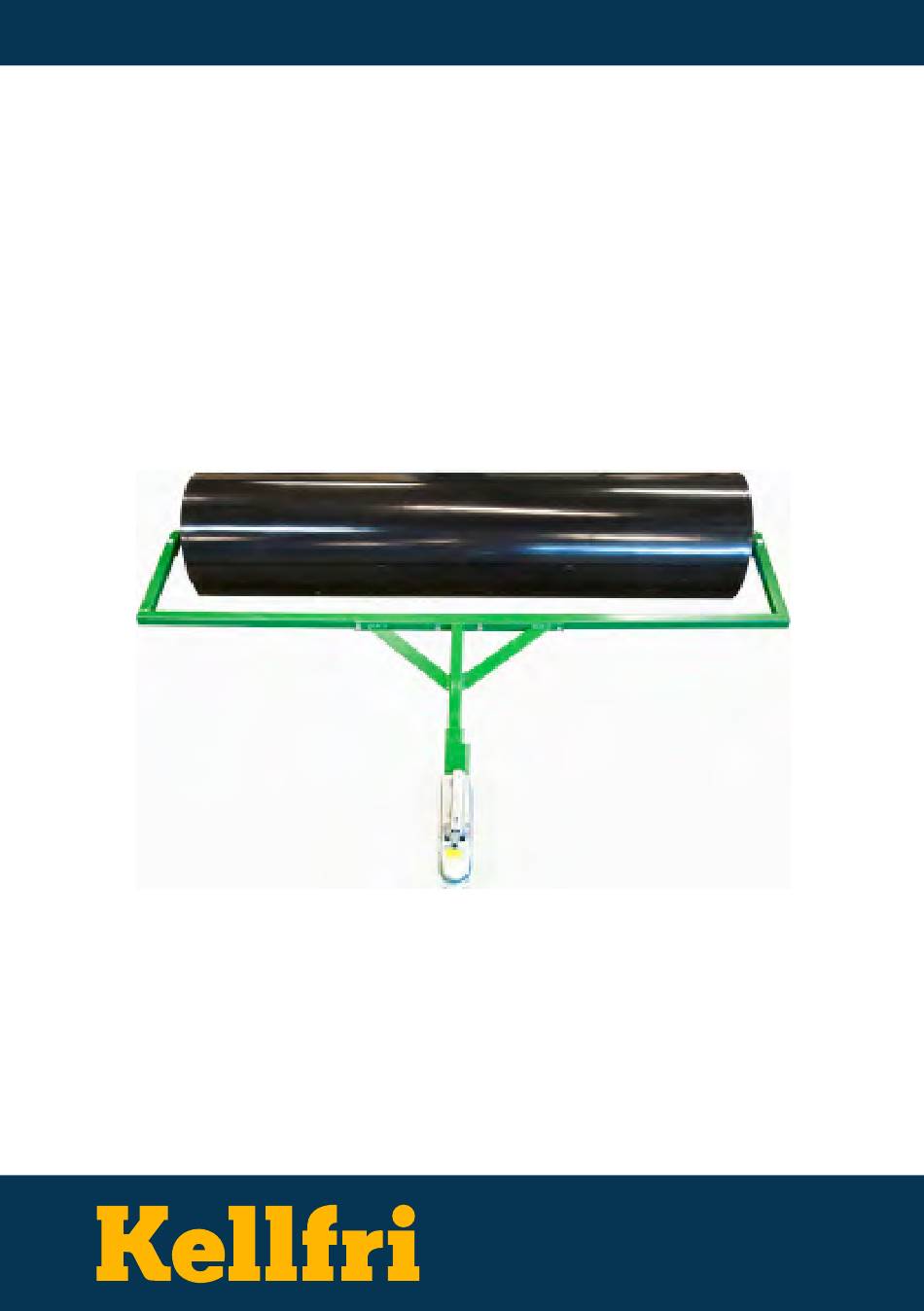

- Page 1 27-V1500 ROLLER, TOWED Carefully read the operating instructions before using the product! Operating instructions translated from Swedish...
-
Page 2: Table Of Contents
Deviation form Warranty conditions Kellfri designs and supplies efficient, affordable machinery and components for forestry, agriculture, construction and gardening in Sweden, the rest of the Nordic region and Europe. Please note that the information in this document is general and may not pertain to your particular machine. -
Page 3: Introduction

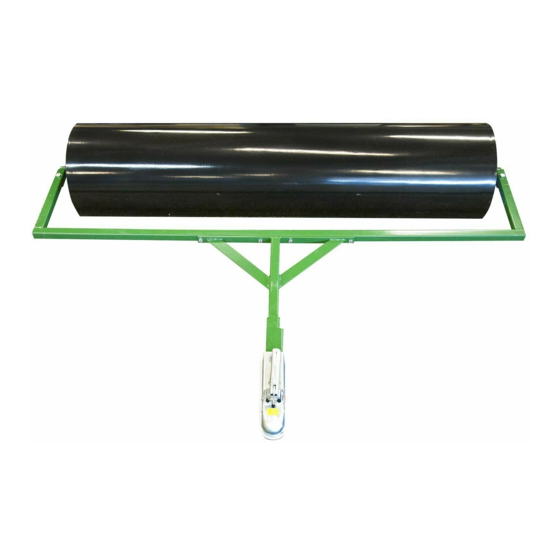

PRODUCT INFORMATION Kellfri's towed roller is connected behind your ATV or rider mower. Supplied with both pin tow coupling and ball coupling. To achieve maximum weight, the roller is filled with water. The robust design makes the roller the perfect tool for compacting and levelling soil, for example for lawns or newly sowed surfaces. -
Page 4: Safety Instructions
Unauthorised modifications and/or accessories may cause life-threatening injuries or death to users and others. Kellfri is not liable for any modifications, changes or rebuilds carried out by customers. Where the machine is used professionally, employers are responsible for ensuring that users of the machine have theoretical and practical knowledge of the machine and that work is performed in a safe manner. -
Page 5: Surroundings
SURROUNDINGS Check that the work area is free from bystanders and objects before hitching or using the equipment. Otherwise, there is a risk of serious injury. Be extra careful if there are children in the vicinity of the area where the equipment or product is used or stored. Check that there are no low-hanging electrical cables within the work area. -
Page 6: Use
Only those who understand the safety instructions and the operating manual may use the equipment or product. Exercise caution and care when working with the equipment or product, and only use it as described in the instruction manual. There is a risk of crushing when working with equipment that has moving parts. Reduce speed when working on slopes and uneven ground. -
Page 7: Maintenance And Service
Contact your local authority for further information. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice. -
Page 8: Warning Decals
WARNING DECALS Make sure warning decals are always visible and clean them when necessary. Do not use a high-pressure washer directly on the warning decal. If apart with a decal is replaced, or the decal becomes worn or in any other way unusable, order a new set of decals. SYMBOL EXPLANATION Read the operating manual! Before starting work. -
Page 9: Product Safety Information
PRODUCT SAFETY INFORMATION • Carry out a visual inspection of the equipment before use. • Keep away from the roller during work and transport. • Be careful when transporting the roller on country roads and comply with the traffic regulations. Make sure that the tractor has sufficient weight at the front for safe driving. Avoid strong jerking motions. -
Page 10: When Laying New Peat Or Grass Seeds
WHEN LAYING NEW PEAT OR GRASS SEEDS • Connect the roller behind the towing vehicle, follow the correct connection and filling procedure for the roller if extra weight is required. • Check the area to be levelled. Make sure that there are no stones protruding in the work area. -
Page 11: Exploded Diagrams And Materials List
ITEM NO. DESIGNATION QUANTITY Drum Washer Plug Joint bushing Grease nipple M10 x 55 bolt Ø10 flat washer Locking nut M10 Bracket U-bracket Bolt M8x50 Flat washer Ø8 Locking nut M8 Bracket T-bracket Pin tow bar Tow bar ball hitch Bolt M12 x 70 Flat washer Ø12 Locking nut M12... -
Page 12: Notes
NOTES: Table of contents... - Page 13 NOTES: Table of contents...
- Page 14 NOTES: Table of contents...
-
Page 15: Deviation Form
DEVIATION FORM We are grateful for your help in pointing out any defects in the product supplied to you by Kellfri. Before making a claim, read Kellfri’s general purchase terms and conditions in our catalogue or on our website www.kellfri.co.uk, and in the operating manual if supplied. -
Page 16: Warranty Conditions
You are always welcome to give feedback or ask us about our equipment and products. Kellfri AB has a policy of continuous product development and therefore reserves the right to make modifications, e.g. to the design and appearance of the product, without prior notice.
