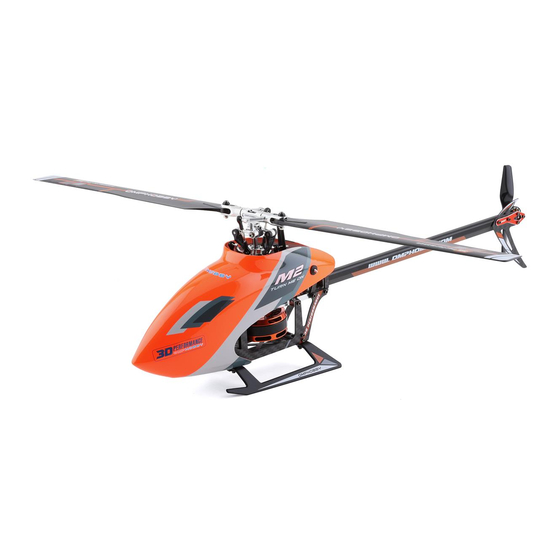

INSTRUCTION MANUAL
使用说明书
OMP HOBBY
Thank you for buying
latest technology in Rotary RC models.Please read this manual
carefully before assembling and flying the New
We recommend that you keep this manual for future reference
regarding and maintenance
感谢您选用边锋智驱 系列产品。
进入遥控世界前必须告诉您许多相关的知识与注意事项，以确保您能够在学
习的过程中较得心应手。在开始操作之前，请务必详细阅读本说明书，相信
一定能够给您带来相当大的帮助，也请您妥善保管这本说明书，以作为日后
参考。
#1 BY DESIGN
M2
products.The
is the
M2
helicopter.

Advertisement

loading
Need help?

Need help?

Do you have a question about the M2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OMP Hobby M2

Summary of Contents for OMP Hobby M2

  • Page 1 INSTRUCTION MANUAL 使用说明书 #1 BY DESIGN OMP HOBBY Thank you for buying products.The is the latest technology in Rotary RC models.Please read this manual carefully before assembling and flying the New helicopter. We recommend that you keep this manual for future reference regarding and maintenance 感谢您选用边锋智驱...
  • Page 2 We recommend that you obtain the assistance of an experienced pilot before attempting to fly our products for the first time, A lcoal expert is the best way to properly assmble , setup, and fly your mldel for the first time .M2 Helicopter requires a certain degree of skill to operate, and is a consumer item.
  • Page 3 Precautions before use 使用前须知 FORBIDDEN LOCATE AN APPROPRIATE LOCATION 远离障碍物及人群 禁止 R/C helicopters fly at high speed ,thus posing a certain degree of potential danger .Choose a legal flying field consisting of flat,smooth groumd without obstacles. Do not fly near buildings,high voltage cables ,or trees to ensure the safety of yourself,others and your model. For the first practice,please choose a legal flying field and can use a training skid to fly for reducing the damage .Do not fly your model in inclement weather,such as rain,wind snow or darkness.
  • Page 4 EQUIPMENT REQUIRED FOR ASSEMBLY 自备工具 刀子 斜口钳 剪刀 尖嘴钳 Cutter Knife Scissors Needle Nose Pliers Diagonal Cutting Pliers 十字螺丝起子 六角螺丝起子 Oil 润滑油 CA 瞬间胶 AB Glue AB 胶 Philips Screw Drive Hexagon Screw Driver 胶水使用方法 When you see the marks as below,please use glue or greae to ensure flying safety. 标有以下符号之组装步骤，请配合上胶或上油，以确保使用之可靠度。...
  • Page 5 Specifications 参数规格 Specifications 参数配备 Lenght ： 410mm 机身长： 410mm Height ： 130mm 机身高： 130mm Main Blade ： 173mm 主旋翼长度： 173mm Main Rotor Diameter ： 400mm 主旋翼直径： 400mm Tail Rotor Diameter ： 71.5mm 尾旋翼直径： 71.5mm Flying Weight ： 300g 起飞重量约： 300g Features 设计特点...
  • Page 6 step 1 步骤一 Obverse of bearing faces inside. CAUTION Thrust braring and washer for radial bearing are wear items,and thus should be 注意 inspected for replacement after every 20 flights. 轴承面凹开口朝内 For flights with high headspeed ,the inspection interval should be reduced to ensure flight safety.
  • Page 7 Steering gear mount 舵机固定座 Socket screw 圆柱头内六角螺丝 M1.6x6mm Socket screw 圆柱头内六角螺丝 M1.6x4mm Bearing-684ZZ 滚珠轴承 (Ø4xØ9x4mm)x1 机身中间加强板 Socket screw 圆柱头内六角螺丝 (M2.5x7mm)x3 Concentricity retention column 主轴同心度保持柱 Socket screw 圆柱头内六角螺丝 (M1.6x6mm)x2 Socket screw Main Shaft 圆柱头内六角螺丝 主轴 M1.6x4mm Socket screw 圆柱头内六角螺丝 (M1.6x4mm)x6 Socket screw 基米螺丝...
  • Page 8 step 3 步骤三 Canopy Support 机壳固定柱 Rear reinforcing plate 机身后加强板 Frame upper side panel Socket screw Socket screw 机身上侧板 圆柱头内六角螺丝 圆柱头内六角螺丝 (M1.6x3mm)x4 (M1.6x4mm)x8 Socket screw 圆柱头内六角螺丝 M1.6x4mm Socket screw 圆柱头内六角螺丝 M1.6x4mm Tail Boom Mount Frame widening mount 尾管固定座 机身加宽固定座 Frame upper side panel 机身上侧板...
  • Page 9 step 4 步骤四 Socket screw 圆柱头内六角螺丝 M1.6x3mm Fuselage front reinforcement plate Socket screw 机身前加强板 圆柱头内六角螺丝 M1.6x4mm Socket screw 圆柱头内六角螺丝 M1.6x6mm Fuselage front reinforcement plate 机身前加强板 Socket screw 圆柱头内六角螺丝 M1.6x3mm Socket screw 圆柱头内六角螺丝 M1.6x4mm Socket screw 圆柱头内六角螺丝 M1.6x6mm Frame upper side panel 底板...
  • Page 10 Flange bearing MF52ZZ 滚珠轴承 Ø2xØ5x2.5mm Washer 垫片 Ø2.1xØ3.6x0.2mm Socket screw 圆柱头内六角螺丝 (M2x10mm-L2.5)x2 Swash plate 倾斜盘 Washer 垫片 (Ø2.1xØ3.6x0.2mm)x4 Flange bearing MF52ZZ 滚珠轴承( Ø2xØ5x2.5mm)x4 Copper sets 铜套( Ø2.xØ3.9x2.2mm)X2 Socket screw 圆柱头内六角螺丝 (M2x10mm-L4)x1 M2 Nut M2 防松螺母 (M2)x1 Socket screw 半圆头内十字机械牙半牙螺丝 (M1.4x4-L2)x4 WWW.OMPHOBBY.COM...
  • Page 11 6 步骤六 Socket screw 圆柱头内六角螺丝 Landing skid mount 脚架固定座 M2x4mm Screw sleeve M2 螺丝套 Landing skid Canopy latch 脚架 机壳卡扣 Socket screw 圆柱头内六角螺丝 (M1.6x3mm)x8 Socket screw 圆柱头内六角螺丝 M1.6x4mm Socket screw 圆柱头内六角螺丝 (M1.6x4mm)x2 Socket screw 圆柱头内六角螺丝 (M2x4mm)x4 Screw sleeve M2 螺丝套...
  • Page 12 step 7 步骤七 Tail Motor 尾电机 Tail Motor Mount 3K CF Vertical Stabilizer Tail Boom 尾电机固定座 3K 碳纤维垂直翼 尾管 Socket screw 圆柱头内六角螺丝 Socket screw M1.6x3mm 圆柱头内六角螺丝 M1.6x4mm Socket screw 圆柱头内六角螺丝 (半牙，牙长4) Socket screw M1.6x12mm 圆柱头内六角螺丝 M1.6x3mm Socket screw Socket screw Socket screw 圆柱头内六角螺丝...
  • Page 13 step 8 步骤八 Socket screw 圆柱头内六角螺丝 (M1.6x3mm)x2 Socket screw 圆头内十字螺丝 M1.6x4mm Linkage Ball 球头 (Ø3.175x3-M1.6) Socket screw 圆头内十字机械牙螺丝 Servo Arm 舵机摆臂 (M1.6x4)x1 M1.6 Nut 螺母 M1.6 Metal Servo 全金属舵机 Linkage Ball 球头 (Ø3.175x3-M1.6)x1 M1.6 Nut 螺母 (M1.6)x1 Socket screw 圆柱头内六角螺丝 M1.6x4mm Linkage Ball Socket screw...
  • Page 14 step 9 步骤九 约 10 约 28.2mm CH2 Linkage rod 连杆约 28.2mmx3 CH2 连杆 Linkage rod Approx.28.2mmx3 CH1 Linkage rod CH1 连杆 CH3 Linkage rod CH3 连杆 Flight Control 飞控 Double-sided tape 双面胶 CAUTION 注意 Note:Fist,the double-sided damping rubber should be fully fitted with the receiver board, and then install the flight control.The flight control must be completely parallel to the fuselage to achieve the best flight performance.
  • Page 15 10 步骤十 Socket screw Screw sleeve Washer M2 Nut 圆柱头内六角螺丝 Socket screw M2 防松螺母 (M2)x2 M2 螺丝套 横轴轴承垫片 圆柱头内六角螺丝 (M2x12mm-L4)x2 (Ø2.1xØ10x0.3mm)x4 (M2x12mm-L4)x2 Screw sleeve M2 螺丝套 Washer 垫片 Ø2.1xØ10x0.3mm Main Blade M2 Nut 主旋翼 M2 防松螺母 Socket screw 圆柱头内六角螺丝...
  • Page 16 step 11 步骤十一 Battery mount 电池固定板 Hook and loop tape （ hooked ） 魔术粘（勾状） Hook and loop tape （ fuzzy ） 魔术粘（织毛状） Battery 电池 Hook and loop tape 魔术带 Align the sides of the panel with the fuselage bettery compertment slideay, then push it hard to hear a “click”...
  • Page 17 step 12 步骤十二 Canopy protector 机头罩橡胶固定圈 Canopy 机头罩 WWW.OMPHOBBY.COM...
  • Page 18 -5.5° -2.4° -100 -11° -100 -11° 姿态模式/3D模式 通电自检/对频 舵机中位调整 飞控LED 模式 状态 飞控LED 蓝灯常亮 75-100 姿态模式 红灯常亮 上电自检 蓝灯常亮 0-25 需将M2放在平地上通电，通 模式 电后蓝灯、红灯快闪，静止3 秒钟直到蓝灯常亮 红灯慢闪 对频前 蓝灯慢闪 在更换舵机，飞控，需要重新检查舵机中点。 对频后 蓝灯常亮 调试前请先断开主尾马达电源线，避免安全隐患！ 1.打开遥控器电源，给飞机通电，飞机自检过后可以正常控制舵 机工作状态； 2.将油门摇杆放到最低，升降舵摇杆推到最高直到飞控LED红灯快 闪； 3.将油门摇杆推到最高，此时可以分别通过副翼、升降、方向摇 杆调整对应舵机中位； 4.将油门摇杆拉到最低，升降舵摇杆推到最高直到红灯慢闪或常 亮，舵机中点保存完成。 WWW.OMPHOBBY.COM...
  • Page 19 Spare parts picture-1 配件 -1 Model: Package: Hang tag +PE bag Model: Model: Model: OSHM2001 OSHM2002 Package: Hang tag +PE bag OSHM2003 Package: Hang tag +PE bag OSHM2004 Package: Hang tag +PE bag 包装方式： 吊卡 +PE 袋 配件编号 : 配件编号 : 包装方式：...
  • Page 20 配件编号 : OSHM2058 包装方式： 吊卡 +PE 袋 包装方式： 吊卡 +PE 袋 配件编号 : OSHM2059 Product name: OMP HOBBY T6 Remote(MODE 1) Product name: OMP HOBBY T6 Remote(MODE 2) Product name: Canopy Rubber Ring Set Product name: Servo Swing Arm 配件名称 : OMP T6 遥控器 (MODE 1) 配件名称...
  • Page 21 Product name: Frame Upper Carbon Fiber Set Product name: Fuselage Lower Left Carbon Fiber Board Set 配件名称 : 舵机固定座组 配件名称 : 尾管固定座组 配件名称 : 机身左下碳纤维板组 配件名称 : 机身上碳纤维板组 锁好螺丝 0.8mm M2.5 2PCS 0.8mm M1.6*4=6PCS M1.6*4=5PCS M2*4=2PCS M2*12=2PCS Package: Hang tag +PE bag...
  • Page 22 配件编号 : OSHM2112 配件编号 : OSHM2113 配件名称 : 螺丝包组 Product name: Fuselage Baseplate Set Product name: Flight control 包装方式： 吊卡 +PE 袋 配件编号 : OSHP2110 配件名称 : 机身底板组 配件名称 : 飞控 M2*6=2PCS M1.6*6=6PCS ST1.7*8=2PCS ST1.7*4=8PCS 1 PCS M2*4=2PCS 0.8mm M1.2*6=4PCS M2*12=4PCS M1.6*4=17PCS...
  • Page 23 Transmitter description-1 遥控器说明-1 Remote Control Power Light(Red) Remote Control Power Light(Blue) 遥控器电源指示灯（红色） 遥控器信号指示灯（蓝色） (MODEL 2) HOLD IDLE 姿态模式 Attitude mode 手动模式 Manual mode 100% Manual mode 手动模式 Throttle, Orientation Front Back, Left Right 油门，方向 前后，左右 Flying Ring 吊环 POWER-2 POWER-1 Helicopter Battery Indicator 直升机电量指示灯...
  • Page 24 Transmitter description-2 遥控器说明-2 (Product Model) 产品型号： T6 (Diameters) 外形尺寸长 ： L165*W98*H180 Handle 提手 (Radio Frequency) 无线频率 ： 2.413GHz--2.453 GHz (Transmit Power) 发射功率： < 20 dBm (Weight) 重量约 ： 345g 5V <2A Charge Interface (Modulation Mode) 调制方式 ： GFSK 充电接口 (Spread Spectrum Mode) 扩频方式 ： FHSS (Working Voltage) 工作电压...
  • Page 25 Memo 备忘录 WWW.OMPHOBBY.COM...
  • Page 26 Zhuhai edge smart dirve technology Co., Ltd www.omphobby.com 2019...
