Installation Manual
MMI-20027478, Rev AF
April 2022
™
Micro Motion
5700 Transmitters with
Configurable Inputs and Outputs
All Installation Types (Integral, four-Wire, and nine-Wire)

Advertisement

Table of Contents
loading

Related Manuals for Emerson Micro Motion 5700

Summary of Contents for Emerson Micro Motion 5700

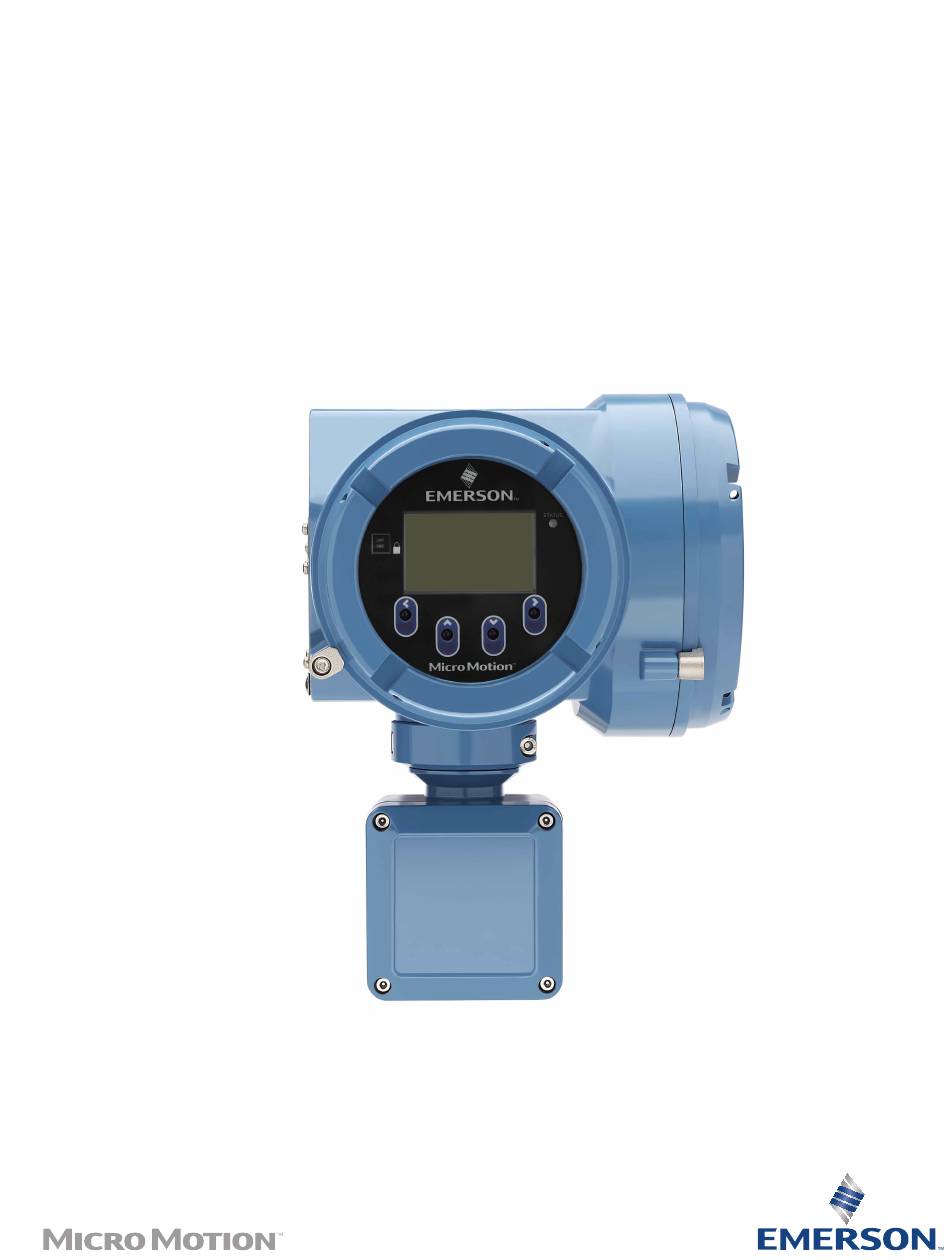

  • Page 1 Installation Manual MMI-20027478, Rev AF April 2022 ™ Micro Motion 5700 Transmitters with Configurable Inputs and Outputs All Installation Types (Integral, four-Wire, and nine-Wire)
  • Page 2 Micro Motion employees. Micro Motion will not accept your returned equipment if you fail to follow Micro Motion procedures. Return procedures and forms are available on our web support site at Emerson.com, or by calling the Micro Motion Customer Service department.

  • Page 3: Table Of Contents

    Power up the transmitter..................49 Chapter 8 Configuring the transmitter with Guided Setup............51 Chapter 9 Using the display controls..................53 Chapter 10 Available service port connection................55 Appendix A Wire the Micro Motion 5700 to the Micro Motion 3100 transmitter......57 Installation Manual...
  • Page 4 Contents Installation Manual April 2022 MMI-20027478 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 5: Before You Begin

    Before you begin About this document This manual provides information on planning, mounting, wiring, and initial setup of the Micro Motion 5700 transmitter. For information on full configuration, maintenance, troubleshooting, or service of the transmitter, see the Configuration and Use Manual.
  • Page 6 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs: Configuration and Use Manual • Coriolis Flow Meter with Micro Motion 5700 Transmitters Safety Manual for Safety Instrumented Systems (SIS) • Micro Motion 5700 Transmitters with a Marine Bunker Transfer Package: Application Manual •...

  • Page 7: Chapter 2 Planning

    For ATEX/IECEx installations, strictly adhere to the safety instructions documented in the ATEX/IECEx approvals documentation available on the product documentation DVD shipped with the product or at Emerson.com. □ Verify that you have the appropriate cable and required cable installation parts for your installation.

  • Page 8: Additional Considerations For Retrofitting Existing Installations

    Power (internal or external): — Source: — Scaling (LRV, URV): — Fault action: mA Outputs 2 (optional) — Power (internal or external): — Source: — Scaling (LRV, URV): — Fault action: Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 9: Power Requirements

    Installation Manual Planning MMI-20027478 April 2022 Variable Setting Frequency outputs (optional) — Power (nternal or external): — Source: — Scaling (LRV, URV): — Fault action: — Dual output: Discrete outputs (optional) — Power (internal or external): — Source: — Scaling (LRV, URV): —...
  • Page 10 300 ft (91 m) VDC 20 AWG (0.518 mm²) 500 ft (152 m) VDC 18 AWG (0.823 mm²) 1,000 ft (305 m) RS-485 22 AWG (0.326 mm²) 1,000 ft (305 m) or larger Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 11: Mounting And Sensor Wiring

    Prerequisites • Emerson recommends 5/16-18 (8 mm–1.25) fasteners that can withstand the process environment. Emerson does not supply bolts or nuts as part of the standard offering (general purpose bolts and nuts are available as an option). • Ensure that the surface is flat and rigid and that it does not vibrate or move excessively.
  • Page 12 April 2022 MMI-20027478 Figure 3-1: Mounting bracket to an aluminum transmitter Figure 3-2: Mounting bracket to a stainless steel transmitter 2. For wall-mount installations, secure the mounting bracket to the prepared surface. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 13 Installation Manual Mounting and sensor wiring MMI-20027478 April 2022 Figure 3-3: Wall-mounting bracket and dimensions for an aluminum transmitter A. 2.8 in (71 mm) B. 2.8 in (71 mm) Figure 3-4: Wall-mounting bracket and dimensions for a stainless steel transmitter A.
  • Page 14 2 in (51 mm) in diameter. • Confirm that you have the necessary tools, and the instrument-pole mounting kit shipped with the transmitter. Procedure For pole-mount installations, attach the U-bolt mounting piece to the instrument pole. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 15 Installation Manual Mounting and sensor wiring MMI-20027478 April 2022 Figure 3-6: Pole-mounting bracket attachment for an aluminum transmitter Installation Manual...

  • Page 16: Wire A Remote-Mount Transmitter To The Sensor

    Connect the cable to the sensor-mounted core processor or junction box as described in the sensor documentation. You can access all product documentation on the documentation DVD shipped with the product or at Emerson.com. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 17 Installation Manual Mounting and sensor wiring MMI-20027478 April 2022 Procedure 1. Remove the transmitter-to-sensor wiring compartment cover to reveal the terminal connections. Figure 3-8: Removal of the transmitter-to-sensor wiring compartment cover 2. Feed the sensor wiring cable into the transmitter wiring compartment. Figure 3-9: Sensor wiring feedthrough 3.

  • Page 18: Ground The Meter Components

    14 in lbf (1.58 N m) to 15 in lbf (1.69 N m). Ground the meter components In 4-wire or 9-wire remote installations, the transmitter and sensor are grounded separately. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 19 Installation Manual Mounting and sensor wiring MMI-20027478 April 2022 Prerequisites NOTICE Improper grounding could cause inaccurate measurements or meter failure. WARNING Failure to comply with requirements for intrinsic safety in a hazardous area could result in an explosion causing death or serious injury. Note For hazardous area installations in Europe, refer to standard EN 60079-14 or national standards.

  • Page 20: Rotate The Transmitter On The Sensor (Optional)

    You can rotate the transmitter to any of the eight positions, but a stop exists that will not allow a full 360° rotation. Figure 3-13: Rotate transmitter head 3. Gently lower the transmitter onto the base, confirming that the transmitter is in a locked position. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 21 Installation Manual Mounting and sensor wiring MMI-20027478 April 2022 4. Replace the clamp in its original position and tighten the cap screw. Torque to 28 in lbf (3.16 N m) to 30 in lbf (3.39 N m). Figure 3-14: Re-attachment of the sensor clamp Installation Manual...

  • Page 22: Rotate The User Interface On The Transmitter (Optional)

    4. Carefully loosen the captive display screws while holding the display module in place. 5. Carefully pull the display module out of the main enclosure. 6. Rotate the display module to the desired position. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 23: Rotate The Sensor Wiring Junction Box On A Remote-Mount Transmitter (Optional)

    Installation Manual Mounting and sensor wiring MMI-20027478 April 2022 7. Gently press the display module back onto the connector. 8. Tighten display screws. 9. Place the display cover onto the main enclosure. 10. Turn the display cover clockwise until it is fully seated. 11.
  • Page 24 4. Replace the clamp in its original position and tighten the cap screw. Torque to 28 in lbf (3.16 N m) to 30 in lbf (3.39 N m). Figure 3-18: Re-attach the clamp Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 25: Wiring The Channels

    Installation Manual Wiring the channels MMI-20027478 April 2022 Wiring the channels Note To prevent conduit connectors from seizing in the threads of the conduit openings, apply a conductive anti-galling compound to the threads, or wrap threads with PTFE tape two to three layers deep.

  • Page 26: Access The Wiring Channels

    Figure 4-1: Activated channel identification A. Key to identify the activated input/outputs 3. Record the channel and wiring configuration on the label provided inside the transmitter housing cover. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 27: Wire The Ma Output

    Installation Manual Wiring the channels MMI-20027478 April 2022 Figure 4-2: Channel and wiring configurations label Wire the mA output Wire the mA output in explosion-proof, nonincendive, or nonhazardous installations. Important Meter installation and wiring should be performed only by suitably-trained personnel. 4.3.1 Wire the mA output (internally powered) Procedure...

  • Page 28: Wire The Ma/Hart ® Output

    B. External supply voltage (V) ® Wire the mA/HART output Wire the mA/HART output in explosion-proof, nonincendive, or nonhazardous installations. Important Meter installation and wiring should be performed only by suitably-trained personnel. Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 29 Installation Manual Wiring the channels MMI-20027478 April 2022 ® 4.4.1 Wire the mA/HART output (internally powered) Procedure Wire to the appropriate output terminal and pins. Figure 4-6: mA/HART output wiring (internally powered) A. mA/HART output B. 250–600 Ω resistance C. HART device ®...
  • Page 30 I give up A. 250–600 Ω resistance B. HART-compatible host or controller C. HART-compatible transmitter (internally powered) D. Micro Motion 5700 transmitter (internally powered) mA/HART connections ™ E. SMART FAMILY transmitters F. 24 VDC loop power supply required for external transmitter...

  • Page 31: Wire The Frequency Output

    Installation Manual Wiring the channels MMI-20027478 April 2022 Wire the frequency output Use this section to wire the frequency output in explosion-proof, nonincendive, or nonhazardous installations. Important Meter installation and wiring should be performed only by suitably-trained personnel. 4.5.1 Wire the frequency output (internally powered) Use this procedure to wire the internally-powered frequency output for Channel B or C.
  • Page 32 Procedure Wire to the appropriate output terminal and pins. Figure 4-13: Frequency output wiring (internally powered) A. Frequency output B. See Figure 4-14 for output amplitude versus load resistance C. Counter Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 33 Installation Manual Wiring the channels MMI-20027478 April 2022 Figure 4-14: Internally powered frequency output: output amplitude versus load resistance [24 VDC (Nom) open circuit] 2500 5000 7500 10000 A. Output amplitude (V) B. Load resistor (Ω) 4.5.4 Wire the frequency output (externally powered Channel Procedure Wire to the appropriate output terminal and pins.

  • Page 34: Wire The Discrete Output

    D. Counter Figure 4-17: Internally powered discrete output: output amplitude versus load resistance [24 VDC (Nom) open circuit] 1500 2250 3000 A. Output amplitude (V) B. Load resistor (Ω) Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 35 Installation Manual Wiring the channels MMI-20027478 April 2022 4.6.2 Wire the discrete output (externally powered) Use this procedure to wire the externally-powered discrete output for Channel B or C. Procedure Wire to the appropriate output terminal and pins. Figure 4-18: Discrete output wiring (externally powered) A.
  • Page 36 Procedure Wire to the appropriate output terminal and pins. Figure 4-21: Discrete output wiring (externally powered) A. Discrete output B. 3–30 VDC (maximum) C. 500 mA current (maximum) D. Signal device Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 37: Wire The Rs-485 Output

    Installation Manual Wiring the channels MMI-20027478 April 2022 Wire the RS-485 output Use this section to wire the RS-485 output in explosion-proof, nonincendive, or nonhazardous installations. Procedure Wire to the appropriate output terminal and pins. Figure 4-22: RS-485 output wiring A.

  • Page 38: Wire The Discrete Input

    Wire the discrete input (internally powered) Procedure Wire to the appropriate input terminal and pins. Figure 4-25: Discrete input wiring (internally powered) A. Discrete input B. Channel C or D C. Switch Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 39: Wire The Frequency Input

    Installation Manual Wiring the channels MMI-20027478 April 2022 4.9.2 Wire the discrete input (externally powered) Procedure Wire to the appropriate input terminal and pins. Figure 4-26: Discrete input wiring (externally powered) A. Discrete input B. Channel C or D C. 30 VDC (maximum) Note •...

  • Page 40: Wire Channels A And D For Safety Instrumented Systems (Sis) Applications

    Use one of the following power options: • Channel A active (internal) power and Channel D passive (external) power • Channel A passive (external) power and Channel D passive (external) power Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 41 Installation Manual Wiring the channels MMI-20027478 April 2022 Figure 4-29: Channel A active (internal) and Channel D passive (external) power A. Channel A mA output B. Channel D mA input C. Terminals D. 820 ohm maximum loop resistance including 100 ohms (H) for mA input (250–600 ohm for HART communications) E.
  • Page 42 H. External to the 5700 I. 100 ohm input resistance Figure 4-31: Externally-powered mA/HART output: maximum loop resistance 1100 1000 15.0 22.5 30.0 A. Maximum resistance (Ω) B. External supply voltage (V) Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...
  • Page 43 Installation Manual Wiring the channels MMI-20027478 April 2022 Note The calculation for loop resistance must include 100 ohms for the mA Input. Postrequisites To configure your system for SIS applications, see the Coriolis Flow Meter with Micro Motion 5700 Transmitters Safety Manual for Safety Instrumented Systems (SIS) and the Micro Motion 5700 Transmitters with Configurable Inputs and Outputs: Configuration and Use Manual.
  • Page 44 Wiring the channels Installation Manual April 2022 MMI-20027478 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 45: Wiring The Power Supply

    Installation Manual Wiring the power supply MMI-20027478 April 2022 Wiring the power supply You can install a user-supplied switch in the power supply line. Important For compliance with the Low Voltage Directive 2014/35/EU (European installations), verify that the transmitter is located in close proximity to a switch. Procedure 1.
  • Page 46 Wiring the power supply Installation Manual April 2022 MMI-20027478 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 47: Wire The Printer

    Installation Manual Wire the printer MMI-20027478 April 2022 Wire the printer Procedure Wire the RS-232-RS-485 adapter terminals to the transmitter terminals. Converter Terminals K2 ADE • Wire the K2 ADE terminal 1 to Channel E, RS-485B, terminal • Wire the K2 ADE terminal 2 to Channel E, RS-485A, terminal 9 •...
  • Page 48 Wire the printer Installation Manual April 2022 MMI-20027478 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 49: Power Up The Transmitter

    Installation Manual Power up the transmitter MMI-20027478 April 2022 Power up the transmitter The transmitter must be powered up for all configuration and commissioning tasks or for process measurement. Procedure WARNING If the transmitter is in a hazardous area, do not remove the housing cover while the transmitter is powered up.
  • Page 50 Power up the transmitter Installation Manual April 2022 MMI-20027478 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 51: Configuring The Transmitter With Guided Setup

    Installation Manual Configuring the transmitter with Guided Setup MMI-20027478 April 2022 Configuring the transmitter with Guided Setup At initial start-up of the transmitter, the guided configuration screen appears on the transmitter display. This tool guides you through basic configuration of the transmitter. The guided setup allows you to upload configuration files, set the transmitter display options, configure channels, and review sensor calibration data.
  • Page 52 Configuring the transmitter with Guided Setup Installation Manual April 2022 MMI-20027478 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 53: Using The Display Controls

    Installation Manual Using the display controls MMI-20027478 April 2022 Using the display controls The transmitter display interface includes a display (LCD panel) and four optical switches – left, up, down, and right arrow keys – used to access the display menus and navigate the display screens.
  • Page 54 Using the display controls Installation Manual April 2022 MMI-20027478 Figure 9-2: Example 1: Active arrow indicators on the transmitter display Figure 9-3: Example 2: Active arrow indicators on the transmitter display Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 55: Available Service Port Connection

    Installation Manual Available service port connection MMI-20027478 April 2022 Available service port connection Use the service port connection to download or upload data from/to the transmitter. To access the service port, you can use commonly-available USB hardware, such as a USB drive, or USB cable.
  • Page 56 Available service port connection Installation Manual April 2022 MMI-20027478 Micro Motion 5700 Transmitters with Configurable Inputs and Outputs...

  • Page 57: Appendix A Wire The Micro Motion 5700 To The Micro Motion 3100 Transmitter

    Installation Manual Wire the Micro Motion 5700 to the Micro Motion 3100 transmitter MMI-20027478 April 2022 Wire the Micro Motion 5700 to the Micro Motion 3100 transmitter Prerequisites • Set up the transmitter channel configuration to DO before wiring. •...
