7

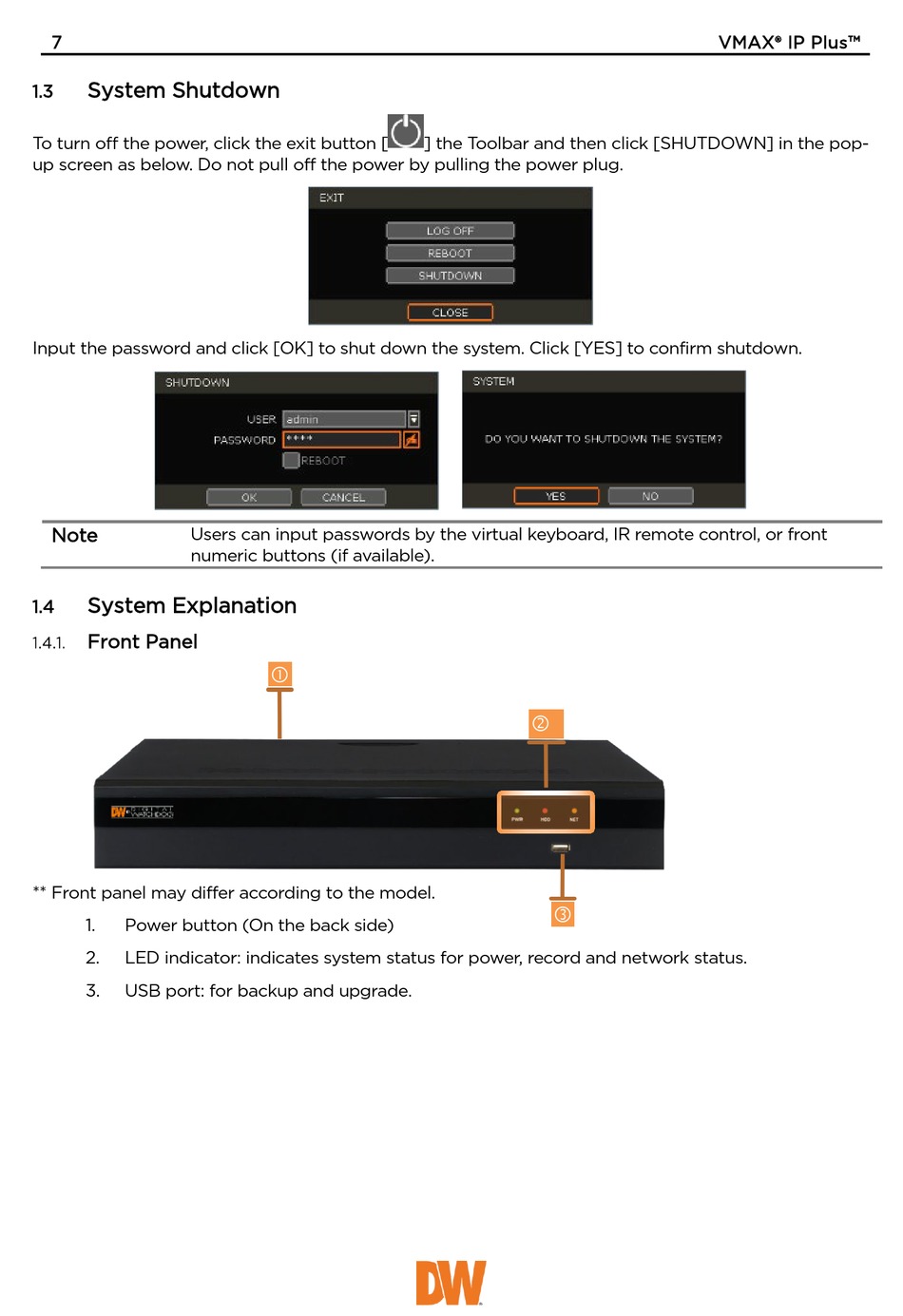

System Shutdown
1.3
To turn off the power, click the exit button [
up screen as below. Do not pull off the power by pulling the power plug.
Input the password and click [OK] to shut down the system. Click [YES] to confirm shutdown.
Note
Users can input passwords by the virtual keyboard, IR remote control, or front
numeric buttons (if available).
System Explanation
1.4
Front Panel
** Front panel may differ according to the model.
1.
Power button (On the back side)
2.
LED indicator: indicates system status for power, record and network status.
3.
USB port: for backup and upgrade.
] the Toolbar and then click [SHUTDOWN] in the pop-
VMAX® IP Plus™
