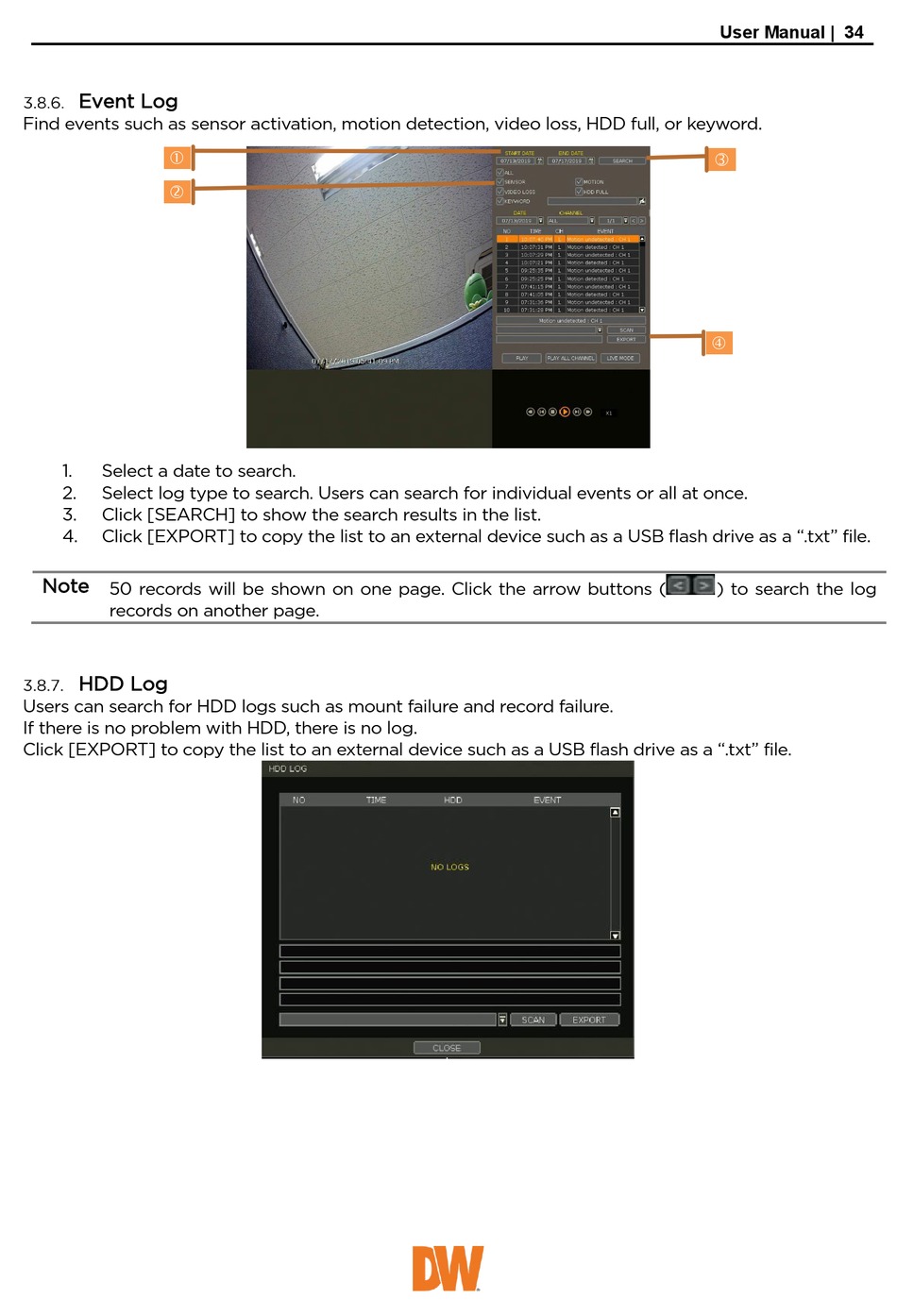

DW VMAX ip PLUS -VP9P User Manual page 34

Event Log
Find events such as sensor activation, motion detection, video loss, HDD full, or keyword.


1. Select a date to search.
2. Select log type to search. Users can search for individual events or all at once.
3. Click [SEARCH] to show the search results in the list.
4. Click [EXPORT] to copy the list to an external device such as a USB flash drive as a ".txt" file.
Note
50 records will be shown on one page. Click the arrow buttons (
records on another page.
HDD Log
Users can search for HDD logs such as mount failure and record failure.
If there is no problem with HDD, there is no log.
Click [EXPORT] to copy the list to an external device such as a USB flash drive as a ".txt" file.
User Manual | 34


) to search the log
