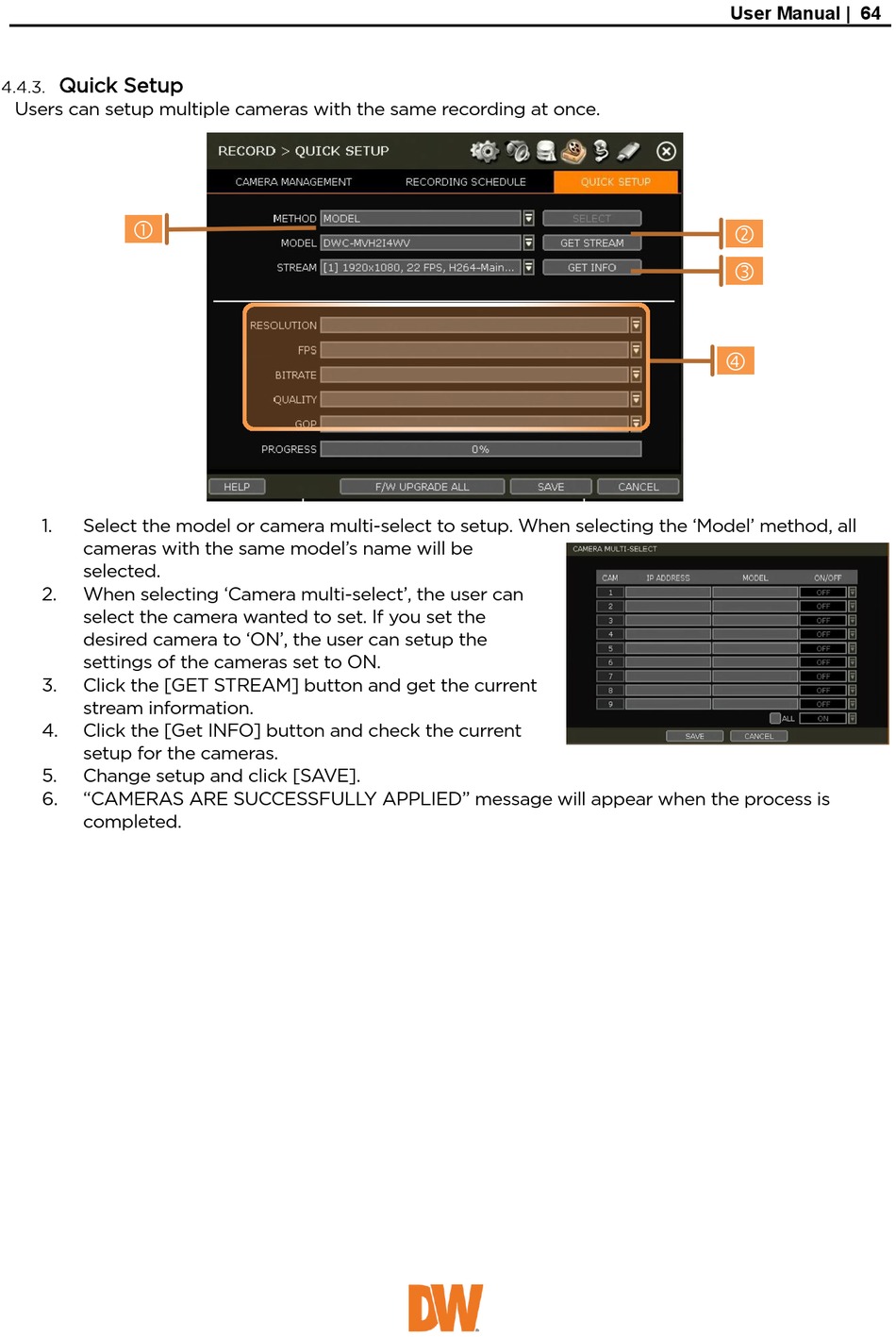

Quick Setup
Users can setup multiple cameras with the same recording at once.
1.
Select the model or camera multi-select to setup. When selecting the 'Model' method, all
cameras with the same model's name will be
selected.
2.
When selecting 'Camera multi-select', the user can
select the camera wanted to set. If you set the
desired camera to 'ON', the user can setup the
settings of the cameras set to ON.
3.
Click the [GET STREAM] button and get the current
stream information.
4.
Click the [Get INFO] button and check the current
setup for the cameras.
5.
Change setup and click [SAVE].
6.
"CAMERAS ARE SUCCESSFULLY APPLIED" message will appear when the process is
completed.
User Manual | 64
