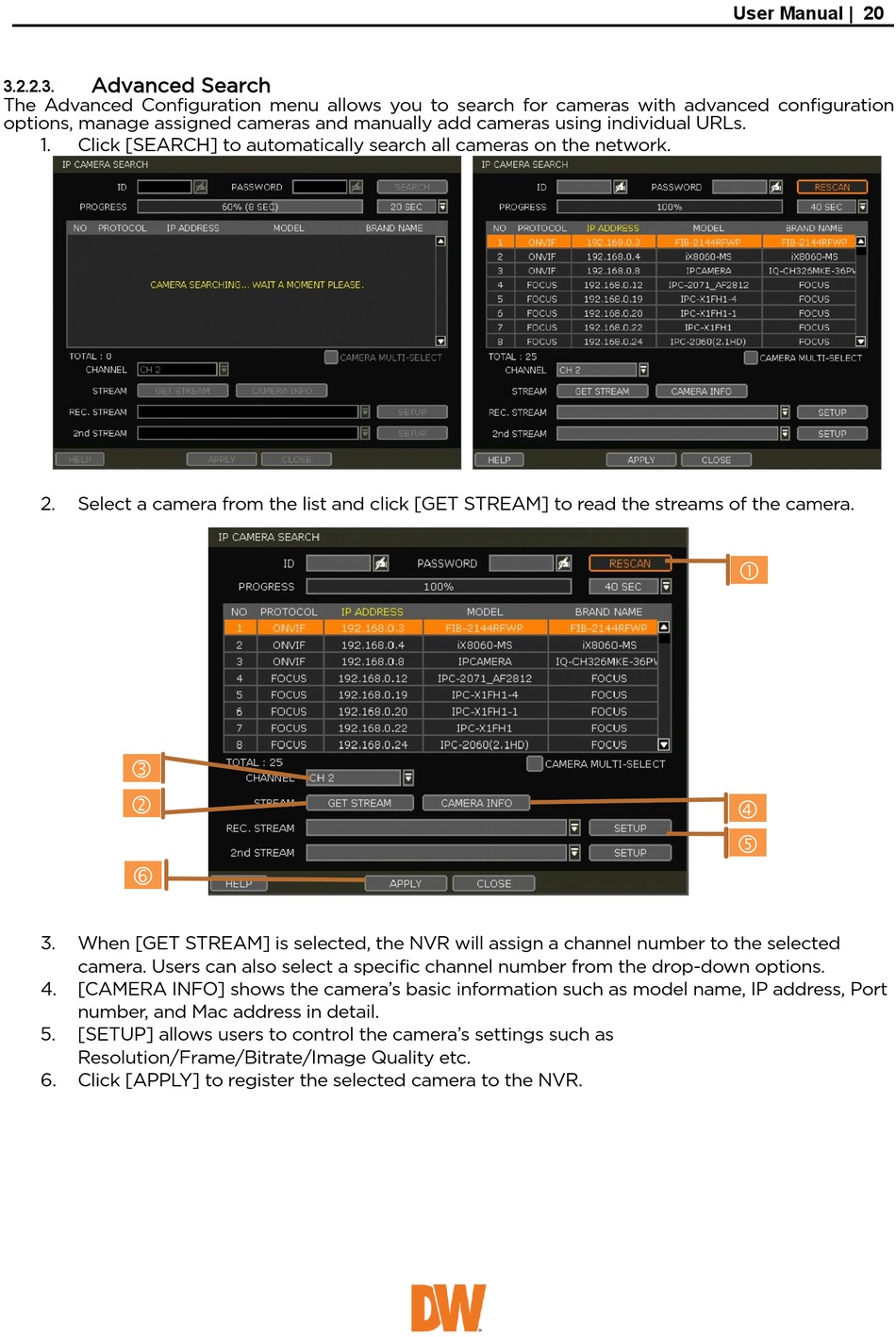

Advanced Search
3.2.2.3.
The Advanced Configuration menu allows you to search for cameras with advanced configuration
options, manage assigned cameras and manually add cameras using individual URLs.
1.
Click [SEARCH] to automatically search all cameras on the network.
2.
Select a camera from the list and click [GET STREAM] to read the streams of the camera.
3.
When [GET STREAM] is selected, the NVR will assign a channel number to the selected
camera. Users can also select a specific channel number from the drop-down options.
4.
[CAMERA INFO] shows the camera's basic information such as model name, IP address, Port
number, and Mac address in detail.
5.
[SETUP] allows users to control the camera's settings such as
Resolution/Frame/Bitrate/Image Quality etc.
6.
Click [APPLY] to register the selected camera to the NVR.
User Manual | 20
