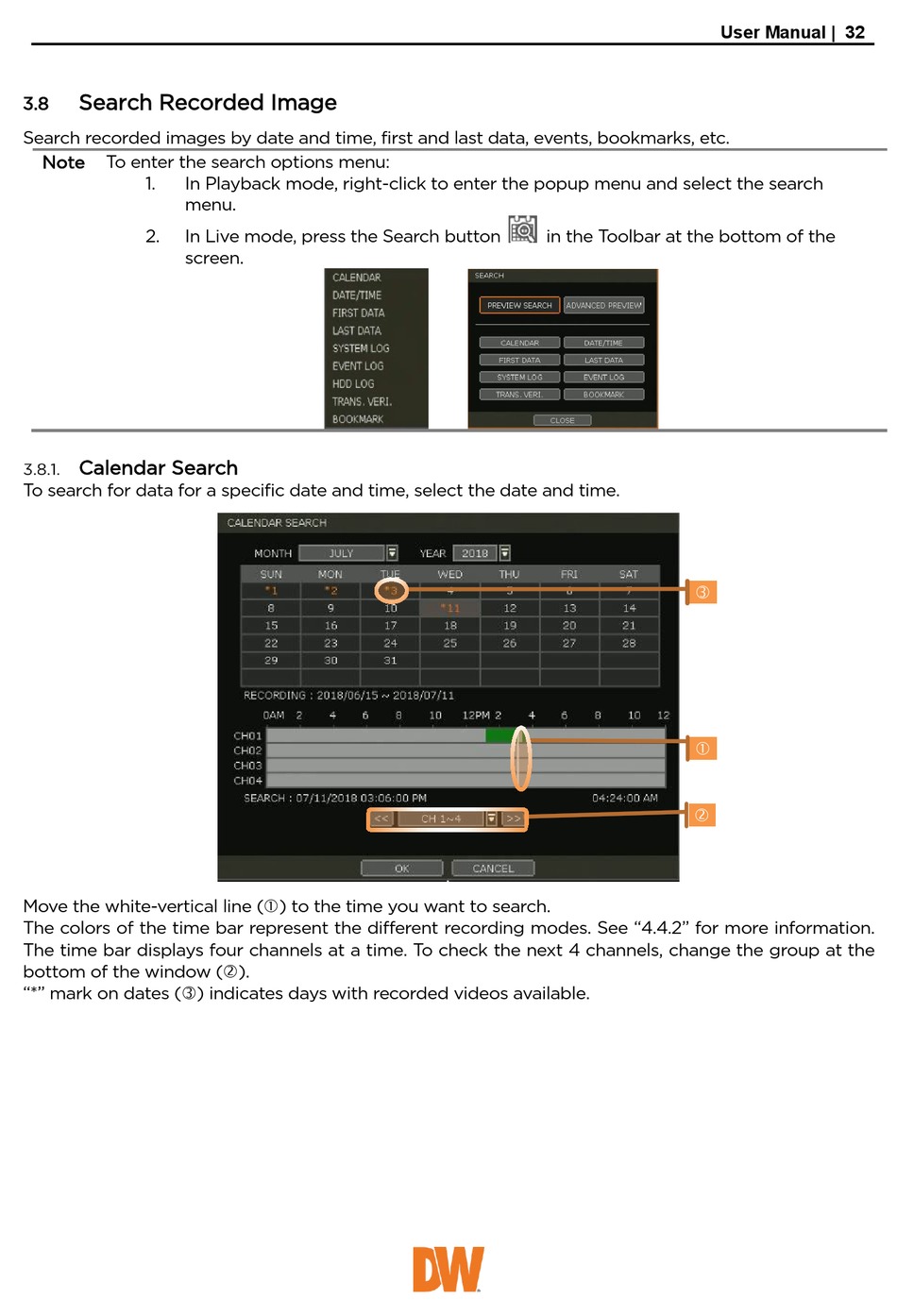

Search Recorded Image
3.8
Search recorded images by date and time, first and last data, events, bookmarks, etc.
Note
To enter the search options menu:
1.
In Playback mode, right-click to enter the popup menu and select the search
menu.
2.
In Live mode, press the Search button
screen.
Calendar Search
To search for data for a specific date and time, select the date and time.
Move the white-vertical line () to the time you want to search.
The colors of the time bar represent the different recording modes. See "4.4.2" for more information.
The time bar displays four channels at a time. To check the next 4 channels, change the group at the
bottom of the window ().
"*" mark on dates () indicates days with recorded videos available.
in the Toolbar at the bottom of the
User Manual | 32
