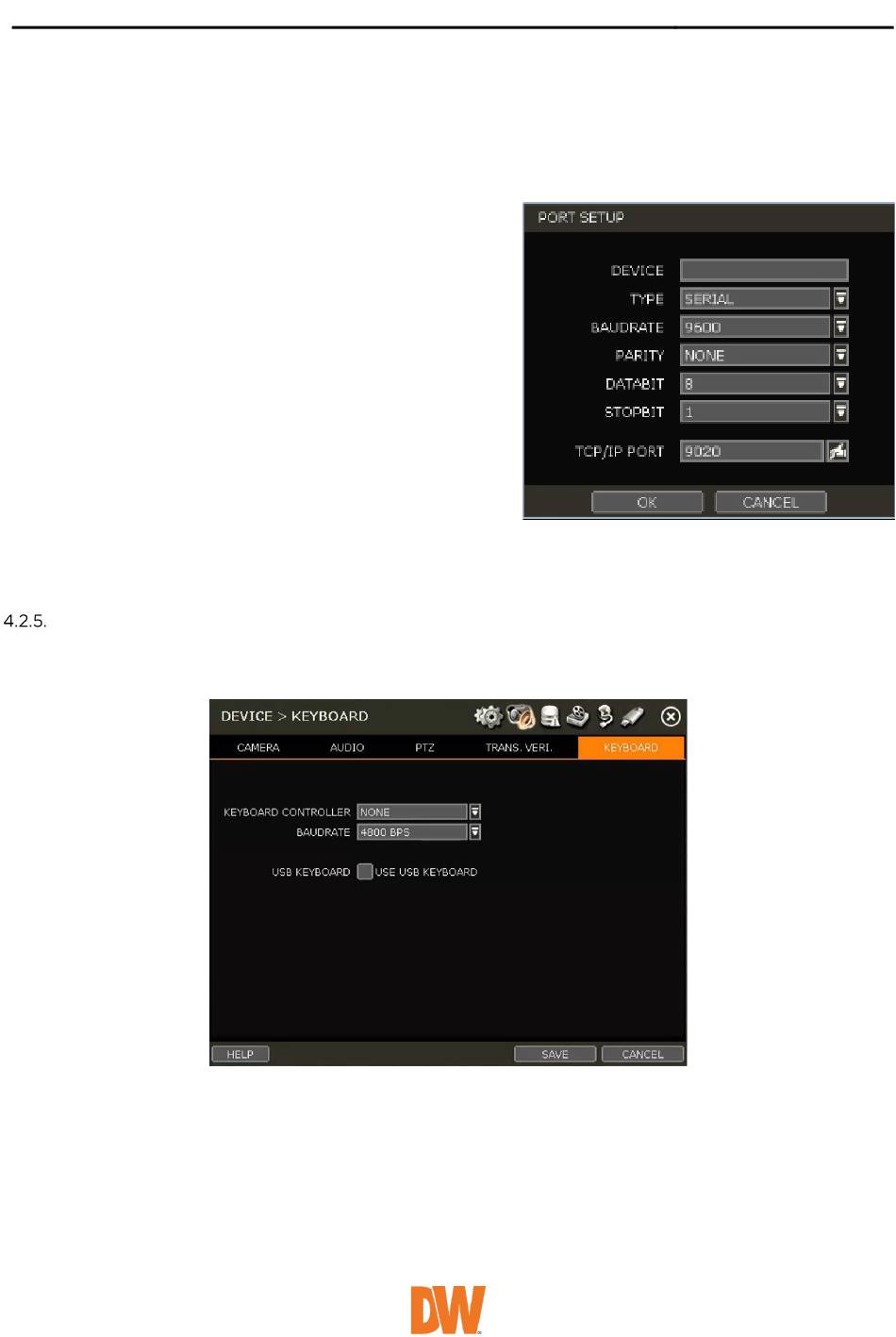

PORT SETUP (3)
Open the setup screen for the communication port.
• TYPE: Setup the type of communication port.
o SERIAL: It is for a 1-to-1 connection between
NVR and Transaction Verification device
without Serial Mux.
o
MUX: It is for a 1-to-Multi connection
between NVR and Transaction Verification
device
• BAUDRATE: Set BAUDRATE according to the
Transaction Verification device.
• PARITY: Set the parity according to the
connected device.
•
DATA BIT: Set DATABIT according to the
connected Transaction Verification device.
•
STOP BIT: Set STOPBIT according to the
connected Transaction Verification device.
• TCP/IP PORT: Set the TCP/IP Port number.
Keyboard
When an external keyboard is used, select the model and corresponding baud rate from the drop-down
options. The baudrate must match the one set in the keyboard itself. Make sure the Keyboard ID in the
SYSTEM> INFORMATION setup page matched the one set on the keyboard.
