BENDIX Wingman Advanced FLR20 Service Data page 37

B3 LATERAL ALIGNMENT USING BENDIX
Use this method to align the Bendix FLR20 laterally when the vehicle
does not have a DIU, or has a DIU (but its software version is prior to 12.220)
B3.1 Tools needed: Bendix ACom Diagnostics, and a Torx T-20 Screwdriver
B3.2 Connect the vehicle to a laptop computer with the current release of the Bendix ACom Diagnostics software.
B3.3
See the "Alignment Value" shown on the Confi guration screen.
If the alignment value shown by ACom Diagnostics is between -1.1° and 1.1 °, this is acceptable and the system
should operate normally. A value outside that range means the radar sensor should be adjusted.
BENDIX
Note: The maximum Alignment Value shown by ACom Diagnostics is two degrees (plus or minus).
Bendix ® FLR20
® ®

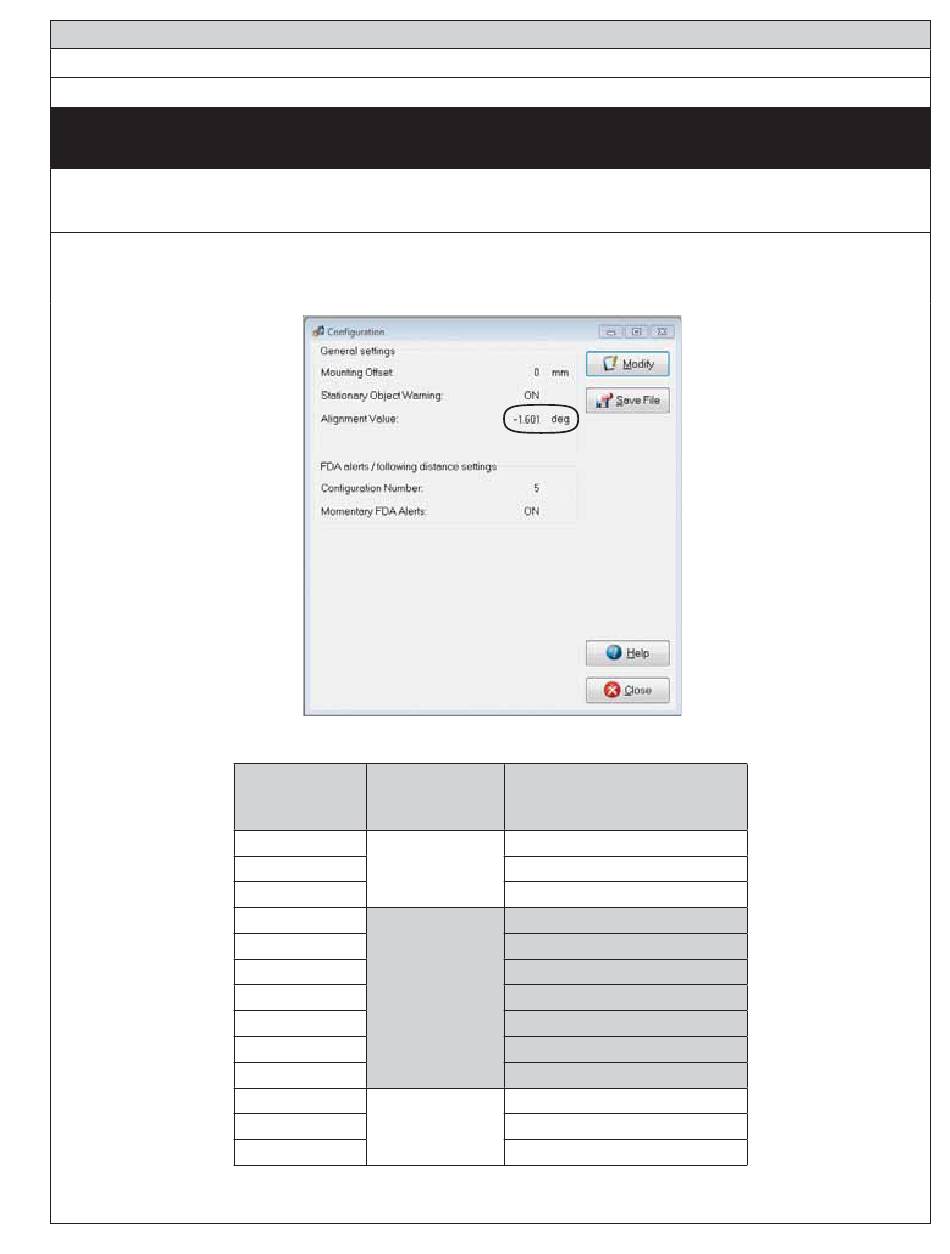

ACOM DIAGNOSTICS SCREEN SHOWING ALIGNMENT VALUE
Alignment
Value Range Service Action
(Degrees)
-2.0 to -1.8
Adjustment
-1.7 to -1.6
Required
-1.5 to -1.2
-1.1 to -0.8
-0.7 to -0.5
-0.4 to -0.3
No Adjustment
-0.2 to 0.2
Needed
0.3 to 0.4
-0.5 to 0.7
0.8 to 1.1
1.2 to 1.5
Adjustment
1.6 to 1.7
Required
1.8 to 2.0
ADJUSTMENT SCREW ROTATION REQUIRED
Appendix B
™ Radar Alignment
® ®
ACOM DIAGNOSTICS
Number of Full Turns of
the Lateral Alignment
Adjustment Screw
6 clockwise
5 clockwise
4 clockwise
3 clockwise (optional)
2 clockwise (optional)
1 clockwise (optional)
1 counterclockwise (optional)
2 counterclockwise (optional)
3 counterclockwise (optional)
4 counterclockwise
5 counterclockwise
6 counterclockwise
Appendix B
37
