BENDIX Wingman Advanced FLR20 Service Data page 35

Appendix B
Bendix ® FLR20 ™ Radar Alignment
B1.1 GENERAL INFORMATION ABOUT ADJUSTING THE ALIGNMENT
Accurate vertical and lateral alignment of the radar sensor is critical for proper operation of Bendix
® Wingman ®
. If the alignment is outside a certain range it could cause false warnings, missed warnings and a diagnostic
Advanced ™
trouble code in the system.

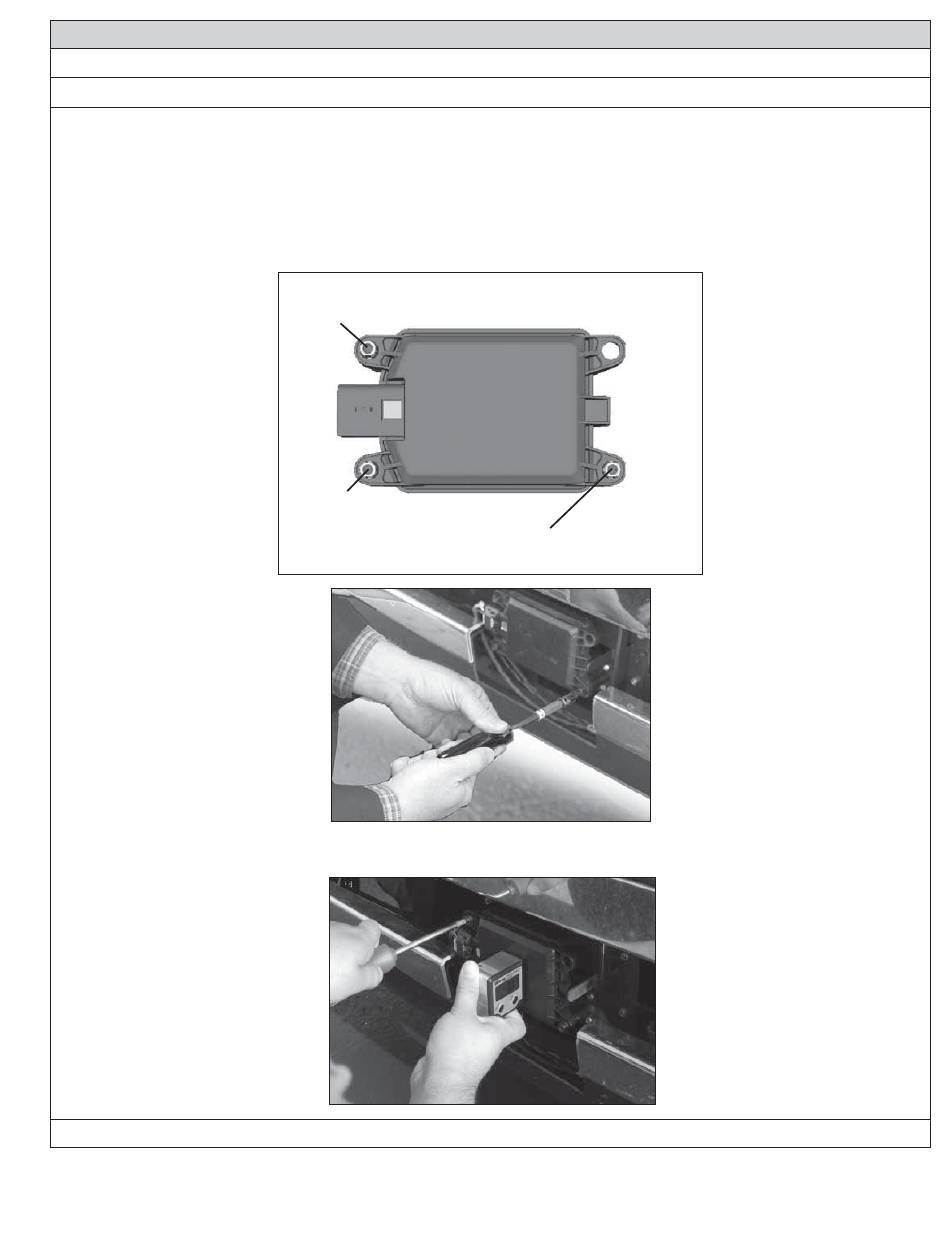

The radar sensor is mounted to the front of the vehicle using a bracket with three stand-offs, two of which are used
when making adjustments, if necessary.
It is important to use the correct stand-off when making any alignment adjustments.
Use a Torx T-20 screwdriver here to
adjust for the vertical alignment
IMPORTANT:
Do not adjust
Use a Torx T-20 screwdriver here to
this stand-off!!
adjust for the lateral alignment
ABOVE: A TECHNICIAN MAKES AN ADJUSTMENT TO THE LATERAL ALIGNMENT STANDOFF.
BELOW: THE VERTICAL ALIGNMENT STANDOFF IS ADJUSTED.
Call the Bendix Tech Team at 1-800-AIR-BRAKE (1-800-247-2725, option 2) for troubleshooting assistance.
Appendix B 35
