BENDIX Wingman Advanced FLR20 Service Data page 18

The Bendix ® ACom ® Diagnostics for ABS User Guide is
available for download at www.bendix.com and should be
used as a reference to all functions of the ACom service
tool.
In general, the protocol for Wingman Advanced is described
as CAN or CAN 250. (See Figure 15 for an example of an
adapter compatible with Wingman Advanced). The Bendix
EC-60 controller protocol will be described as J1708,
™
J1587, or Unifi ed Diagnostic Services (UDS).
®

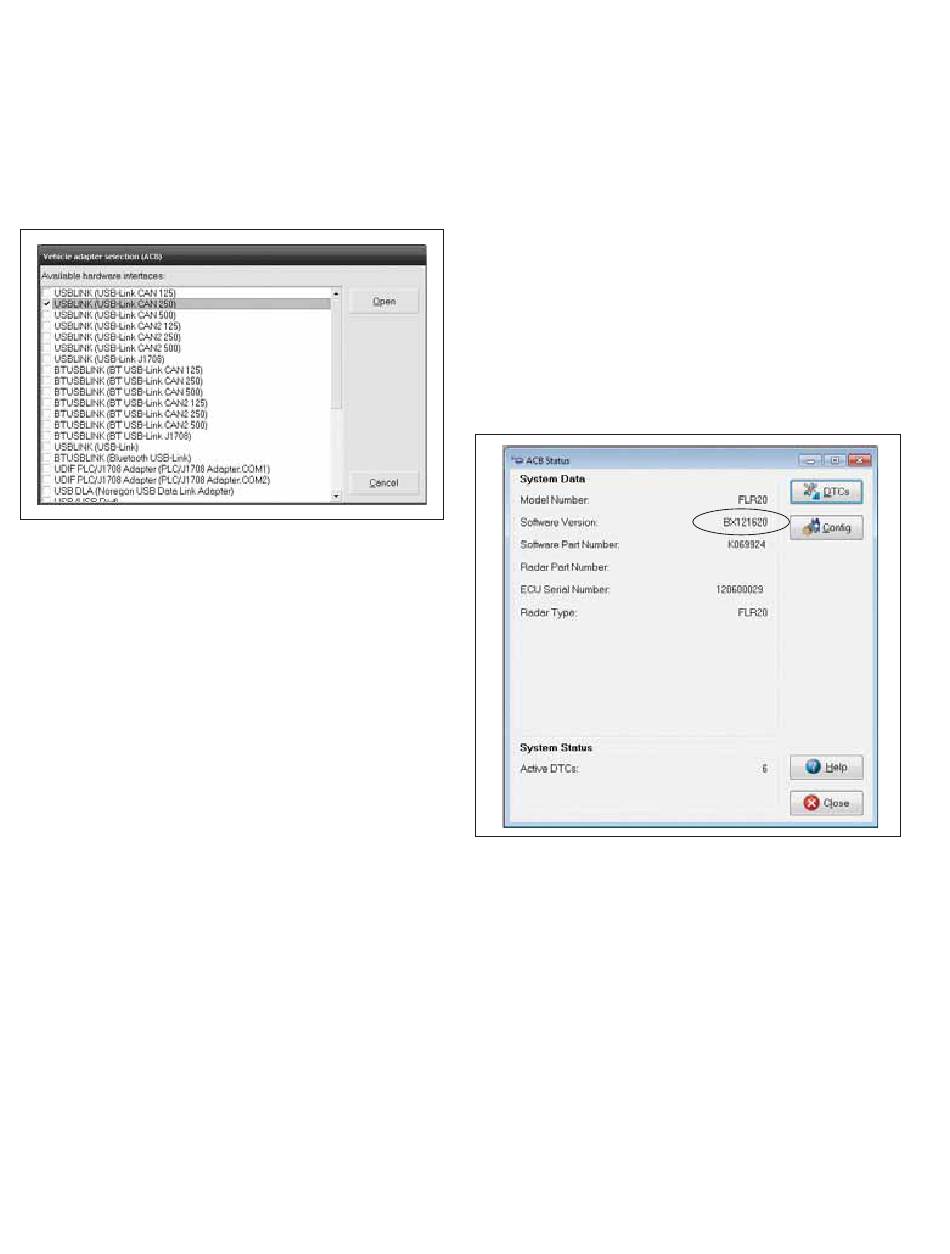

FIGURE 15 - BENDIX ACOM
HARDWARE INTERFACE SCREEN
18
®
DIAGNOSTICS SOFTWARE -
4.2 READING DIAGNOSTIC
TROUBLE CODES (DTCs)
If the system generates a Diagnostic Trouble Code (DTC),
where a lamp or icon is illuminated on the instrument
cluster or the driver display, then a current version of ACom
Diagnostics software is required. Select "Wingman" from
® the starter screen, then "Start with ECU". Click "DTC"
to show the diagnostic trouble codes. See Appendix G
for screen shots. See Section 4.3 for a complete table
showing DTCs and troubleshooting information.
4.2.1 READING THE SYSTEM
SOFTWARE VERSION
If during troubleshooting, you are asked for the Wingman
Advanced software version, the number is found on the
"Wingman Advanced Status" tab. See Figure 16. Also,
see Section 5.1 for other system indicators.
FIGURE 16 - BENDIX
STARTER SCREEN SHOWING SOFTWARE VERSION
® ®
ACOM DIAGNOSTICS SOFTWARE -
