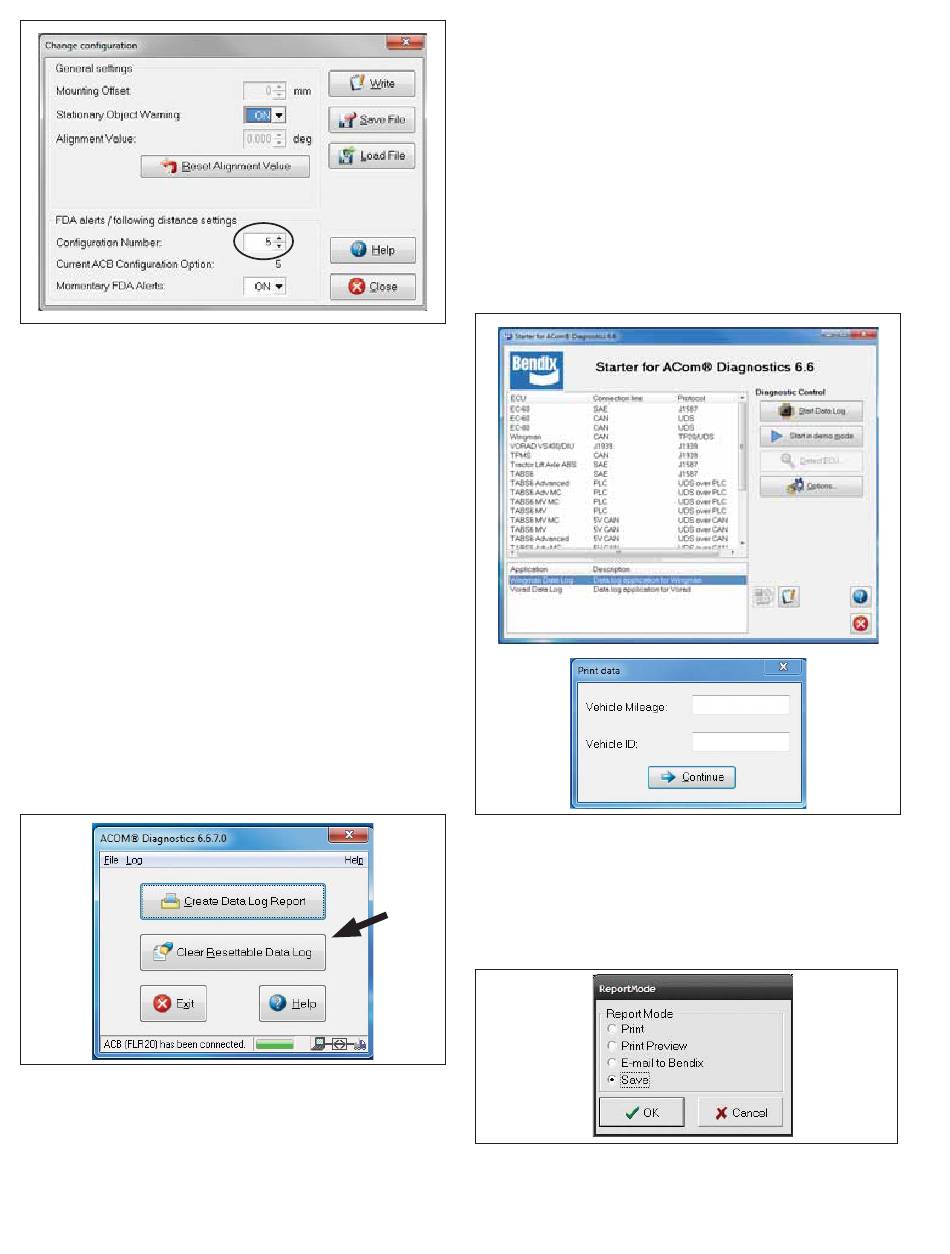

FIGURE 18 - BENDIX ® ACOM
CONFIGURATION NUMBER (SHOWING CONFIGURATION
ONE SELECTED). SEE ALSO TABLE 8.
Changing confi guration allows the fl eet user to adjust both
the following distance alerts and the following distance
behind a detected forward vehicle. See Figure 18.
®
5.5 BENDIX WINGMAN
SYSTEM DATA
NOTE: A license key is required from Bendix in order to
engage the data collection ability of the system. Call the
Bendix Tech Team at 1-800-AIR-BRAKE (1-800-247-2725,
option 2) for more information.
5.5.1 DATA AVAILABILITY
Contact Bendix (1-800-AIR-BRAKE (1-800-247-2725,
option 2)) for the ACom Diagnostics software license key
and the set-up procedure.
Data will not be stored by the system until the "Clear
Resettable Data Log" (see Figure 19) is selected and the
proper Bendix ACom Diagnostics license key is present.
® ®
FIGURE 19 - CLEARING THE RESETTABLE DATA LOG
5.5.2 DATA OVERVIEW
At the fl eet's discretion, Wingman Advanced makes data
available (see Figure 22), in a data log, regardless of whether
or not Advanced is used. The log can be reset using the
Bendix ACom Diagnostics software as often as needed.
30
® DIAGNOSTICS –
® ™
ADVANCED
5.5.3 EXTRACTING DATA AND
SAVING A REPORT
The Bendix ACom Diagnostics tool and User
Guide is available online at "ABS Software" link un-
der "Services and Support" on the Bendix website
(www.bendix.com).
After a successful connection, the service technician will
be presented with the window shown in Figure 20.
Selec t " St ar t AC B Dat a Lo g". T he ser vic e
technician will be asked to enter the vehicle ID and
mileage. This data will be stored in the report.
See Figure 20.
FIGURE 20 - VEHICLE DATA
The service technician can choose whether to "Print",
"Print Preview", "E-mail", or "Save" the report to disk. See
Figure 21. The data can be saved as a comma delimited
fi le or an HTML web page fi le.
See Figure 22 on next page for a sample report.
FIGURE 21 - REPORT MODE
