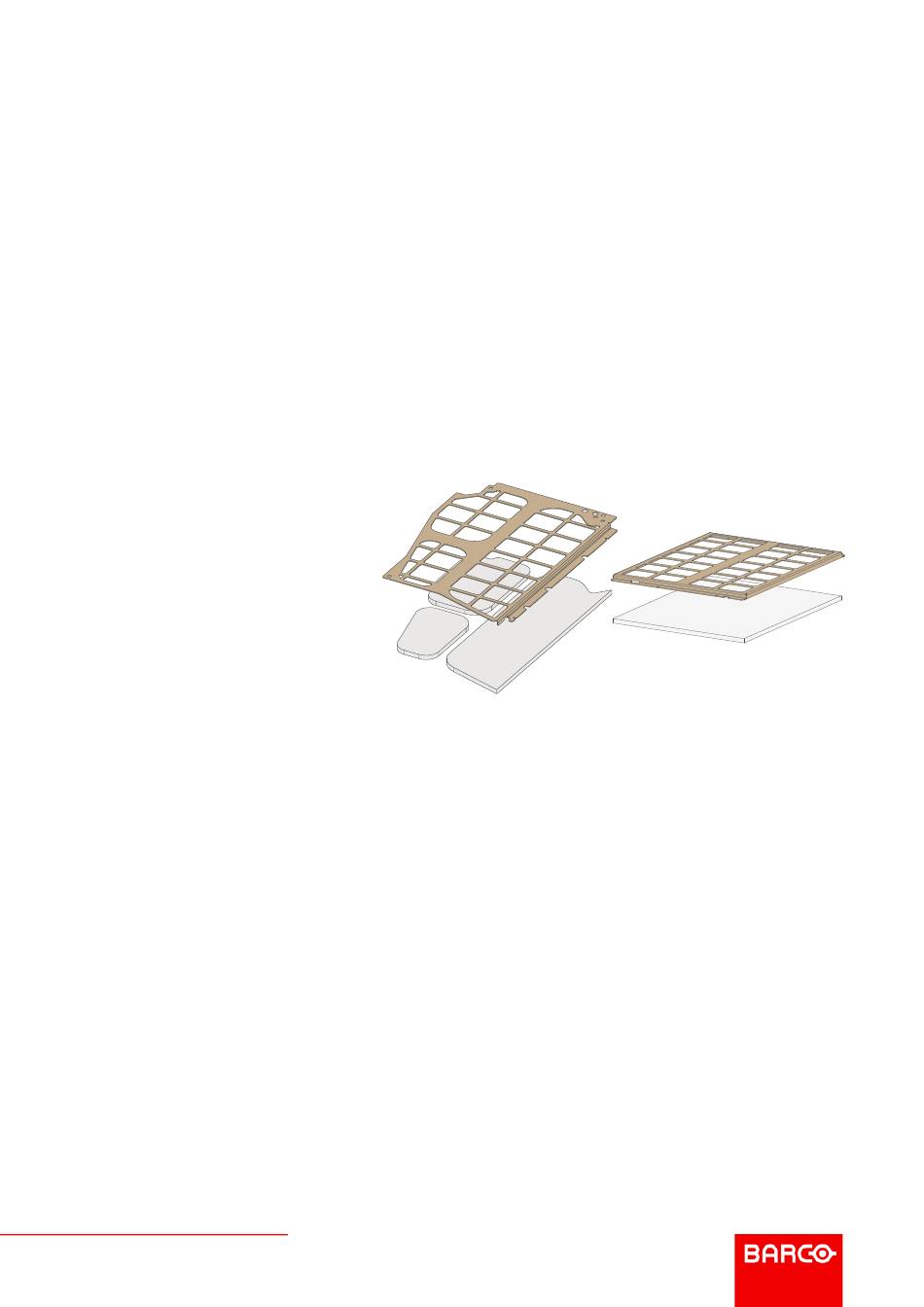

- Page 1 UDX Bottom filter Installation manual ENABLING BRIGHT OUTCOMES...
-
Page 3: About This Chapter
Safety Safety instructions ..........................4 Safety precautions Hazardous Chemicals ..................4 About this chapter Read this chapter attentively. It contains important information to prevent damage to the projector. Ensure that you understand and follow all safety instructions mentioned in this chapter before installing the bottom filter. After this chapter, additional “warnings”... -
Page 4: Safety Instructions
Safety 1.1 Safety instructions WARNING: Before Mounting and removing the bottom filter, disconnect the power to the unit mains appliance inlet. Installation personnel This assembly of the frame and installation of the projector must be performed by authorized and qualified technical personnel only. - Page 5 Safety Safety Data Sheets for Hazardous Chemicals For safe handling information on chemical products, consult the Safety Data Sheet (SDS). SDSs are available upon request via safetydatasheets@barco.com. R5914789 /00 UDX Bottom filter...
- Page 6 Safety R5914789 /00 UDX Bottom filter...
- Page 7 Bottom filter Overview ............................8 Mounting the filter on UDX with rigging frame..................8 Mounting the filter on UDX without rigging frame ................10 Maintenance of the filters ......................11 Washing and drying the dust filters....................12 R5914789 /00 UDX Bottom filter...
-
Page 8: Required Tools
2.1 Overview Purpose of the UDX series bottom filter The UDX series bottom filters are exclusively designed for the Barco UDX projectors and can thus not be used on any other equipment. The filters has are designed to help protect the LDMs present in UDX projectors, while mounted in environments with polluted air. - Page 9 Bottom filter Image 2–1 Location of the skew actuator Release two of the M8 screws and washers mounted into the bottom of the rigging frame, as indicated in the following picture (reference 1, Image 2–2). Use a 6 mm Allen wrench. Release two of the M4 screws on the bottom plate of the projector as indicated in the following picture (reference 2, Image...
- Page 10 Bottom filter Image 2–3 Placing the filter foam pieces Place the filter frame on the projector bottom plate as illustrated and drive the previously released screws back in. Image 2–4 If the UDX motorization is installed on the rigging frame, mount back the Skew actuator from the rigging frame.
- Page 11 Bottom filter How to mount Flip the projector upside down. Release four screws from the bottom plate, as indicated by the following picture (reference 1, Image 2–5). Use a 3 mm Allen wrench to loosen the screws. Image 2–5 Screws from the bottom plate to be removed Mount the foam and filter on the bottom plate as illustrated in the following picture.
- Page 12 2.5 Washing and drying the dust filters About filter washing and drying For environments where popcorn grease and such can contaminate the filters, Barco advises the client to purchase one extra set of filters to cover drying time, as well as taking following extra precautions and instructions pertaining to filter cleaning and drying.
- Page 13 THE PROJECTOR. THIS CAN HAVE SERIOUS SAFETY CONSEQUENCES AS WELL AS JEOPARDIZE THE INTERNAL OPTICS OF THE SYSTEM. CAUTION: Do not install/use damaged dust filters. Replace damaged dust filters immediately with new dust filters of the same type. See https://my.barco.com for the correct replacement part. R5914789 /00 UDX Bottom filter...
