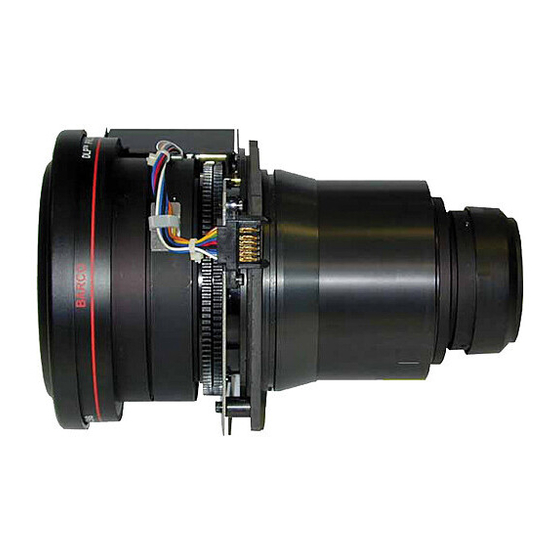

- Page 1 BARCO PROJECTION SYSTEMS TLD(2.0-2.8):1 R9840680 INSTALLATION MANUAL LENS TLD(2.0 - 2.8):1 for SLM Series projectors Date:11.12.2000 Rev : 01 Art. No.: R5976221...
- Page 2 TLD(2.0-2.8):1 Lens R9840680 What has to be This new lens has to be installed on the SLM series projector done Necessary Tools no tool necessary Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly. Installing the...
- Page 3 TLD(2.0-2.8):1 Lens R9840680 (Continued) What has to be Removing the lens on the SLM series projector done Necessary Tools no tool necessary Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly. Removing the To remove the lens, follow the next procedure:...
- Page 4 Lens Step Action Press the BARCO key on the RCU to display the zoom/focus menu on the screen. To focus or zoom the image : Push the cursor keys é or ê to zoom and ç or è to focus the center of the image.
- Page 5 TLD(2.0-2.8):1 Lens R9840680 Lens Cleaning To minimize the possibility of damaging the optical coating or scratching exposed lens Procedure surface, we have developed recommendations for cleaning the lens. FIRST, we recommend you try to remove any material from the lens by blowing it off with clean, dry deionized air.
