- Page 1 QHD (2.1-3.0:1) Lens Installation manual R9849810 R5976893/00 22/03/2006...
- Page 2 Barco nv Presentations Noordlaan 5, 8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.35.86.51 E-mail: presentations.bid@barco.com Visit us at the web: www.barco.com Printed in Belgium...
-
Page 3: Kit Description

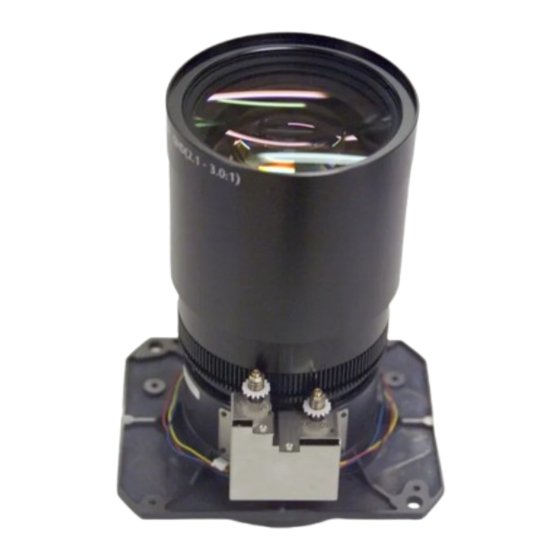

1. Kit description 1. KIT DESCRIPTION Domain of application Where used The QHD (2.1 -3.0 : 1) lens may be used on the Barco iCon projectors as well as on the BarcoReality SIM6 projectors. Image 1-1 iCon projector view Image 1-2... - Page 4 Never place the lens unit on its top side (fixation of the ring on top side) • Never grasp the lens by the ring • Always place the lens on its bottom side • Always use the lens cover Image 1-3 R5976893 QHD (2.1-3.0:1) LENS 22/03/2006...
-
Page 5: Installing The Lens
2. Pull the cable basket so as to free it from the bottom locks. How to install the cable basket 1. Place the 2 feet of the cable basket into the 2 bottom locks of the projector. R5976893 QHD (2.1-3.0:1) LENS 22/03/2006... - Page 6 2. Open the protective cloth (enlarge the opening) and pull the lens cover gently towards the front of the projector. 2.2.3 Removing the installed lens How to remove the installed lens ? 1. Disconnect the lens from the motor connection board 2. Support the lens with one hand. R5976893 QHD (2.1-3.0:1) LENS 22/03/2006...
- Page 7 3. Connect the lens to the motor connection board 2.2.5 Mounting the lens cover How to mount the lens cover 1. Open the protective cloth and slide the cover over the lens. 2. Bring the lens cover backwards and position it. R5976893 QHD (2.1-3.0:1) LENS 22/03/2006...
- Page 8 1. Open the lens cover of the projector by pivoting it up and take it off. Image 2-8 2. Pull the lens locks levers backwards to open the lens locks. Image 2-9 3. Put the lens on the lens holder. R5976893 QHD (2.1-3.0:1) LENS 22/03/2006...
- Page 9 5. Plug the wires of the motor unit into the connector Image 2-11 6. Re-install the lens cover. The procedure for the mounting of a Scheimpflug lens is different. Refer to the installation manual of the lens. R5976893 QHD (2.1-3.0:1) LENS 22/03/2006...
