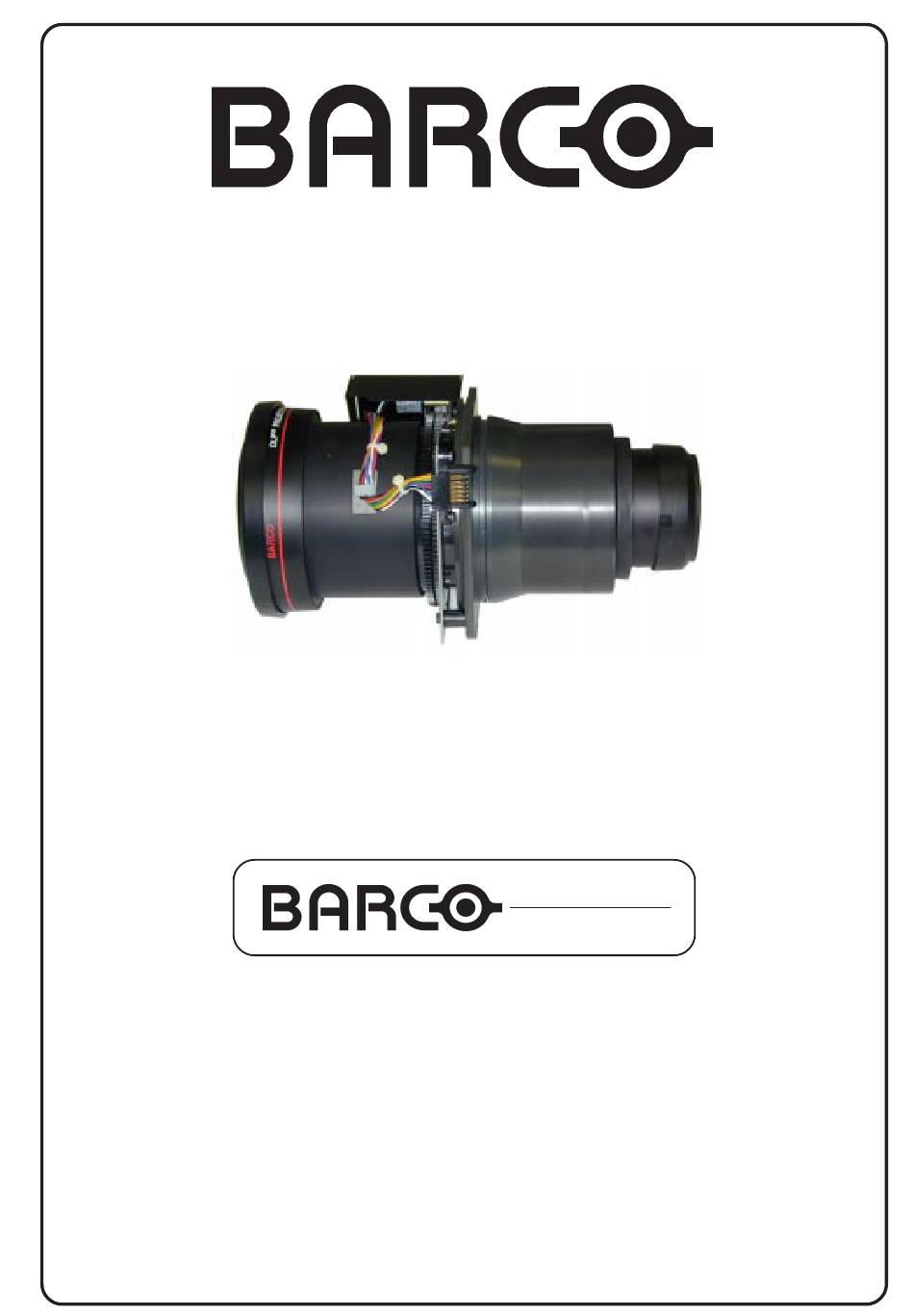

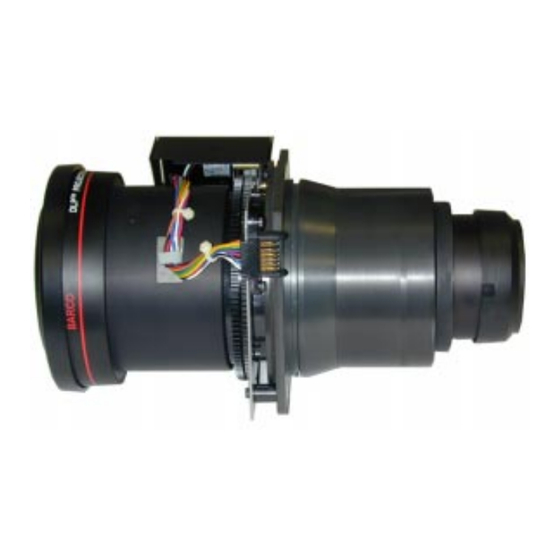

- Page 1 BARCO PROJECTION SYSTEMS TLD(2.8-5.0):1 R9840690 INSTALLATION MANUAL LENS TLD(2.8 - 5.0):1 for SLM Series projectors Date:16.11.2000 Rev : 00 Art. No.: R5976222...
- Page 2 Attention: for a table mounted projector, hold the projector when pushing the lens into the lens block to avoid sliding off from the table. Illustrations Image 2 Image 1 Image 3 To be continued on next page. BARCO ——————————————————— 1 ————————————— Projection Systems...
- Page 3 Move the handle (A) of the lens anchor system to the left 2&3 Take the lens unit out of the lens block. Illustrations Image 1 Image 2 Image 3 To be continued on next page. BARCO ——————————————————— 2 ————————————— Projection Systems...
- Page 4 Lens Step Action Press the BARCO key on the RCU to display the zoom/focus menu on the screen. To focus or zoom the image : Push the cursor keys é or ê to zoom and ç or è to focus the center of the image.
- Page 5 Do not use fabric softener when washing the cleaning cloth or softener sheets when drying the cloth. Do not use liquid cleaners on the cloth as doing so will contaminate the cloth. Order number for a new Toraysee cloth : R379058. Toraysee Cloth Order Number BARCO ——————————————————— 4 ————————————— Projection Systems...
