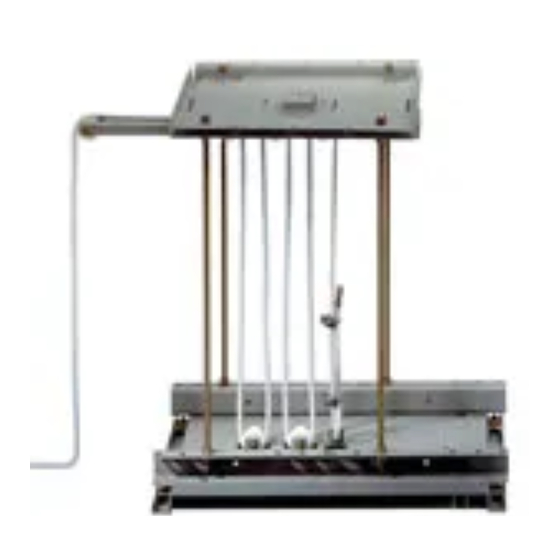

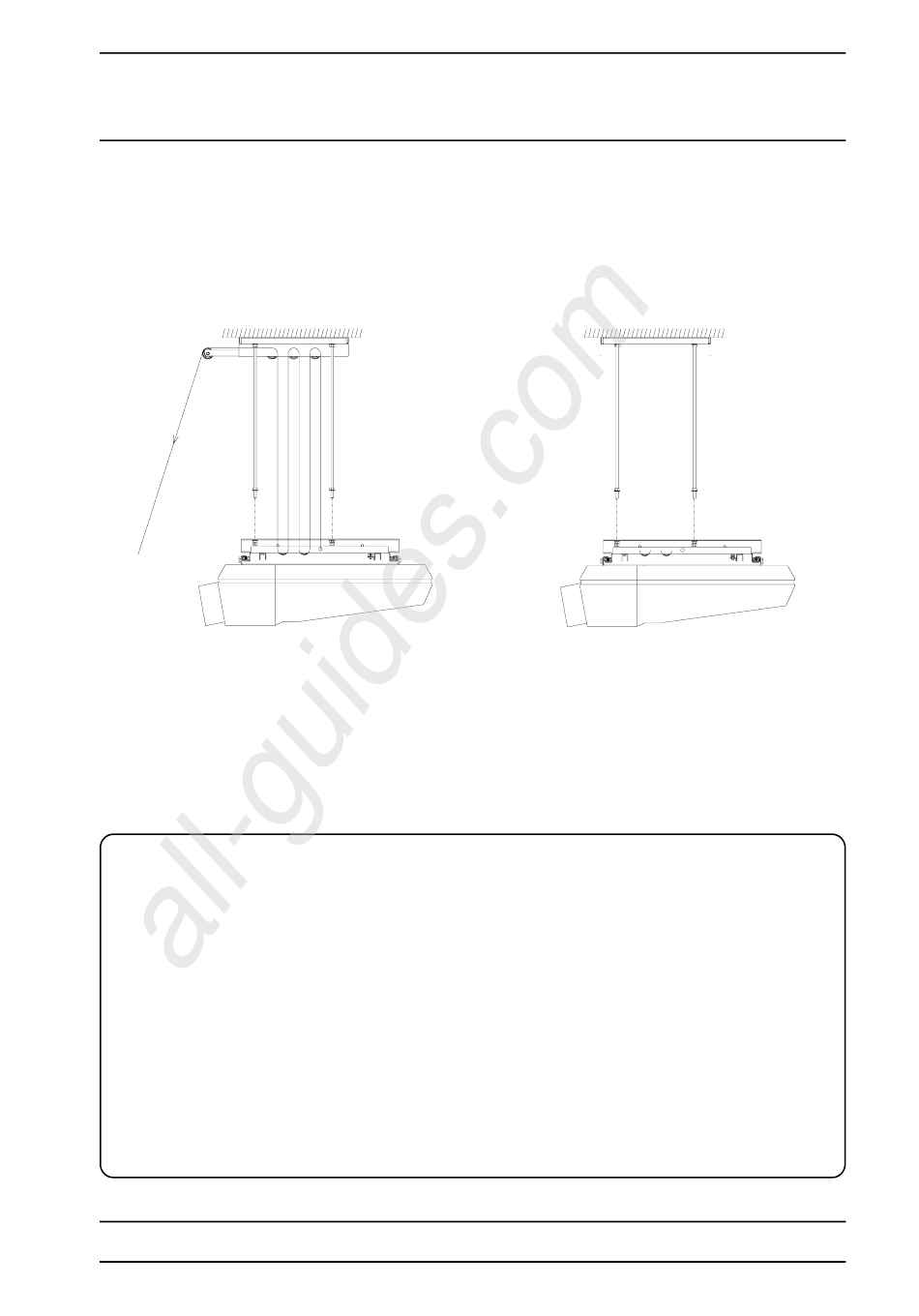

Ceiling support with pulley
1
2 3
How to mount the Ceiling Support to the ceiling is for both products the same.
For the support without pulley, skip the paragraphs handling about the pulley on the next pages.
THIS SUPPORT IS DESIGNED FOR USE ONLY WITH
THE BARCO 800 AND 1000 SERIES PROJECTORS.
USE WITH OTHER APPLIANCES MAY RESULT IN IN-
STABILITY CAUSING POSSIBLE INJURY
Installation guidelines
All manuals and user guides at all-guides.com
Ceiling support
CAUTION
SEE ALSO PAGE 2
R9827342
Ceiling support without pulley
1
2 3
Art no : R5975693 rev-06
Date: 03/06/98
R9827341
R9827342
Page 1
