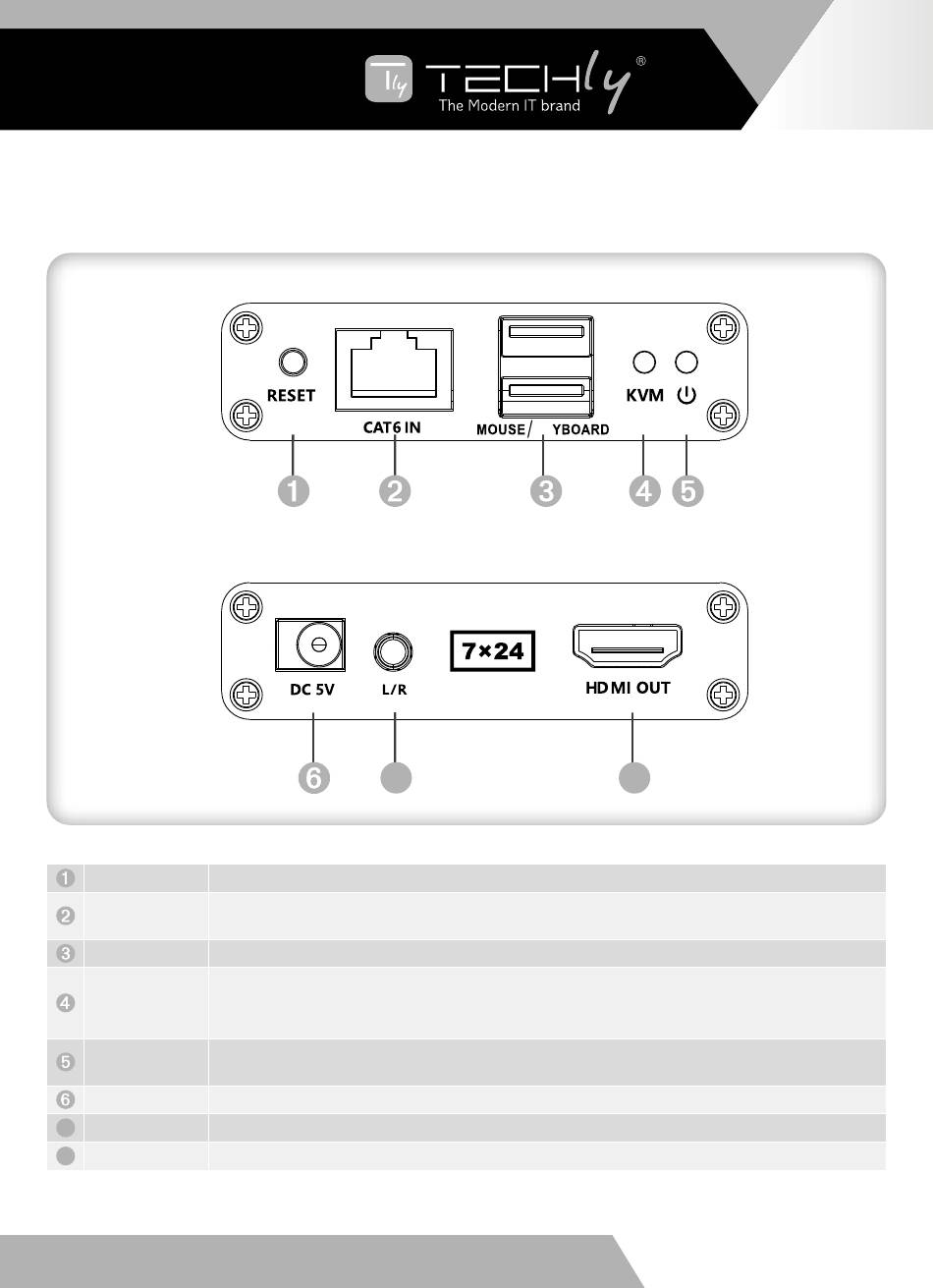

2. Receiver
Reset button
Press the button to restart the device
RJ45 Signal
Input modulated HDMI signal
Output
USB-A port
Connect mouse and keyboard
a) The host computer is not connected and the indicator light is off
KVM indicator
b) Connect to the host computer, the indicator light is always on
c) The mouse and keyboard work normally, and the signal transmission indicator flashes
Power/Signal
a) When power is on and no HDMI signal is transmitted, the indicator flashes
indicator
b) When power is on and HDMI signal is transmitted, the indicator is always on
DC 5V input
Connect to the 5V1A DC power adapter
7
3.5mm L/R out Connect headphones or power amplifiers to output stereo audio
8
HDMI output
Connect to a HDMI source device
7
8
