3. Description and operation

Description:
The SunBox consists of a mounted and wired cabinet prepared to include up to
2 Turbo Energy Lithium Batteries (Lithium Series 48V 5.1kWh) and a Turbo Energy
Three Phase Hybrid Series 48V 10.0.
The system includes several protections for both DC and AC:
Continuous current (DC)
Six 15A fuses
-
AC (Protections)
A magnetothermal switch
-
The machine has fast MC4 links that facilitate the connection of each string.
In terms of support and handling, the system includes four wheels that can
support a load of 280 Kg.
Operation mode:
This SunBox is designed to work in self-consumption mode. Depending on the
energy coming from the photovoltaic panels, there are two different situations:

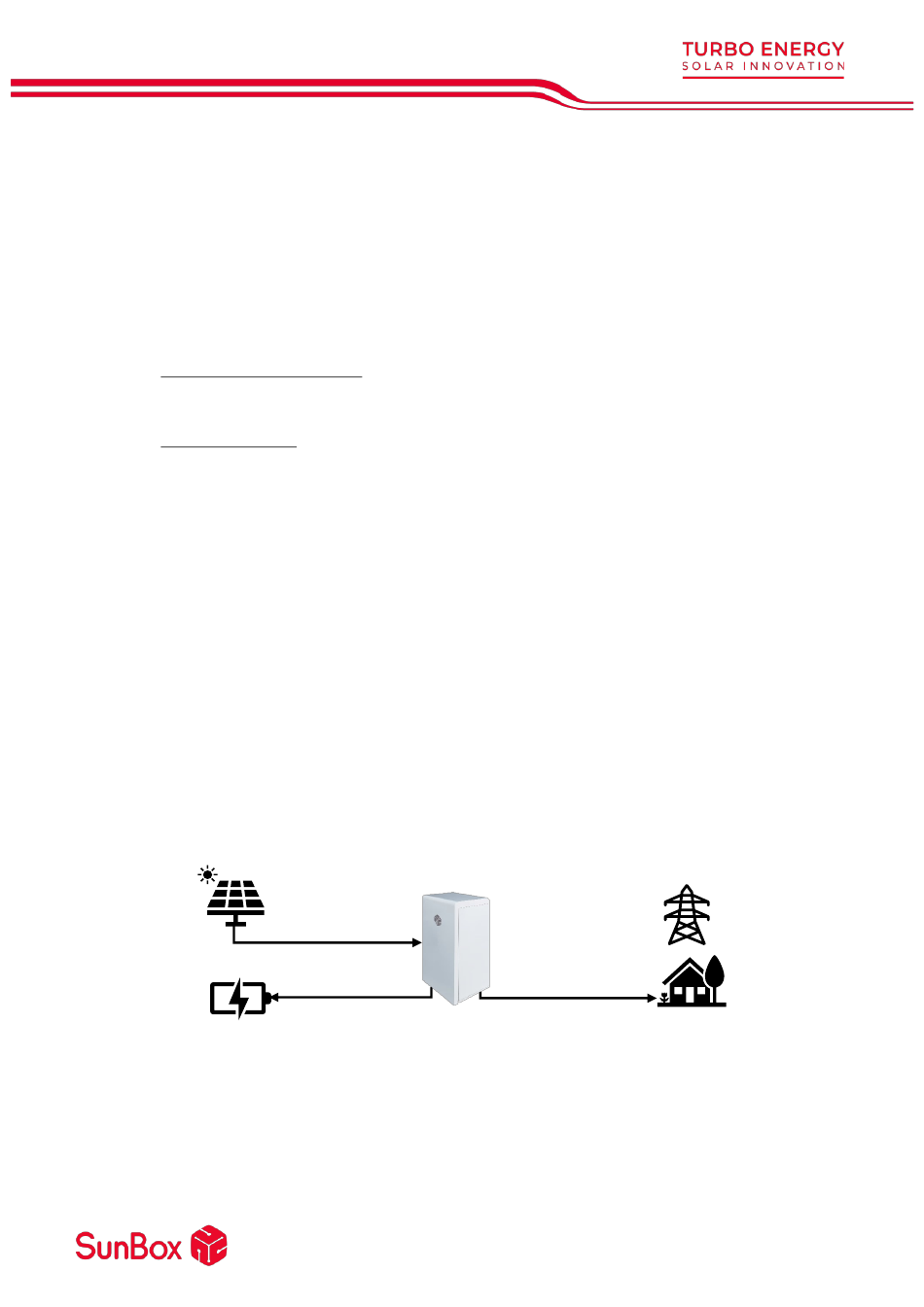

a) When the demand for electricity consumption is lower than the energy
produced by photovoltaic panels, the Inverter transforms the DC into AC
to meet the demand for electricity, while charging the batteries with
excess power. In this way energy is accumulated for later use at times
when energy production is not sufficient.
b) When the demand for electricity consumption exceeds the energy
produced by photovoltaic panels, the Inverter transforms the DC into AC
