  • Page 1 Instruction manual SunBox Model H...
  • Page 2 ENERGY S.L. being the intellectual property of the manuals of the corresponding suppliers. Editor: Turbo Energy S.L. Important note: The satisfaction of the end user will depend heavily on having made an adequate estimate of the demand, power, and energy, present and future, to which the equipment will be subjected.

  • Page 3: Table Of Contents

    Content 1. Scope ........................2 2. Description and operation ..................2 Specifications ....................... 4 4. Installation and assembly ..................6 4.1. Recommendations for setting up strings ............6 4.2. Preliminary recommendations for installation ..........6 4.3. DC wiring ......................10 4.4.

  • Page 4: Scope

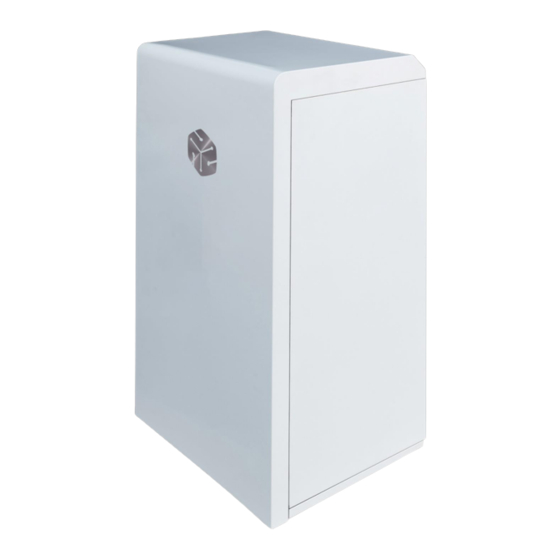

    Description: The SunBox consists of a mounted and wired cabinet prepared to include up to 2 Turbo Energy Lithium Batteries (Lithium Series 5.1kWh) and a Turbo Energy Hybrid Inverter Series HIS5000/48. The system includes several protections for both DC and AC: Continuous current (DC) •...
  • Page 5 Operation mode: The SunBox is a grid-connected system that works synchronously in parallel with a photovoltaic installation. It has two operating modes: Self-consumption mode Depending on the energy coming from the photovoltaic panels, there are two different situations: When the demand for electricity consumption is lower than the energy produced by photovoltaic panels, the Inverter transforms the DC into AC to meet the demand for electricity, while charging the batteries with excess power.

  • Page 6: Specifications

    It is a mode that ensures that, when the grid fails, the critical loads connected continue to operate thanks to the power provided by the generation and/or batteries. Back-up Load 3. Specifications Batteries • Manufacturer: Turbo Energy SL • Model: Lithium Series 5.1kWh • Attached data sheet and instruction manual.
  • Page 7 Inverter/Charger • Manufacturer: Turbo Energy SL • Model: HIS5000/48 • Attached data sheet and instruction manual. SUNBOX - Model H Photovoltaic panels data Max. photovoltaic field power 6500 W Max voltage. DC voltage 550 Voc MPPT working range 100-500Vmp Starting voltage...

  • Page 8: Installation And Assembly

    4. Installation and assembly 4.1. Recommendations for setting up strings 4.2. Preliminary recommendations for installation The installation of the Model H should be carried out in a place protected from inclement weather, and it is especially relevant that its location is kept dry and avoid potentially flooded areas.
  • Page 9 In case batteries need to be installed, the SunBox model H comes ready • to store up to 2 Turbo Energy Lithium Series 5.1kWh batteries. Its installation is explained below. *The Network and Back-up outputs in normal network operation will be the same...
  • Page 10 The overall connection of the SunBox will remain as shown in the following scheme: In this case, you must separate the general loads (top of the image) and the back-up loads (bottom). Therefore, for easier connection and to avoid handling of the connections of the installation loads, the following configuration is proposed: In this way, all the power of the network passes through the equipment and it...
  • Page 11 If you want to independent the network system and prevent possible equipment failures from causing momentary power outages, it is proposed to place an automatic switch that allows network power without going through the SunBox. The SunBox Model H is not prepared to withstand excessively high currents, so for high-power installations, the following connection is recommended:...

  • Page 12: Dc Wiring

    4.3. DC wiring The series of photovoltaic panels shall be carried out as indicated in section 4.1. The cabinet already has the right protections installed for continuous sockets. To access the connections, open the back door of the Model H cabinet. It is very important to note that each positive must be connected to its negative in the cabinet, for this it is recommended to mark the cables or make connections one at a time until the installation is complete.

  • Page 13: Recommendations For Batteries Installation

    the two structures and the 20m for the connection of the structures with the cabinet passing through the grounding, so that all the grounding points are connected to each other. Make sure that the grounding of all cabinet structures are connected to each other via the ground wire. 4.5.

  • Page 14: Commissioning

    7. Turn on all batteries with the power button (On/Off) for 2-4 seconds. For more information read the attached Lithium Series 5.1kWh battery manual. 4.5. Commissioning Once you are finished with all connections, the machine is ready to commission. It will proceed as follows: 1.

  • Page 15: Inverter/Charger Configuration

    5. Inverter/Charger Configuration When programming the inverter, you can choose from various configuration options: 1. Selling first: the priority for excess energy is to deliver it to the grid. 2. Zero Export to Load: Output power supplies Back Up load. 3.

  • Page 16: Troubleshooting

    replaced the line remains current in the presence of solar radiation, and verified that the rest of the lines do have, contact technical service. 8. Troubleshooting Carefully review the content of: Page 10 of the Battery Manual. Page 24 of the Hybrid Inverter Manual...
  • Page 17 TECHNICAL DATA SHEETS APPENDIX INVERTER/CHARGER BATTERIES...
  • Page 18 Technical data Hybrid Inverter Series 3600/48 and 5000/48 years HYBRID INVERTER WITH BACK-UP MODE MAXIMUM CUSTOMER SATISFACTION https://www.turbo-e.com/ https://www.turbo-e.com/...
  • Page 19 Hybrid Inverter Series 3600/48 and 5000/48 Technical Data Technical Data HYBRID INVERTER SERIES HYBRID INVERTER SERIES 3600/48 5000/48 Battery input data Battery type Acid-Lead or Li-Ion Battery Voltage range (V) 40V-60V Imax Charge (A) 120A Imax Discharge (A) 120A Load curve 3 steps/equalization External Temperature Sensor Optional...
  • Page 20 Technical data Battery Lithium Series 48V 5.1 kWh LONG-LASTING LITHIUM-ION BATTERIES years years MAXUMUM CUSTOMER SATISFACTION PLUG & PLAY https://www.turbo-e.com/ https://www.turbo-e.com/...
  • Page 21 Battery Lithium Series 48V 5.1 kWh Technical data Electrical Nominal Capacity 5.12 kWh Usable Capacity 4.6 kWh Depth of Discharge (DoD) Nominal Voltage 51.2V Voltage operating range 48 - 57.6V Cycle Life >= 6000 Physical Weight 52 kg Dimensions 475 x 446 x 200 mm Protection class IP20 Battery type...
