5. Installation and assembly
Recommendations for setting up strings
Voc ≈ 42V
Panel 1660x1004mm
MPPT1 (with 2 identical
strings)
Minimum 7 panels
Maximum 15 panels
These values are approximate, check for each type of panel.
Preliminary recommendations for installation
The installation of the SunBox should be carried out in a place protected from
inclement weather, and it is especially relevant that its location is kept dry and
avoid potentially flooded areas. The operating temperature range should be
considered, which must not exceed 50ºC or be less than 0ºC. Take appropriate
measures to ensure the operating temperature range.
Recommendations for system connection:

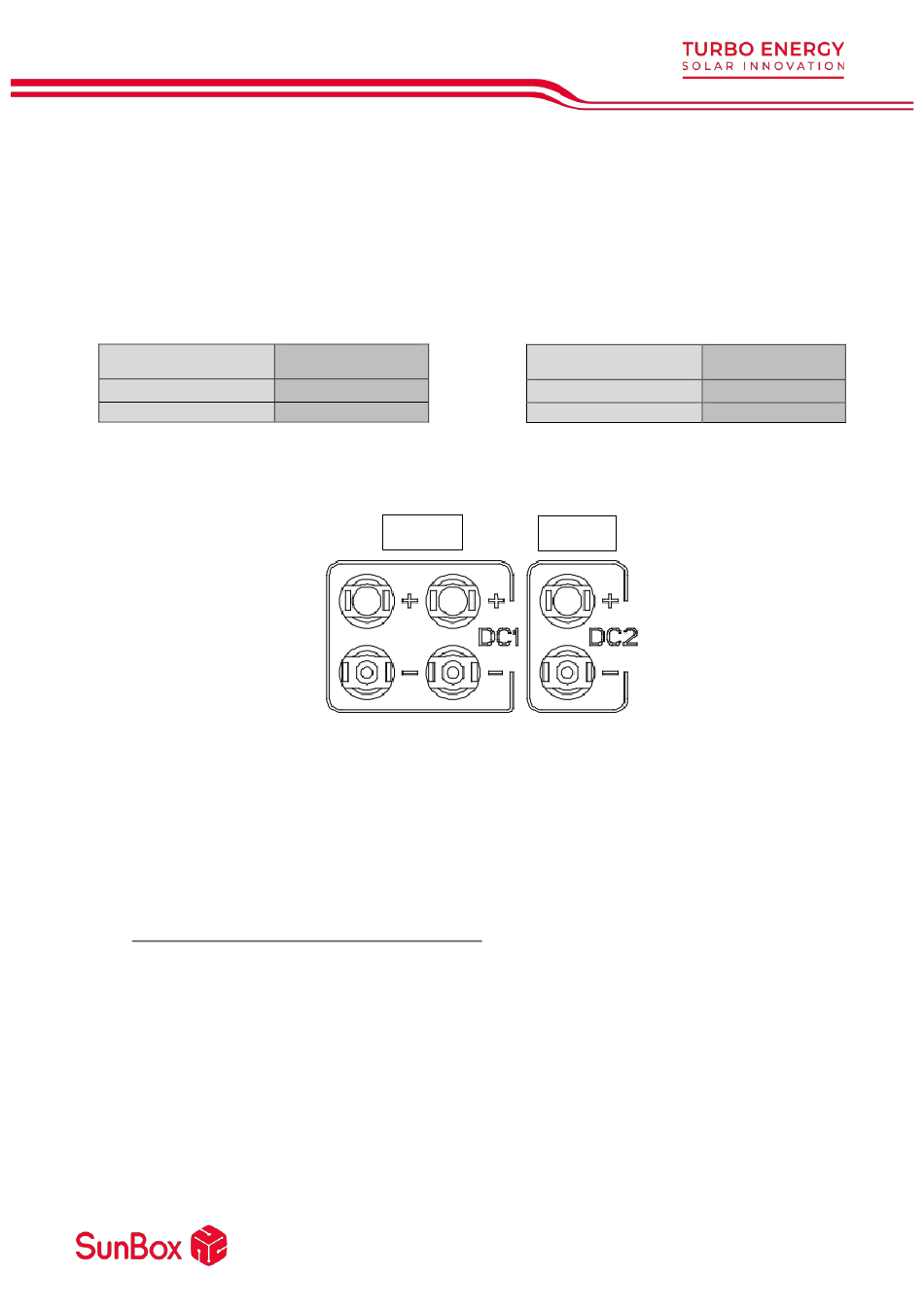

Below is a simplified scheme of the interior of the Three Phase SunBox Series 10.0:
MPPT2
Minimum 7 panels
Maximum 15 panels
MPPT1
Voc ≈ 51V
Panel 2024x1004mm
MPPT1 (with 2 identical
strings)
Minimum 6 panels
Maximum 12 panels
MPPT2
MPPT2
Minimum 6 panels
Maximum 12 panels
