REVEX
3PH from 120A to 210A

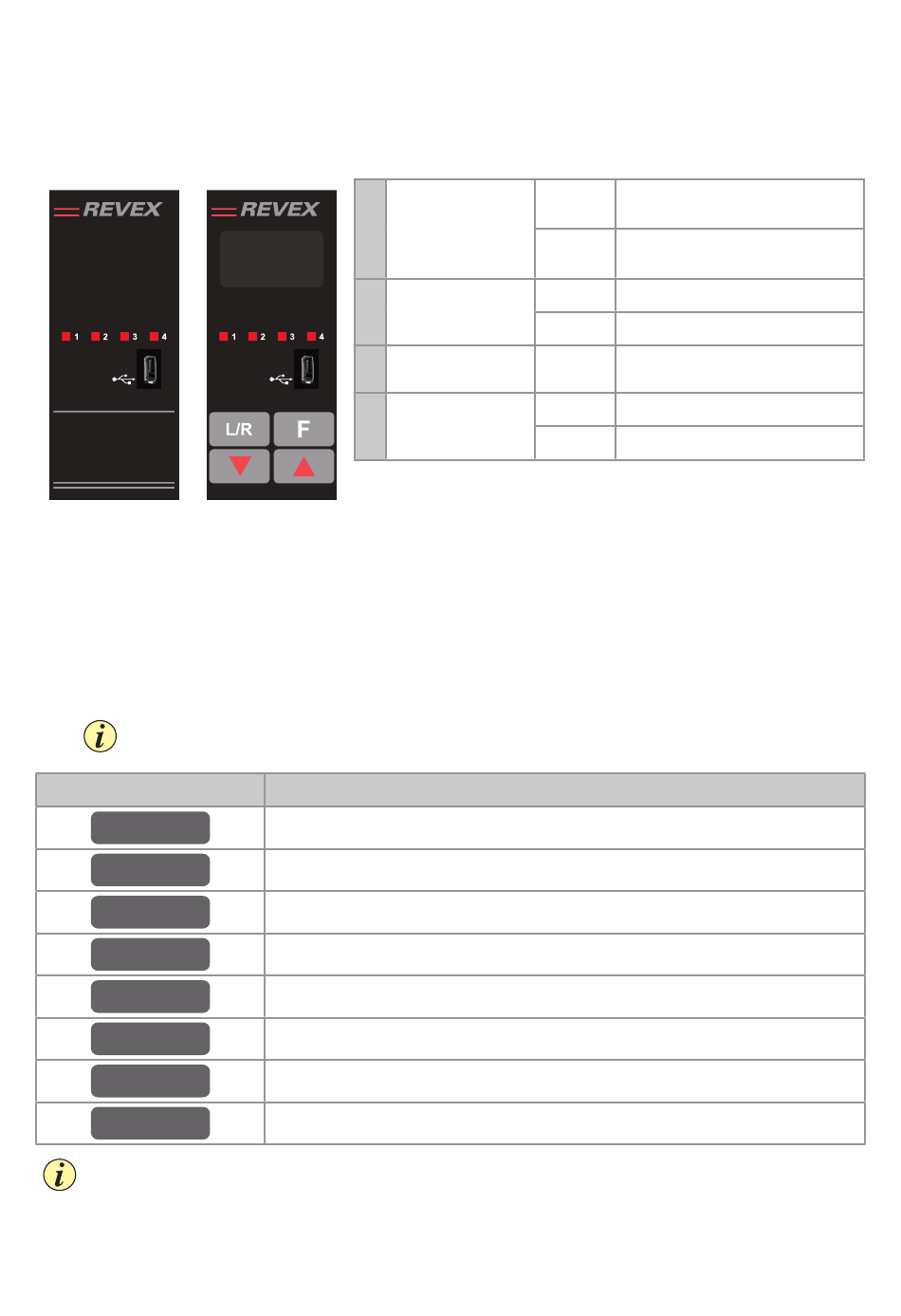

9.2 Led indicators

The four indicators on the control panel show the general state of the power controller.
without display
Option code:
1/2/3/7
on digit 12

9.3 Displayed alarms

Control Panel Display and Keys are Not present for Option Codes: 1/2/3/7
(see table pag. 15)
Alarm or message
HeatBrk
Aux High
Aux Low
ComError
Aux Line Loss
Line Loss
SHRT
SCR Temp
If you have the version without display, all the functions shown on the display can be viewed via
the configurator
1
Aux High
SP 100%
2
3
4
with display
Option code:
0/4/5/6
on digit 12
Description
Heater Break (if available)
Aux voltage too high
Aux voltage too low
Communication Watchdog error
Auxiliary voltage (24V) not present
Line power not detected
Short Circuit on SCR
Thermal Switch over temperature
Flashing
Local/Remote
Off
On
Enable
Off
Communications Flashing Active communications
On
Alarm
Off
28
User's manual
Power output set locally or via
communications
Power output set remotely (via
analog input)
Output enabled
Output disabled
Active alarm
No alarm
