REVEX
2PH 280A

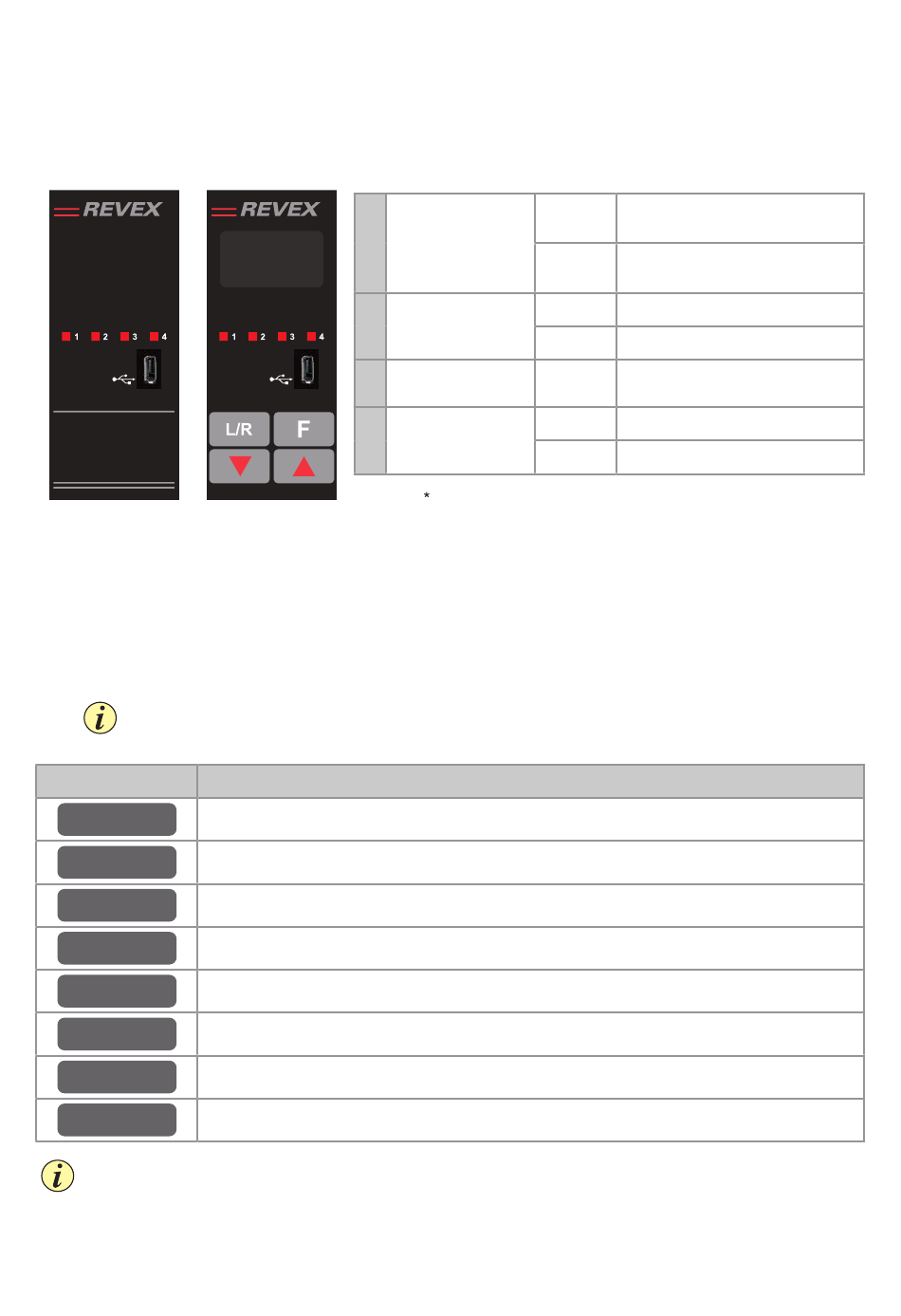

9.2 Led indicators

The four indicators on the control panel show the general state of the power controller.
without display
Option code:
1/2/3/7
on digit 12

9.3 Displayed alarms

Control Panel Display and Keys are Not present for Option Codes: 1/2/3/7
(see table pag. 15)
Alarm or Description
HeatBrk
Heater Break (if available)
Aux High
Aux voltage too high
Aux Low
Aux voltage too low
ComError
Communication Watchdog error
Aux Line Loss
Auxiliary voltage (24V) not present
Line Loss
Line power not detected
SHRT
Short Circuit on SCR
SCR Temp
Thermal Switch over temperature
If you have the version without display, all the functions shown on the display can be viewed via
the configurator
1
Aux High
SP 100%
2
3
4
with display
Option code:
0/4/5/6
on digit 12
Flashing
Local/Remote
Off
On
Enable
Off
Communications Flashing Active communications
On
Alarm
Off
In the version without display, Led 4 lit indicates that one of
the alarms shown in the table below is active. Connect the
configurator and check on the Test page which alarm is active.
26
User's manual
Power output set locally or via
communications
Power output set remotely (via
analog input)
Output enabled
Output disabled
Active alarm
No alarm
