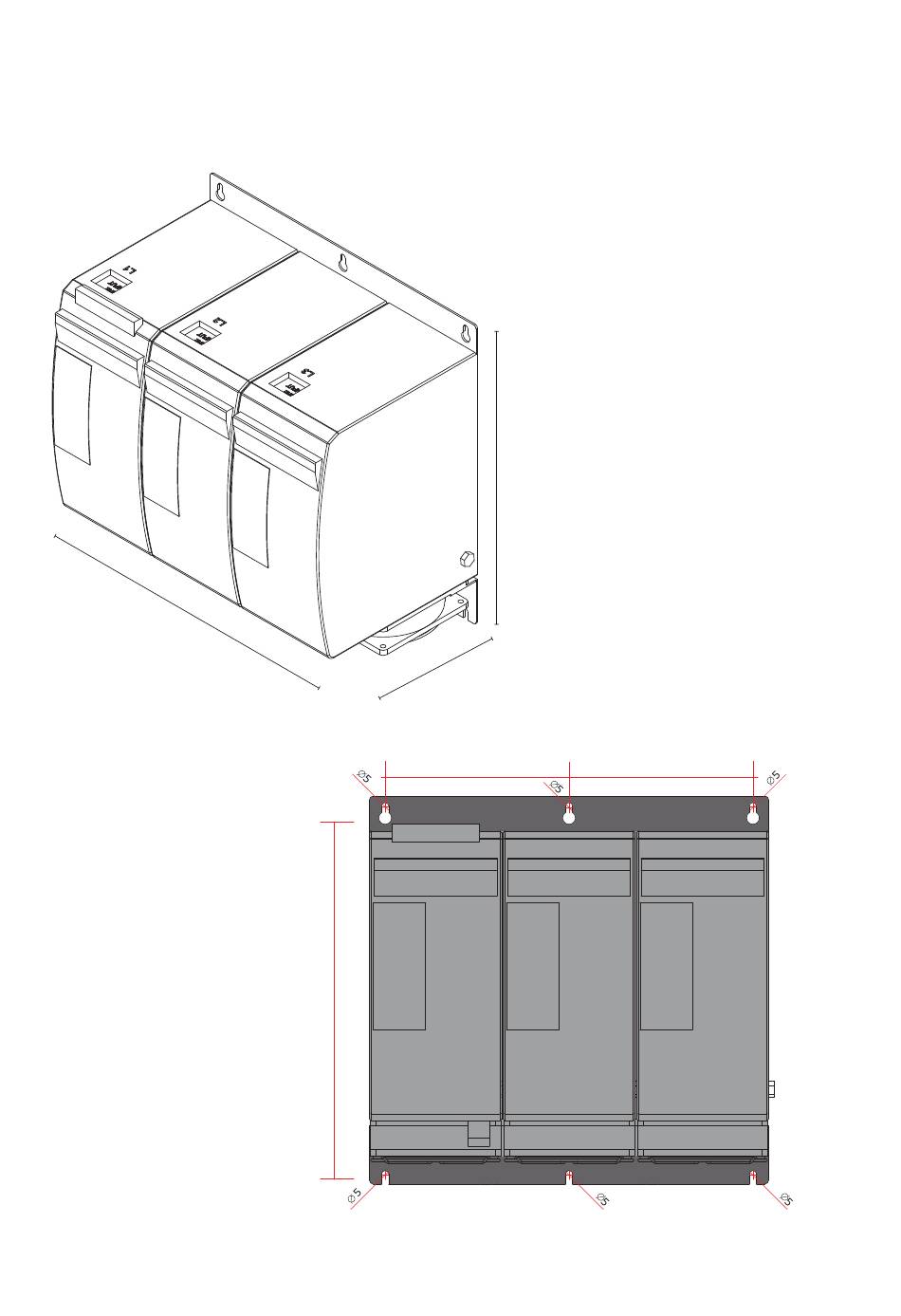

7.1 Dimensions and weight

REVEX 3PH

SR17

W

7.2 Fixing holes

D

129,5

H1

19

Size:

SR17

(120-210A)

W (mm):

279

D (mm):

170

H (mm):

273

Weight (kg):

10,60

H

129,5

User's manual
