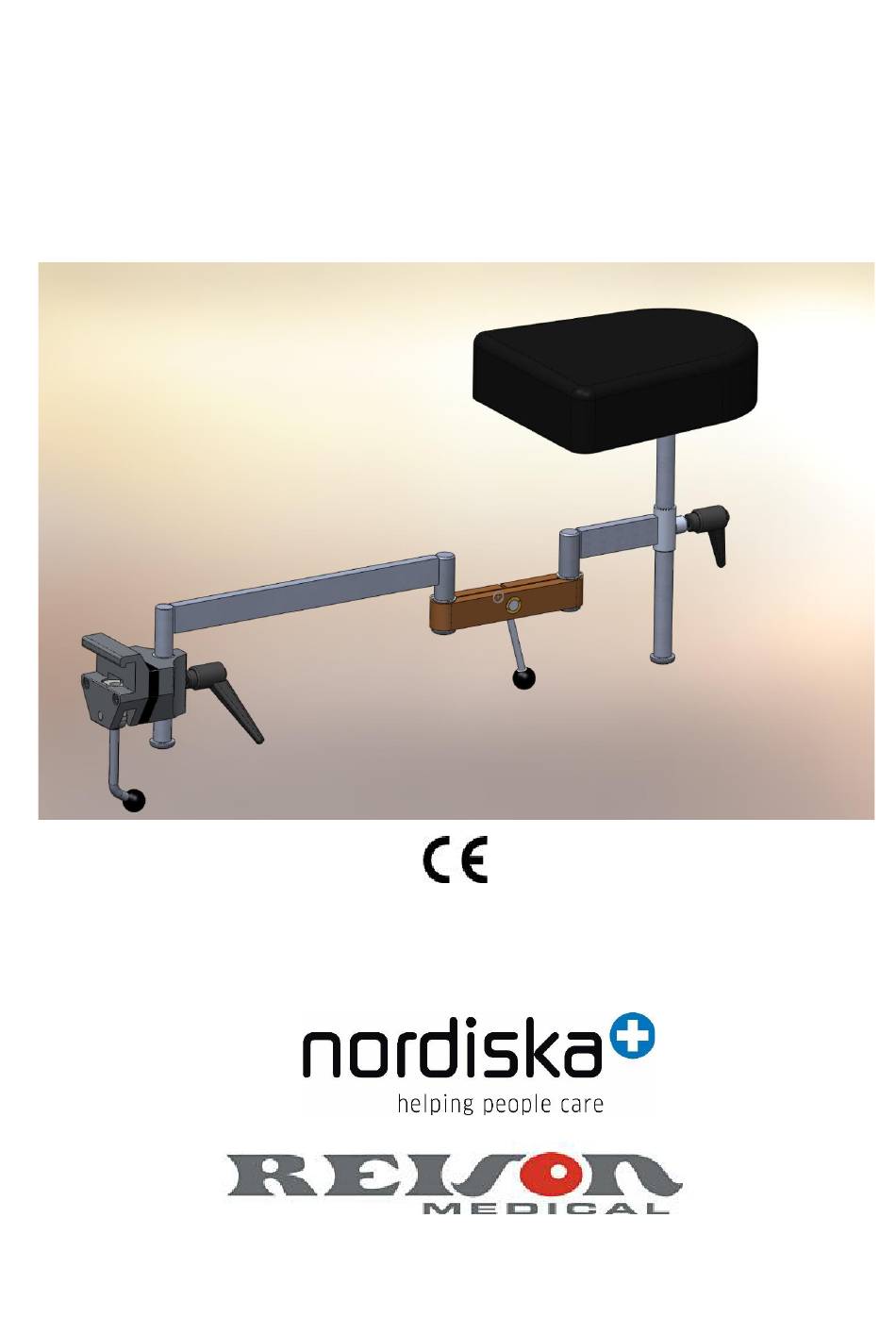

- Page 1 USERS MANUAL ELBOW SUPPORT 10-366 GMDN 35393 PID 59665 10-366 Edit.2 Page 1( 4...
- Page 2 INTRODUCTION The elbow support is intended to be a support for the elbows of the surgeon at such operations where a support is needed. I.e. eye surgery or other kinds of micro surgery. ABOUT USER MANUAL This user manual is for clinical personnel, service personnel and others who need the knowledge about and understanding of how the support works and how it can be used.
- Page 3 GENERAL DESCRIPTION Turning of the complete arm is done by loosen the lock lever anticlockwise. Set the desired position and lock by turning the lever clockwise The elbow support can be set in different positions laterally and longitudinally by turning the lock lever to the left. Set desired position and lock by turning the lever to the right.
- Page 4 TECHNICAL DATA Height 30cm Width 20cm Length maximum extended 64cm Weight 3,5kg Maximum load 25kg Box 240 Eriksbergsvägen 32 A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-366 Edit.2 Page 4( 4...
