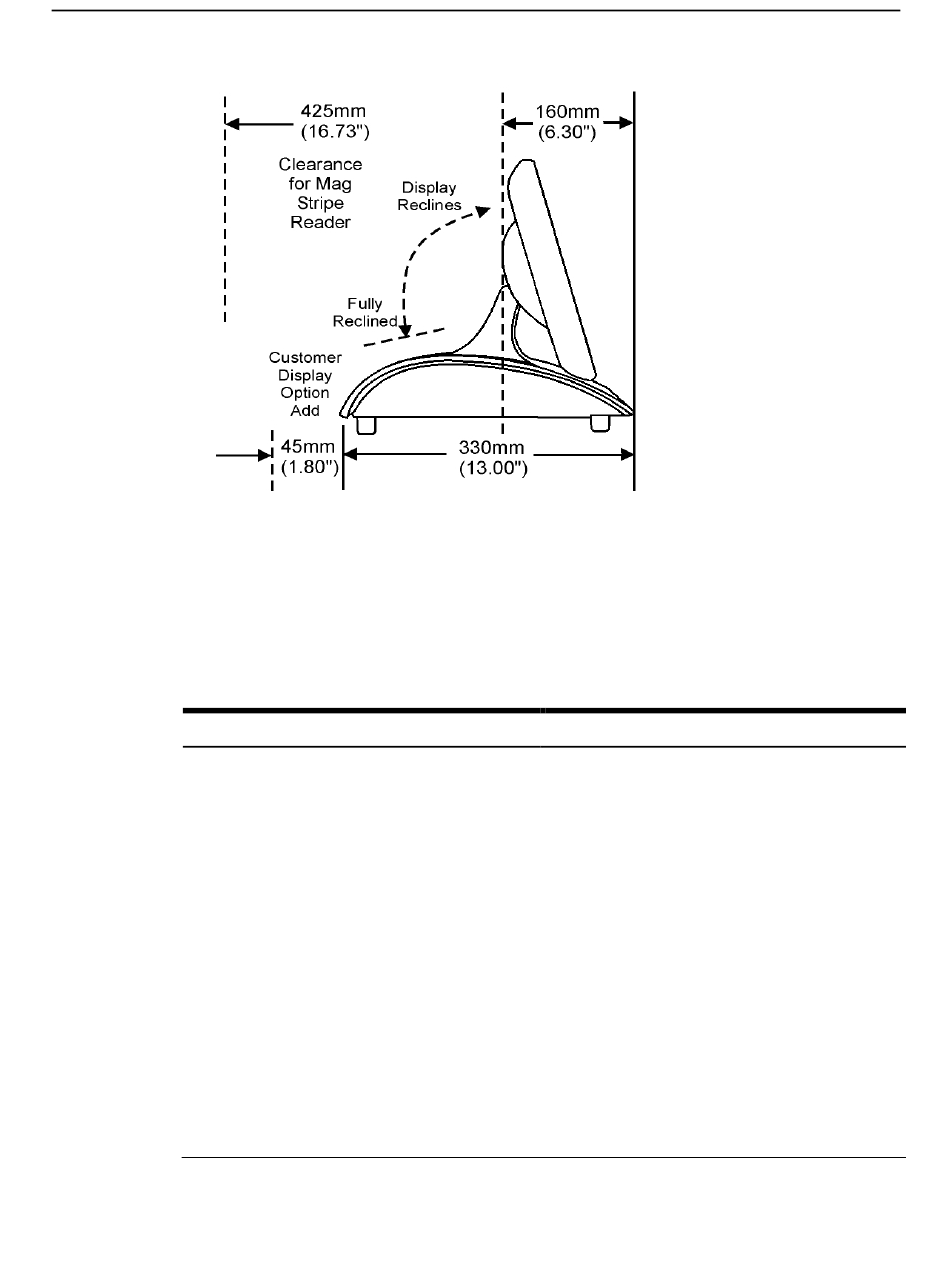

Figure 11 - Dimensions (Side)

Power Considerations for Peripheral Devices

The following table specifies the I/O port or connectors, their related power bus, and the
power consumed by the port depending on BIOS or Diagnostics Utility configurations.
Use the table when considering peripherals.

Table 9 - Port Power Specifications

Port or Connector
12V Power Output
12V Power USB Header
Series 2 Cash Drawer
USB 2.0
Customer Display
USB 3.0
RJ-45 Powered Serial
Mini-USB
44
Available Power
+12V @ 2.5A (30W)
+12V @ 1.5A (18W)
Can be configured as:
+24V @ 0.021A (0.5W)
•
+12V @ 0.042A (0.5W)
•
+5V @ 0.5A (2.5W)
+5V @ 0.1A (0.5W)
+5V @ 0.9A (4.5W)
Can be configured as:
• +5V @ 1.0A (5W)
+9V @ 1.0A (9W)
•
+12V @ 1.0A (12W)
•
+5V @ 0.5A (2.5W)
Product Specifications
