optiView Control Center
(Vsd With part NUMBer 371-02767-xxx (60 hz) or 371-03700-xxx (50 hz))

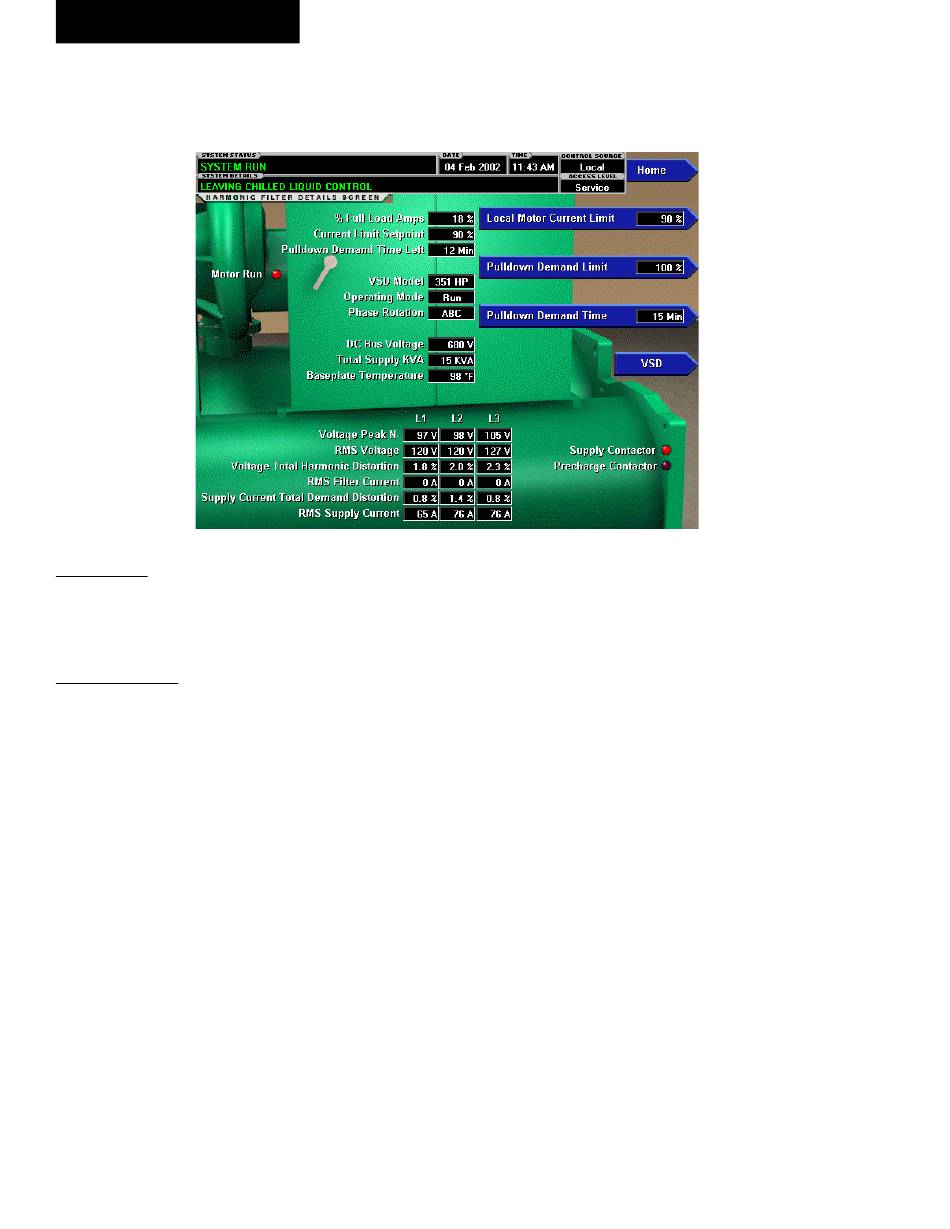

fig. 24
oVerVieW
This screen displays more detailed information pertain-
ing to the IEEE-519 Harmonic Filter.
dispLaY oNLY
Motor Run (LED)
Indicates whether the digital output from the controls is
commanding the motor to RUN.
Motor Current % Full Load Amps
Displays the motor current as a percentage of the Full
Load Amps (FLA) value. For the Variable Speed Drive
this is the data returned by the VSD Logic board.
Current Limit Setpoint
Displays the current limit value in use. This value could
come from a 0-20mA, 4-20mA, 0-10VDC or 2-10VDC
input in Analog Remote mode, PWM signal in Digital
Remote mode, MicroGateway interface in ISN mode,
or a locally programmed value.
Pulldown Demand Time Left
Displays the time remaining in the programmed
pulldown period if the value is nonzero.
98
harMoNiC fiLter detaiLs sCreeN
Operating Mode (Run / Stop)
Indicates whether the Harmonic Filter is operating.
VSD Model
Access Level Required: SERVICE
Displays the horsepower for which the attached Har-
monic Filter is configured.
DC Bus Voltage
Displays the DC Bus voltage as measured by the Har-
monic Filter.
Supply Contactor (LED)
Indicates whether the output to the Supply Contactor
is energized.
Precharge Contactor (LED)
Indicates whether the output to the Precharge Contactor
is energized.
Phase Rotation
Displays the phase rotation detected by the Harmonic
Filter (A, B, C or C, B, A)
Total Supply kVA
Displays the total supply Kilovolt-Amps measured by
the Harmonic Filter.
