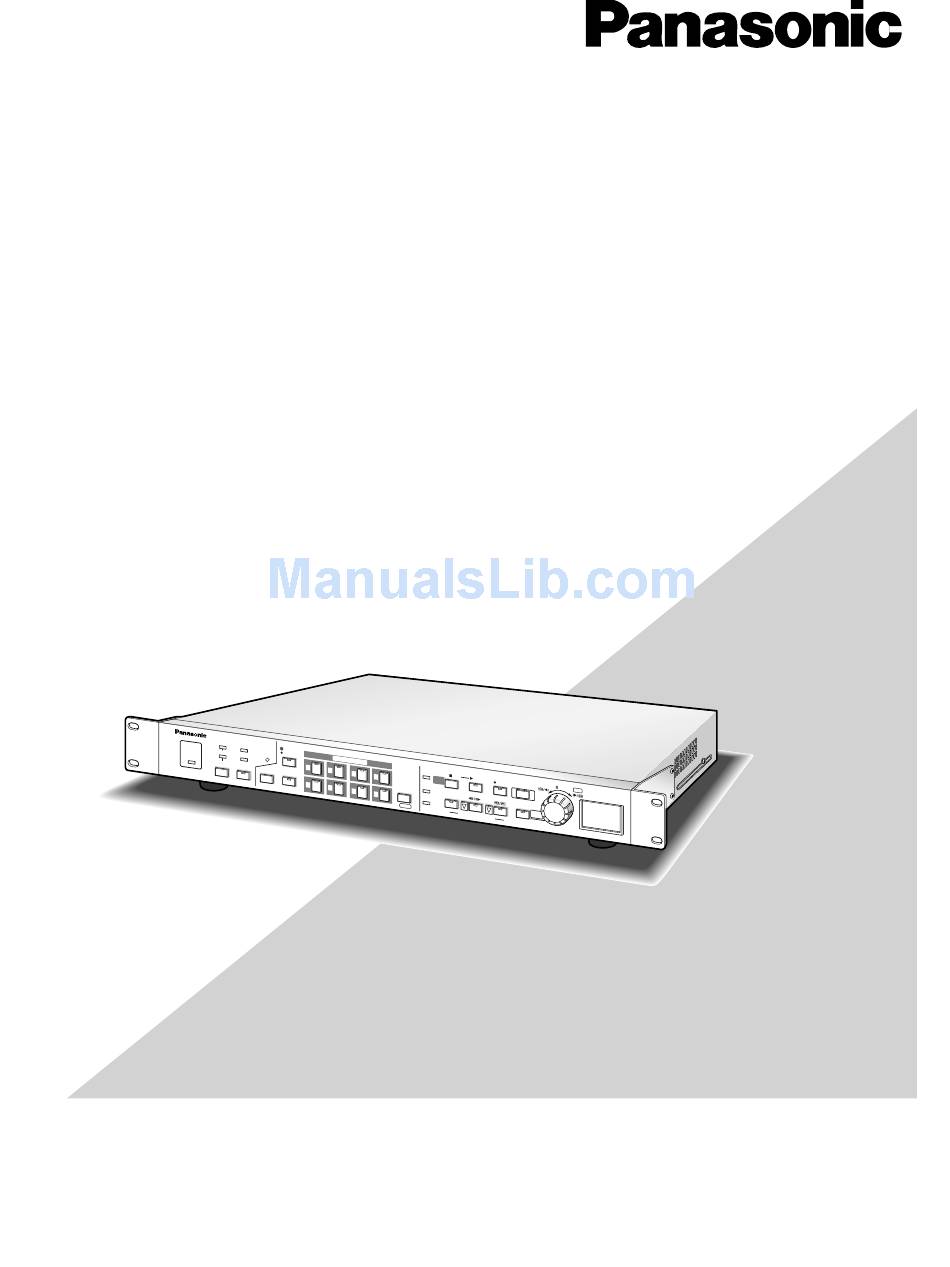

Digital Disk Recorder

Operating Instructions

HD D
4
ST OP
SE TU P
PL AY
/ES C
RE C
MU LTI SC RE
RE C ST OP
PU SH –
FU LL
EN
SE LE CT
AL AR M
8
SE RC H
ER RO R
TIM E& DA
TE
ZO OM
SE AR CH
AL AR M
PL AY MO
DE SE RE
RE CA LL
CT
D ig ita l D
WJ-HD200
Model No.
PA US E
SE T
is k R ec or
de r W J- H
D 20 0

Advertisement

Table of Contents
loading

Related Manuals for Panasonic WJ-HD200

Summary of Contents for Panasonic WJ-HD200

  • Page 1: Operating Instructions

    ER RO R ZO OM Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. Digital Disk Recorder Operating Instructions WJ-HD200 Model No. ST OP SE TU P PL AY /ES C...
  • Page 2 You should note the serial number of this unit in the space provided and retain this book as a permanent record of your purchase to aid identification in the event of theft. Model No. WJ-HD200 Serial No. For U.S.A...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not use near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 4: Table Of Contents

    SETUP PROCEDURES ... 21 PRIOR TO SETUP ... 21 INITIALIZING ... 24 Main Menu WJ-HD200 MAIN MENU ... 25 Timer Recording Setup TIMER REC ... 25 Manual Recording Setup REC SETUP ... 28 Externally Specified Recording Mode EXT REC ... 28 Display Setup DISPLAY SETUP ...

  • Page 5: Preface

    PREFACE The Digital Disk Recorder WJ-HD200 is designed for use within a surveillance system and is a combination unit of a hard disk recorder and 8-input video multiplexer. It records picture and audio data selectively almost up to 10 000 hours in the extended mode on a field basis.

  • Page 6: Precautions

    PRECAUTIONS • Refer all work related to the installation of this product to qualified service personnel or system installers. • Avoid condensation on the surface of the hard disk. Wait until the dew evaporates if any of the following case takes place. The recorder is moved to a place significantly differ- ent in temperature or humidity.

  • Page 7: Major Operating Controls And Their Functions

    RESET LOCK r u o !1 q Operate Indicator (OPERATE) Lights up when the power of the WJ-HD200 Digital Disk Recorder is turned on. w Alarm Indicator (ALARM) Blinks when an alarm condition exists. It changes to a steady light when the activated alarm is reset after elapsing the auto-reset time.
  • Page 8 Orange: The input is not displayed on the monitor, but is recorded on the hard disk. Blink Yellow: The input channel has an activated alarm and it is in alarm recording mode. Blink Green: The input channel has an activated alarm but it is not recorded.
  • Page 9 While opening the time and date search window (TIME & DATE SEARCH): Pressing the JogDial moves the cursor to the next position in the window. Rotating the JogDial increases or decreases the parameter. After specifying the date and time, press the [PLAY] button to start playback.

  • Page 10: Rear View

    Ethernet Hub. $0 Data Port (DATA) This port is used to communicate with the external devices compatible with the PSD (Panasonic Security Data) protocol based on RS485. $1 Cooling Fan Prevents the temperature of the recorder from rising. Do not block the ventilation openings.

  • Page 11: Installation

    INSTALLATION Warning This installation should be made by qualified service personnel or system installers. Notes Places to avoid • Direct exposure to sunlight or near a source of heat such as a radiator. • Very dirty and dusty places. Places subject to strong vibrations. •...

  • Page 12: Mounting In The Rack

    6. Assemble the optional HDD unit onto the bracket using the absorbers, sleeves, and screws provided with the recorder. Mounting in the Rack 1. Remove the four rubber feet by removing the five screws on the bottom of the unit. Remove 5 rubber feet.

  • Page 13: Connections & Dip Sw Setting

    CONNECTIONS & DIP SW SETTING SYSTEM COMPOSITION & CONNECTIONS Three system compositions are introduced depending on the connecting camera type, and other peripherals. <Basic System> Ordinary system-cameras are connected while the multi-screen and spot monitors, microphone, and speakers are also con- nected.

  • Page 14: Ps • Data System

    <PS Data System> • Cameras equipped with data multiplex function are connected while the system controllers and multiplex unit compatible with Data are also connected. • Microphone System Cameras Amplifier AUDIO Speakers via Amplifier Combination Cameras Pan/Tilt Table Receiver POWER ALARM ALARM SUSPEND...

  • Page 15: Network System

    <Network System> Personal computers can access the WJ-HD200 via the network. Pan/Tilt Table System Cameras AUDIO Combination Cameras Receiver POWER ALARM ALARM SUSPEND Data Multiplex Unit WJ-MP204 SPOT ALARM/REMOTE MULTI VIDEO RS-232C SCREEN OUT Hub/Router PC(Internet Browser) Data Multiplex Unit...

  • Page 16: Connection With The Camera Site

    A 25-pin connector is used to accept and supply control signals. Data Multiplex ALARM SUSPEND ALARM Unit SPOT MULTI RS-23 SCREEN OUT Disk Recorder WJ-HD200 SPOT MULTI SCREEN OUT POWER POWER Spot Monitor Multiscreen Monitor ALARM/REMOTE Designation Designation Alarm Reset In...
  • Page 17 Notes: • Input rating: Low-active, non-voltage normally open (N.O.) contact • Output rating for pin # 4 ALARM RECOVERY 1* OUT: High-active with a 200 • Output rating for pin # 7 ALARM 2* OUT: High-active with a 4.7 k resistor pulled up to + 12 V. •...

  • Page 18: Serial Port Connections

    RS-485 Cable System Controller SPOT ALARM/REMOTE MULTI AUDIO VIDEO RS-232C MODE 10/100BASE-T DATA SCREEN OUT Disk Recorder WJ-HD200 Frame Shield WJ-HD200 2 (RXD) 3 (TXD) 4 (ER) 5 (GND) 6 (DR) 7 (RTS) 8 (CTS) RS-485 Cable POWER SIGNAL GND...
  • Page 19 <Case 3> With other system devices except System Controller Disk Recorder AUDIO VIDEO DIP Switch (#5 : ON, #6 : OFF) 1 2 3 4 5 6 10/100BASE-T Port Connection The PC controls the WJ-HD200 via Ethernet. AUDIO VIDEO RS-485 Cable System Controller AUDIO VIDEO SCREEN OUT...

  • Page 20: Dip Switch Setting

    DIP SWITCH SETTING The 6-bit DIP switch is used as follows. System Mode Setup Termination 1 Termination 2 1 2 3 4 5 6 MODE #1 through #4: System mode setup #4 and #5: DATA port termination System Mode Switch Position 1 2 3 4 5 6 MODE 1 2 3 4 5 6...

  • Page 21: Setup Procedures

    Notes: PUSH— PAUSE STOP PLAY REC STOP SETUP /ESC FULL ALARM TIME&DATE SERCH SEARCH ALARM ERROR RECALL Digital Disk Recorder WJ-HD200 PLAY MODE SELECT STOP PLAY REC STOP SETUP /ESC FULL ALARM TIME&DATE SERCH SEARCH ERROR PLAY MODE SELECT POWER SIGNAL GND •...
  • Page 22 Displaying WJ-HD200 MAIN MENU 1. Confirm that the camera and peripherals are connected correctly and securely. 2. Turn on the power switches of all system components. 3. Hold down the [STOP] button for 2 seconds. The WJ- HD200 MAIN MENU appears.

  • Page 23: Menu Tree

    Menu Tree There are menu windows in a hierarchy as shown in the figure. WJ-HD200 TIMER MAIN MENU TIMER TIMER SETUP EXT REC SETUP DISPLAY SETUP SYSTEM SETUP ALARM SETUP COMMUNI- CATION SETUP SWITCHER SETUP SYSTEM INFORMATION TIMER PROG1 SETUP...

  • Page 24: Initializing

    INITIALIZING You can initialize either all disk contents including image data and setup data. Initializing All Contents & Setup Data Warning! The following are irrevocable procedures. We strongly recommend that you copy important pictures from the hard disk. 1 2 3 4 5 6 MODE 1.

  • Page 25: Main Menu Wj-Hd200 Main Menu

    Main Menu WJ-HD200 MAIN MENU The main menu is located in the top of the menu tree from where every menu window starts. WJ-HD200 MAIN MENU TIMER REC SETUPO EXT REC SETUPO DISPLAY SETUPO SYSTEM SETUPO ALARM SETUPO COMMUNICATION SETUPO...
  • Page 26 Recording Mode Setup PROG “1-4” NO. “1-4” SETUP Parameters for internal timer recording are assigned to each event (NO. 1-4) of the program (PROGRAM 1-4) in this menu. There are five recording modes available: super fine (SF), fine (FQ), normal (NQ), long-time (EX) and option- al (SP).
  • Page 27 Post-alarm Recording POST ALM This setting specifies the duration of alarm recording after an alarm input. Functions active during alarm recording are buzzer beeping, ALARM LED indication, "ALARM" status display, and the ALARM OUT signal. 1. Move the cursor to POST ALARM REC with the [D] or [C] button.

  • Page 28: Manual Recording Setup Rec Setup

    Manual Recording Setup REC SETUP The WJ-HD200 will record image and audio data in either ways with or without restrictions of the timer. Manual recording is available when OFF is selected for TIMER in the WJ-HD200 MAIN menu, and is free from timer sched- ule.
  • Page 29 2. Press the JogDial (SET) to validate the selection. 3. Press the [D] or [C] button to select the next item, or press the [SETUP/ESC] button to quit the display setup. Time & Date Display TIME & DATE DISP. 1. Select ON or OFF with the JogDial. The default is ON.

  • Page 30: Camera Title Camera Title

    Disk Capacity Warning HDD FULL The recorder observes the disk capacity to warn the opera- tor that the available capacity is nearing the end when STOP is selected for DISK END MODE. There are two warn- ing levels. First, the FULL indicator on the front panel blinks when the remaining capacity has reached the preset value.

  • Page 31: System Setup System Setup

    3. Select either ON or OFF with the JogDial. The default is ON for all cameras. ON: Enables camera title display, title registration, and position selection. OFF: Disables the camera title functions. 4. Press the JogDial (SET) to validate the selection. When on is selected, go to the following steps.
  • Page 32 2. Select either ON or OFF with the JogDial, and press the JogDial. The default is OFF. ON: The buttons are password protected. The recorder enters the button lock mode if neither a button nor the JogDial is operated within a period of five min- utes.
  • Page 33 • Simultaneous playback will pause prior to a time space depending on the recording rate if recording nears to the playback point. 0.1 FPS: 20 minutes maximum 1 FPS: 2 minutes maximum 7.5 FPS: 15 seconds maximum 15 FPS: 7 seconds maximum •...
  • Page 34 Time Adjust Setup TIME ADJUSTING IN and OUT terminals for a calibration signal are provided on the rear panel. The master unit supplies the calibration signal to the slave units one time at the specific hour every- day. The slave unit accepts the signal through the IN termi- nal, and corrects its internal timer to the hour as far as the clock deviates within 15 minutes after or before the hour.

  • Page 35: Alarm Setup Alarm Setup

    Alarm Setup ALARM SETUP The digital disk recorder accepts alarm signals supplied from connected devices such as sensors or camera site equipment. The recorder by itself also generates an alarm signal when the preset motion detection is activated. Any alarm signal starts recording with the preset recording mode, field rate, and picture quality specified in the REC MODE menu described earlier.

  • Page 36: Communication Setup Communication

    CAM1 Notes: • VMD should be used with an ordinary camera input to the unit. Select [OFF] to avoid useless VMD when a video multiplexer or combination camera supplies the input to the unit. • Set the ALARM SUSPEND to ON when VMD is unnecessarily activated during the VMD setup.
  • Page 37 Assignable address: From 1 to 99, must be unique in the chain. DATA protocol. • Note: Assign an address except 1 to WJ-HD200 when using a system controller in the system. System Unit Address SYS-UNIT ADDRESS (exclusive for PS When the recorder performs as a system unit, the unit address can be set from the setup menu on the monitor.

  • Page 38: Network Setup Network Setup

    Available Port Number: From 00000 to 65535 Host Name HOST NAME A maximum of 10-digit host name is entered using alphanu- meric and symbols. The default is WJ-HD200••. Dynamic Host Configuration Protocol DHCP Dynamic Host Configuration Protocol is enabled or dis- abled.

  • Page 39: Switcher Setup Switcher Setup

    IP Address IP ADDRESS The default is “192.168.000.010”. Netmask NETMASK The default is “255.255.255.000”. Gateway GATEWAY The default is “192.168.000.001”. Switcher Setup SWITCHER SETUP SWITCHER SETUP START DISPLAY QUAD-4A MULTI SEL MODE ALL SEQUENCE SETUPO CAMERA VIEW SETUPO Video switcher functions are programmed in this menu setup.

  • Page 40: Camera View Setup Camera View Setup

    4. Repeat step 1, 2, and 3 until all steps are programmed, or press the [SETUP/ESC] button to return to the SEQUENCE SETUP menu. 5. Move the cursor to SEQUENCE TIMING in the SEQ SETUP menu. Select INT or EXT with the JogDial, and press the JogDial.

  • Page 41: System Information System Information

    System Information SYSTEM INFORMATION SYSTEM INFORMATION HDD1 HOUR METER HDD2 HOUR METER HDD CAPACITY DEFAULT SYSTEM VERSION SYSTEM LOGO HDD Hour Meter HDD HOUR METER The meter shows how many hours each hard disk has been operated in playback, recording and idle. The built-in HDD needs replacement when the hour meter reads around 30 000 H.

  • Page 42: Operating Procedures

    OPERATING PROCEDURES CONTROLLING VIDEO INPUTS & MONITORS Operations on the front panel can control video inputs on the spot monitor or multi-screen monitor. On the Spot Monitor Selecting the Spot Monitor 1. Press the [SPOT/MULTI] button to turn the LED in the button on.
  • Page 43 3. Rotate the JogDial to move the zoomed area to the right and left, or press the [D] or [C] button to move the area up or down. 4. Press the JogDial repeatedly to select an appropriate enlargement ratio. Pressing the JogDial : Increases the ratio (x1 5.

  • Page 44: Alarm Control Function

    • During the sequence, the LED's of the [CAMERA SELECT] buttons light up corresponding to the selected cameras that send images to the monitor. Multi-screen monitor MULTISCREEN SELECT (4A) Spot monitor During the sequence, press the [SEQUENCE] button to pause. The LED in the [SEQUENCE] button blinks. 5.

  • Page 45: Resetting Alarm

    Monitor Display There are two monitoring modes, alarm associated (SPOT) mode and alarm ignore (OFF) mode, depending on the selection for MONITOR MODE in the ALARM SETUP menu. Typical cases are described below for each setup. Alarm Associated Mode • The image of the alarm-activated input is displayed on the multi-screen monitor in a single spot mode, inter- rupting whatever the live, playback, single or multiple image previously displayed.

  • Page 46: Suspending Alarm Input

    Pressing REC STOP Button Pressing the [REC STOP] button resets alarm status and recording when MONITOR MODE is set to OFF. When SPOT is set, only the [ALARM RESET] button will reset alarm status and recording. REC STOP Suspending Alarm Input This function may be convenient during setup procedures.

  • Page 47: Recording

    • Recording rate will degrade to 15 FPS while displaying a quad split screen. Internal Timer Recording When INT is set for TIMER in the WJ-HD200 MAIN menu, the reservations based on the internal timer will take effect. Internal timer recording begins when the reserved start time comes and continues until the reserved end time comes.

  • Page 48: Manual Recording

    Manual Recording Manual recording is available when OFF is set for TIMER in the WJ-HD200 MAIN menu. The menu setup can exempt specific inputs from manual recording for the purpose of reserving the disk capacity. The recording mode (SF-48, for...

  • Page 49: Playback

    PLAYBACK In playback modes, the recorded image data are played back. Notes: • Alarm recording will interrupt playback if SIMUL REC&PLAY is set to OFF, or will allow playback to con- tinue if set to ON. • Operation of the [PLAY] button will be ignored if the disk is empty, for instance, when the recorder is used for the very first time or right after formatting of the disk.

  • Page 50: Time & Date Search Playback

    4. Press the [PLAY] button to play back the searched record. 5. Press the [STOP] button to stop playback. Note: “Alarm Search Playback” and “Alarm Log Recall” are similar, but different in operations. Refer to Alarm Log Recall & Search on page 46. Time &...

  • Page 51: Lock/Unlock Buttons

    LOCK/UNLOCK BUTTONS Password Verification When a locked button is pressed, the key locked warning appears on the monitor for 2 seconds, then it turns to the password prompt. / ----- PASSWORD 1. Enter your five-digit password using the [CAM SELECT] buttons (1-8).

  • Page 52: Wj-Hd200 Network Operation

    WJ-HD200 NETWORK OPERATION...

  • Page 53: Preparations

    PREPARATIONS Computer Requirements The personal computer must have the following minimum requirements. One of the following operating systems: Windows98 Second Edition Windows2000 Windows Millennium Edition Windows XP Professional or Home Edition. Browser: One of the following browser software: Microsoft Internet Explorer 5.5SP2, 6.02SP1 Note: •...

  • Page 54: Connection

    OPERATE MULTISCREEN FULL ALARM TIME&DATE RESET LOCK SEQUENCE SELECT SERCH SEARCH ALARM ERROR RECALL ZOOM Digital Disk Recorder WJ-HD200 PLAY MODE SELECT Digital Disk Recorder PUSH– PAUSE SPOT CAMERA SELECT ALARM TIMER MULTI STOP PLAY REC STOP SETUP SUSPEND REMOTE...

  • Page 55: Main Page And Control Panel

    Main Page and Control Panel Start your PC WWW browser. Type http://192.168.0.10/ (or the IP Address set for WJ-HD200) / in the URL (Uniform Resource Locators) space. The browser displays the MAIN CONTROL PANEL of the WJ-HD200 homepage as shown in the figure.

  • Page 56: Wj-Hd200 Setup

    WJ-HD200 SETUP To Access Setup Menus There are fourteen setup menus to adapt the WJ-HD200 to your requirements. 1. On the Main Control Panel, click the [SETUP MENU] button. The setup menu opens. 2. Click the buttons to open the respective windows.
  • Page 57 Program Assignment TIMER REC When internal timer (INT) is selected, programs can be assigned on weekly and/or daily basis. Assignable Programs: PROG1 – PROG 4, OFF Programming PROGRAM SETUP There are four programs each contains four events having start and end time, and recording mode. 1.

  • Page 58: Trigger Action Setup Trigger Action Setup

    at a time. The status display will indicate as “* PLAY” while playing back the images record- ed with a changed rate from the preset. • Suffix “xxx” following “SP-“ is specified in REC MODE TABLE in ADDENDUM attached to the man- ual.

  • Page 59: Manual Recording Setup Rec Setup

    REC: Records the camera channel regardless of alarm- activated or non-alarm status. Manual Recording Setup REC SETUP Manual recording will take effect when OFF, neither INT nor EXT, is selected in the Timer Mode Selection TIME REC window. The parameters for alarm recording will be applied except the scheduled time zone if INT is selected.

  • Page 60: Camera Title Camera Title

    Left- Upper: Displays the title in the left upper corner. Click the [SET] button if all are adequately set. System Setup SYSTEM SETUP 8 Password Lock (PASSWORD LOCK) Buttons on the front panel of the WJ-HD200 will be password-protected or freed. ON: Enables password-protection. OFF: Disables password-protection.
  • Page 61 FTP GET: Places priority on the access to the FTP. NONE: The latest operation has priority than others. 8 Time Adjusting (TIME ADJUSTING) The internal timer built in the WJ-HD200 is calibrated once a day via the Time Adjust In and Out terminals on the rear panel.

  • Page 62: Alarm Setup Alarm Setup

    Alarm Setup ALARM SETUP 8 Alarm Buzzer (ALARM BUZZER) ON: Buzzer beeps while alarm is active. OFF: Buzzer does not beep. 8 Video Loss Detection (VIDEO LOSS DETECT) OFF: Deactivates the video loss detection. ON: Activates the detection. 8 Monitoring Mode (MONITOR MODE) SPOT: Switches to the picture of the channel that the alarm operates.

  • Page 63: Communication Setup Communication Setup

    Communication Setup COMMUNICATION SETUP Click the [SERIAL SETUP], or [NETWORK SETUP] button. The respective window opens. Serial Port Setup SERIAL PORT SETUP 8 Protocol Selection (PROTOCOL SELECT) DATA: Select when the communication chain uses • the PS DATA protocol. • When selected, the DATA terminal on the rear panel can be used.

  • Page 64: Camera Number Setup Cam No. Setup

    Camera Number Setup CAM NO. SETUP (only for PS Assignable number: From 1 to 128, must be unique in the chain. Click the [SET] button if all are adequately set. Network Setup NETWORK SETUP 8 Line Speed (LINE SPEED) AUTO: The speed is automatically selected. 100Mbps (FULL DUPLEX): 100 mega byte, full duplex 100Mbps (HALF DUPLEX): 100 mega byte, half duplex...

  • Page 65: Switcher Setup Switcher Setup

    SNMP System Location Enter from the keyboard. Click the [SET] button if all are adequately set. The WJ-HD200 will restart, and you will be requested to enter the URL as described earlier in Main Page and Control Panel. Switcher Setup SWITCHER SETUP This window specifies sequence setups only for WJ-HD200.

  • Page 66: Spot Sequence Setup Spot Sequence Setup

    Spot Sequence Setup SPOT SEQUENCE SETUP 8 Camera Channel (CAMERA CH) 1 - 8: The selected camera image will be displayed. OFF: Blackout screen will be displayed. 8 Time (TIME) Available duration: 2-30 S Camera View Setup CAMERA VIEW SETUP 8 Mode (MODE) ON: Live image of the channel is displayed.

  • Page 67: System Log System Log

    System Log SYSTEM LOG Click the [SYSTEM LOG] button in the SYSTEM INFORMA- TION window to open the log. In the log, the error cause is abbreviated as follows. TEMP: Temperature inside the unit exceeds over the operating range. HDD1CHK: Error on HDD 1 HDD2CHK: Error on HDD 2 HDD FULL: All capacity has been used up.

  • Page 68: Network Configuration

    NETWORK CONFIGURATION User Setup USER SETUP A maximum of 16 users can be registered. 8 User Authorization (USER AUTHORIZATION) OFF: Allows free access. ON: Verifies the password and access level for a maxi- mum of sixteen users. Click the [SET] button. 8 User Name (USER NAME) Enter from the keyboard.

  • Page 69: Ftp Client Setup Ftp Client Setup

    FTP Client Setup FTP CLIENT SETUP 8 Common Setup (COMMON SETUP) Server Address (SERVER ADDRESS) Enter the server address. Login User Name (LOGIN USER NAME) Enter the user name. Login Password (LOGIN PASSWORD) Enter the password. Mode (MODE) Available Type: SEQUENTIAL, PASSIVE Click the [SET] button.

  • Page 70: Mail Setup Mail Setup

    Mail Setup MAIL SETUP 8 Alarm Mail Setup (ALARM MAIL SETUP) Sending Mail (SEND MAIL) OFF: Does not send. ON: Sends an e-mail to a maximum of four receivers when an alarm operates. Attaching Alarm Image (ATTACH ALARM IMAGE) OFF: Does not attach. ON: Attaches the image of the alarm-activated channel to the mail.

  • Page 71: Operating Wj-Hd200

    !2 To the Oldest Frame button (TO OLDEST) Jumps the recorded image to the oldest frame of the record. !3 Rewind button (SEARCH REVIEW) Rewinds the recorded image on the WJ-HD200 to the start position. !4 Play button (PLAY) Plays back the recorded image.

  • Page 72: Main Control Panel

    !8 Pause button (PAUSE) Pauses the playback image. !9 Stop button (STOP) Stops playbacks including REW, PREV FRAME, PAUSE, PLAY, NEXT FRAME, and FF. @0 Next Frame button (NEXT FRAME) Forwards the frame one step to the next while pausing. @1 Recording button (REC) Starts recording.
  • Page 73 8 Time & Date Search button (Time&Date Search) Clicking the button will display the time and date search dialog. 1. Specify the date, and time. 2. Click the [OK] button. The image will be searched, and displayed in the image area. Note: Searching may take 18 seconds at worst particularly when the recorder runs simultaneous recording and playback, and/or when the targeted image has a small...

  • Page 74: Alarm List

    NEXT button opens a next page. Alarm List Search button opens the search dialog. Event types are abbreviated as follows in the list. TERM: The alarm terminal on the rear of the WJ-HD200 is activated. VMD: The built-in Video Motion Detector operates.

  • Page 75: Troubleshooting

    QUAD ONLY may be set for MULTI SELECT MODE. The WJ-HD200 does not record non- interlace video. Front panel buttons on the recorder are being operated, or more than four PC's access the recorder.

  • Page 76: Specifications & Appendix

    SPECIFICATIONS & APPENDIX...
  • Page 77 SPECIFICATIONS General Power Source Required: Power Consumption: Ambient Operating Temperature: Ambient Operating Humidity: Dimensions: Weight: Input Video Input: Audio Input: Image Process Compression System: Pixel Rate: Refresh Rate: Output Video Output: Video Output Front Panel: Audio Output: Audio Output Front Panel: Spot Monitor Output: Multi-screen Monitor Output: Control Port...

  • Page 78: Standard Accessories

    STANDARD ACCESSORIES Rack Mounting Bracket ... 2 pc's. Screw for Rack Mounting Bracket (M3x10) ... 6 pc's. Absorber ... 4 pc's. Sleeve ... 4 pc's. Hard Disk Fixing Screw ... 4 pc's.

  • Page 79: Appendix

    A system controller having PS Data capability can control the WJ-HD200. The table compares operations of the WJ-HD200 • and of the system controller WV-CU360. Make certain that the protocol selection for the WJ-HD200 is set to PS Item To Show/Hide SETUP...
  • Page 80 Selection Status Info Display ON/OFF Button Lock OFF enter Password. Button Lock ON Time & Date Search Multi-screen Selection Spot Monitor Selection Multi-screen Monitor Selection Camera Selection WJ-HD200 WV-CU360 SHIFT SHIFT SHIFT SHIFT LOCK SHIFT TIME&DATE SEARCH SHIFT MULTISCREEN MULTI SCREEN SELECT...

  • Page 81: Rs-232C Communication Protocol

    RS-232C Communication Protocol The following pages detail the elements for communication between the Digital Disk Recorder and the personal computer. Be sure to select VCR for PROTOCOL in the COMMUNICATION SETUP window. For BAUD RATE, DATA BIT and PARITY settings, refer to COMMUNICATION SETUP.

  • Page 82: Basic Operation

    Command Table Basic Operation Item Transmission Command (ASCII) Fast Forward to the end OFF Pause Play Recording Rewind to the top Skip&Play Forward OSF:n Stop OSP:n Skip&Play Rewind OSR:n Forward a field Rewind a field Camera Selection OCS:ccccc Monitor Selection OMS:mmmm Button Lock MKL:n...
  • Page 83 Setup Control Item Transmission Command (ASCII) Cursor Moves DCR:n1n2 Key Lock MKL:n Recording Event MRM:n Setup Summer Time Setup MST:n Setup MSU:n Date&Time Setup TSU:yyyymmddhhnn Miscellaneous Control Item Transmission Command (ASCII) OSD Show/Hide DIN:n Communication Check RCK Time&Date Search ZTS:yyyymmddhhnnss Data Log Control Item Transmission Command (ASCII)
  • Page 84 Alarm Info Inquiry QLD:n Status Inquiry Software Version Inquiry Response (ASCII) Parameter (ASCII) QHR:nnn nnn=000-100 Decimal % QID:WJ-HD200 QKM:n n=0 Lock OFF n=1 Lock ON QLD:n (Alarm Information) In Transmission command: n=0 Event report n=1 Date&time report In Response command:...

  • Page 85: Hdd Maintenance

    HDD Maintenance When to Maintain HDD HDD maintenance is required in the following cases. • When FULL indicator lights up • When ERROR indicator lights up • When an optional hard disk is added • When you wish to format the HDD or to remove link •...
  • Page 86 DISK END MODE, provided that the disk space nears the end. To reset it, obey the following. 8 DISK END Setup 1. Hold down the [STOP] button for 2 seconds to open the MAIN MENU. WJ-HD200 MAIN MENU TIMER REC SETUPO EXT REC SETUPO DISPLAY SETUPO SYSTEM SETUPO...
  • Page 87 DISK MENU 8 Disk Menu The menu appears if the hard disk error is found during power-up. The buzzer beeps every 5 seconds, and ERROR indi- cator turns off. Press buttons other than [STOP] to mute buzzer beep. Hard disk status and required operation are shown in the table. Abbreviation Status Capacity Normal status...
  • Page 88 8 Removing Logical Link (REMOVE LINK) This command logically disconnects the erred HDD from the recorder, applicable to the HDD with status conditions of *, ERR, or LOST. You may use this command before physically removing the erred HDD, or when you continue to operate the system after logically removing the erred HDD.
  • Page 89 5. Select YES or NO rotating the JogDial, and press the JogDial. YES: Carries out formatting. Wait until it ends. When YES is selected, the display will turn to NOW FORMATTING. It will change to HDD FORMAT DONE when formatting is completed. NOW FORMATTING HDD FORMAT SET DONE!

  • Page 90: Http Download And Viewing Image

    HTTP Download and Viewing Images When accessing the WJ-HD200 from the browser, and the DOWNLOAD button is clicked in playback, the image data and viewer software are downloaded as an “exe” file to your PC. 1. Move the file to an appropriate folder.

  • Page 91: Mail Contents

    THERMAL ERROR DISK WARNING OF TYPE? HDD CAPACITY REMAINS **% HDD IS FULL DISK TYPE? IS LOGICALLY REMOVED VIDEO LOSS nCH UNDEFINED ERROR WJ-HD200(Sender IP Address) STATUS REPORT DATE : Jan-21-03 00:00:00 STATUS : Abbreviated Cause Cause Out of operating temperature S.M.A.R.T.
  • Page 92 Unit Company of Matsushita Electric Corporation of America Security Systems www.panasonic.com/cctv Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094 Zone Office Eastern: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303 Central: 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205 Western: 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840...
