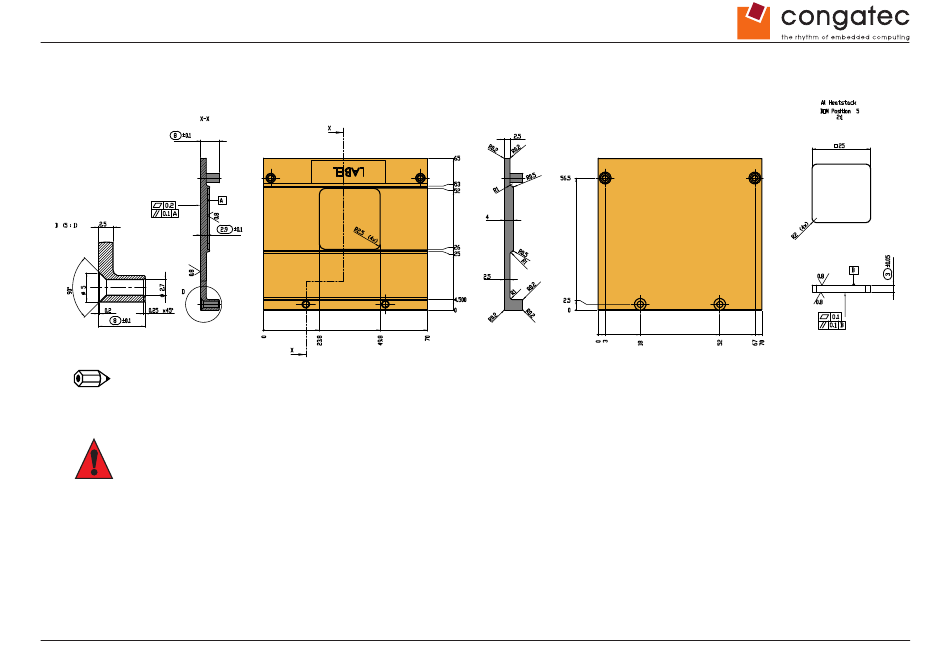

conga-QMX6/HSP3-B

Note

All measurements are in millimeters. Torque specification for heatspreader screws is 0.3 Nm. Mechanical system assembly mounting shall

follow the valid DIN/IS0 specifications.

Caution

When using the heatspreader in a high shock and/or vibration environment, congatec recommends the use of a thread-locking fluid on the

heatspreader screws to ensure the above mentioned torque specification is maintained.

QMX6m03

25/63
