2.3 Failsafe Output Wiring
The Failsafe output relay is provided to signal critical error conditions that may occur on the
RS940G. The contacts are energized upon power up of the unit and remain energized until an
alarm condition or power loss occurs. The behavior of the failsafe relay is configurable via the
RuggedSwitch Operating System. Consult the RuggedSwitch Users Guide for details.

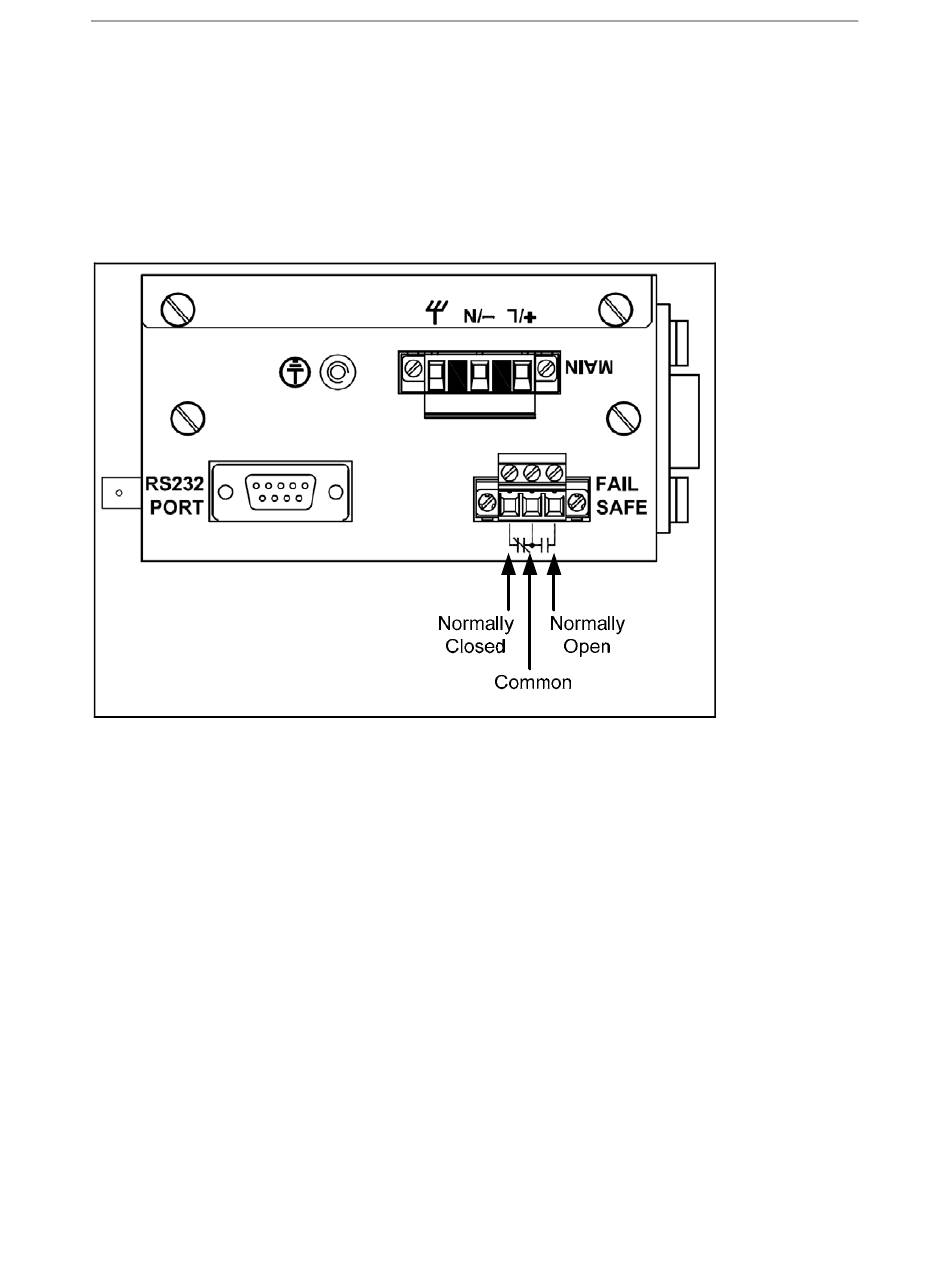

Figure 7 - RS940G Failsafe Output Relay
13
RuggedCom
RuggedSwitch
RS940G Installation Guide rev101
®
®
