Altronix TROVE T2KHK3F12 Installation Manual page 4

2.00" (50.8mm)
1.25"
(31.8mm)
(38.1mm)
6.25" (158.8mm)
1.25" (31.8mm)
1.00" (25.4mm)
2.00" (50.8mm)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIT2KHK3F12(D)
- 4 -

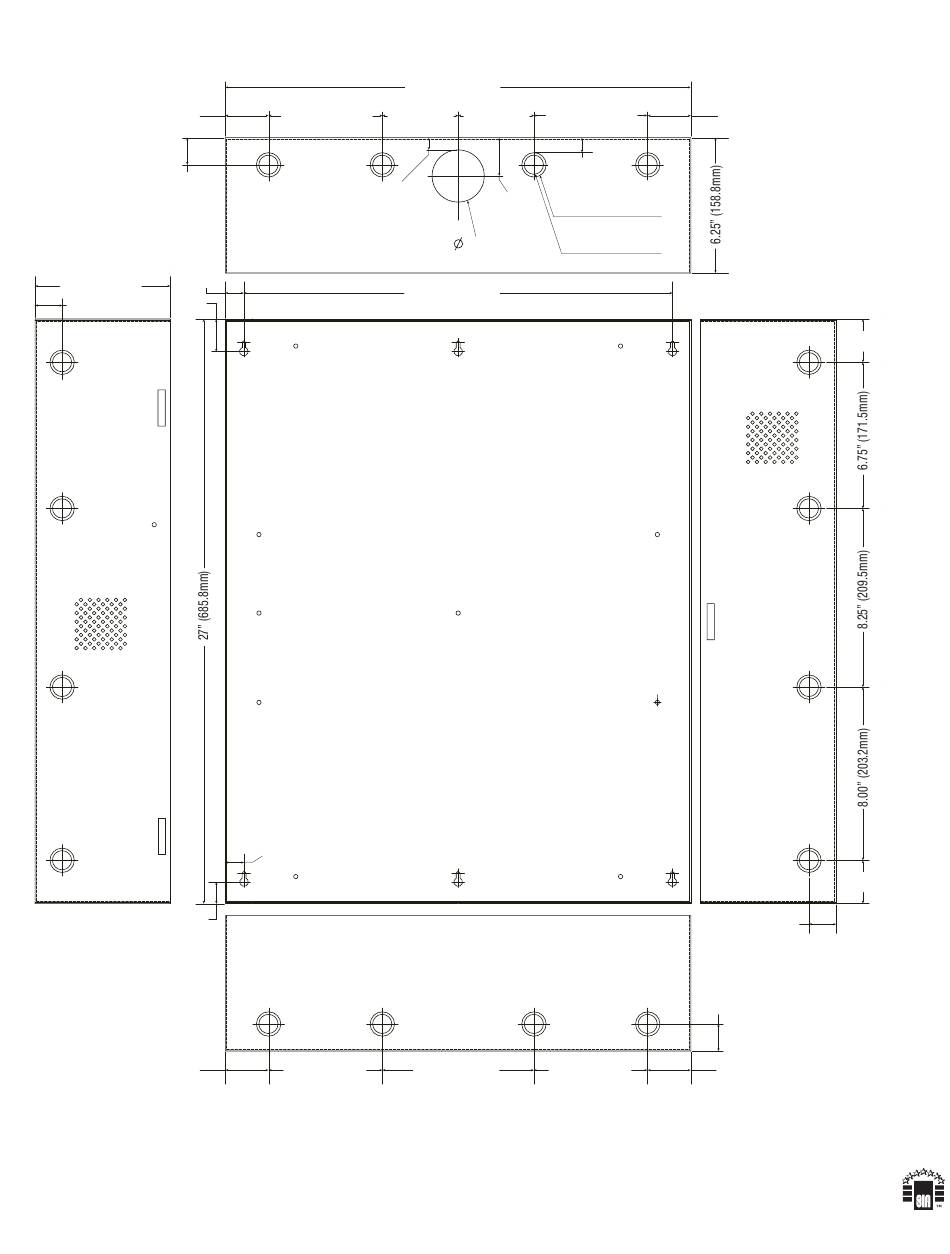

Enclosure Dimensions (H x W x D):
27.25" x 21.75" x 6.5" (692.2mm x 552.5mm x 165.1mm)
5.25" (133.35mm)
0.5625" (14.3mm)
1.5"
0.85" (21.6mm)
5.25" (133.4mm)
21.50" (546.1mm)
3.5"(88.9mm) 3.5"(88.9mm) 5.25" (133.35mm)
0.685" (17.4mm)
Knockouts
1.77"
1.125" (28.3mm)
(45mm)
2.415" (61.3mm) 0.885" (22.5mm)
19.80" (502.9mm)
7.00" (177.8mm) 5.25" (133.4mm)
F02U
2.00" (50.8mm)
2.00" (50.8mm)
2.00" (50.8mm)
1.25" (31.8mm)
1.25" (31.8mm)
2.00" (50.8mm)
T2KHK3F12(D) Installation Guide
