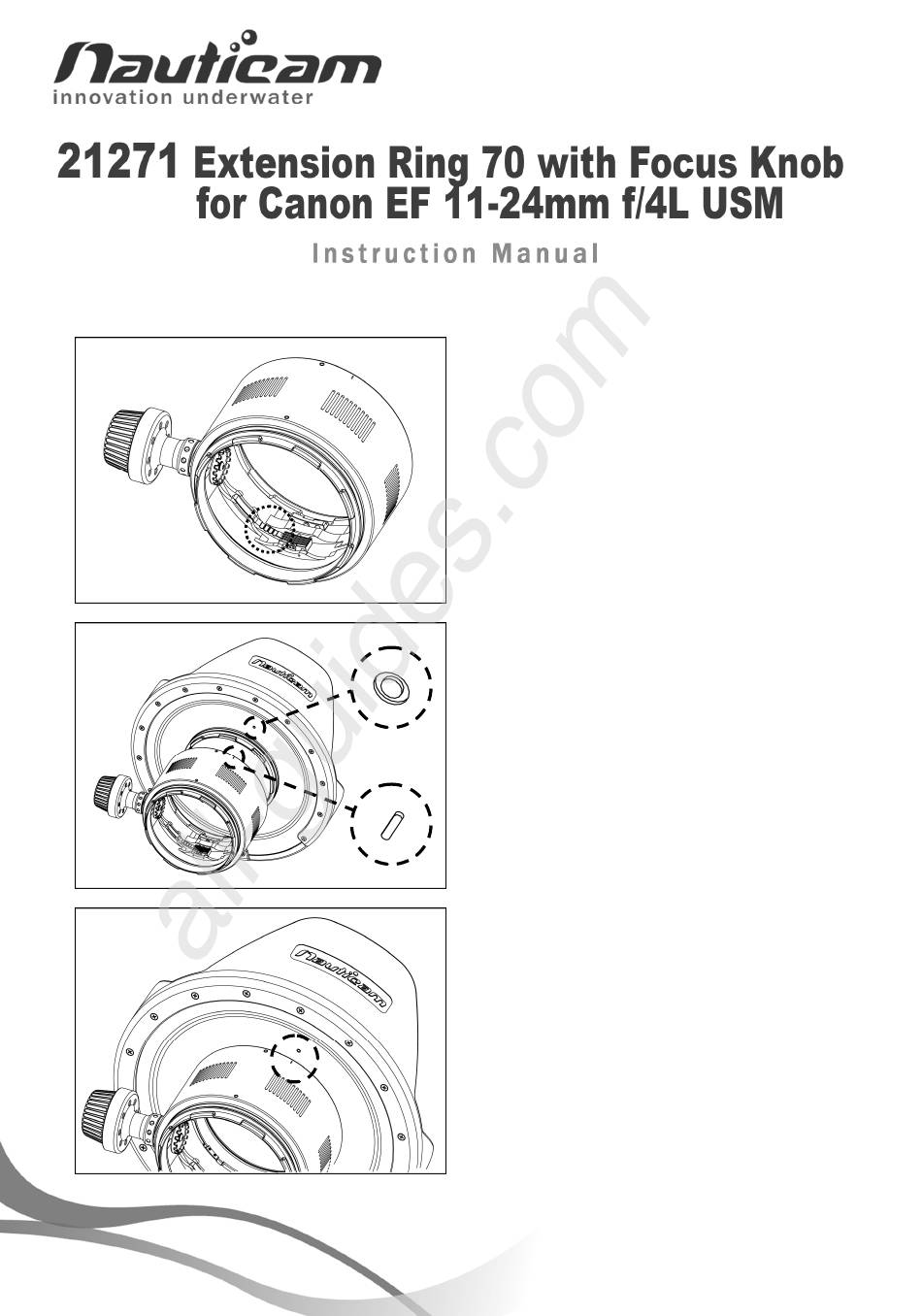

Nauticam 21271 Instruction Manual

Extension ring 70 with focus knob for canon ef 11-24mm f/4l usm

Please follow the instructions below to mount the Extension Ring on a port.

All manuals and user guides at all-guides.com

1. Confirm that the extension ring is unlocked,

2. Align the "I" mark on the extension ring with

3. Gently push the extension ring towards the

Press the RED bar to unlock the locking device of

the extension ring.

the WHITE dot on the port.

port until it cannot go any further.

Table of Contents

Need help?

Do you have a question about the 21271 and is the answer not in the manual?

Page 1 All manuals and user guides at all-guides.com Please follow the instructions below to mount the Extension Ring on a port. 1. Confirm that the extension ring is unlocked, Press the RED bar to unlock the locking device of the extension ring. 2.
Page 2 All manuals and user guides at all-guides.com 4. Turn the extension ring clockwise until the white dot on the extension ring aligns with the white dot on the port. 5. Push the locking device inwards. Ensure that the extension ring is securely locked with the port. Push inwards 6.
Page 3 All manuals and user guides at all-guides.com 7. Make sure the control knob is at its most outwards position before mounting/ un- mounting the port. The knob should be left at this position until it is made sure that the lens and focus gear is properly installed.
Page 4 All manuals and user guides at all-guides.com The control knob of this extension ring can be used with focus gear of Canon EF 11-24mm f/4 USM (P.N. 19551) and Canon EF 16-35mm f/2.8L II USM (P.N. 19527). The control knob is set to be use with 19551 by default. To use 19542, a larger cog (supplied) have to be installed.
