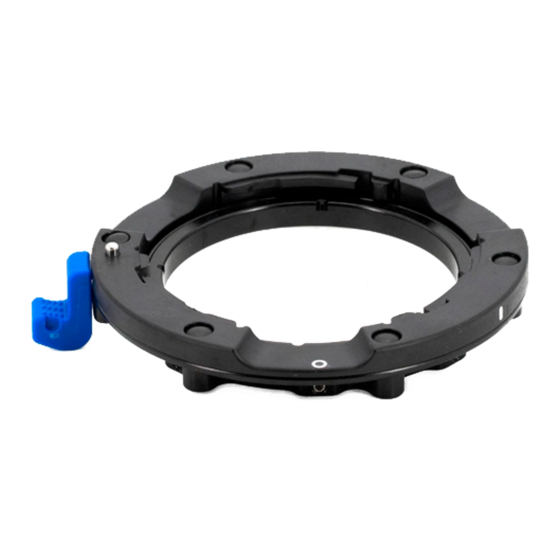

Nauticam 25101 Instruction Manual

Nauticam 25101 Instruction Manual

Flip diopter holders

Advertisement

Quick Links

Instruction Manual for
M67/M77 Flip Diopter Holders
PN# 25101, 25103, 25108, 25109
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximise
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.
I
P
DENTIFICATION OF
ARTS
M67 thread
*There are two alignment pins at the bottom of the holder, by relocating the
two screws to the threaded holes around the holder, the position of the
holder can be changed.
#25101 M67 Flip diopter holder is used as an example in this instruction
manual, #25103 will be slightly different in term of appearance.
Locking ring
Release lever
Alignment pins*
M
F
H
OUNTING THE
LIP
OLDER ON A
Press
1
Press the lever and flip the diopter holder to the side then remove the locking
ring from the flip diopter holder.
Align the two positioning screws on the back of the holder with the slots on
the front of the port.
The position of the flip diopter holder can be changed by relocating the two
screws in the threaded holes around holder.
P
ORT
Flip out
2
Current as of 2021-6-24

Advertisement

loading
Need help?

Need help?

Do you have a question about the 25101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nauticam 25101

  • Page 1 #25101 M67 Flip diopter holder is used as an example in this instruction manual, #25103 will be slightly different in term of appearance.
  • Page 2 Fasten the holder by screwing the locking ring into the thread on the front of the port. To un-mount the flip diopter holder from the port, reverse the above steps. PECIFICATIONS Thread size for diopter: 25101: M67 25103: M77 Thread size for ports: 25108: M67 25109: M77...
