Nauticam 26306 Instruction Manual

26306 26306
26306 26306

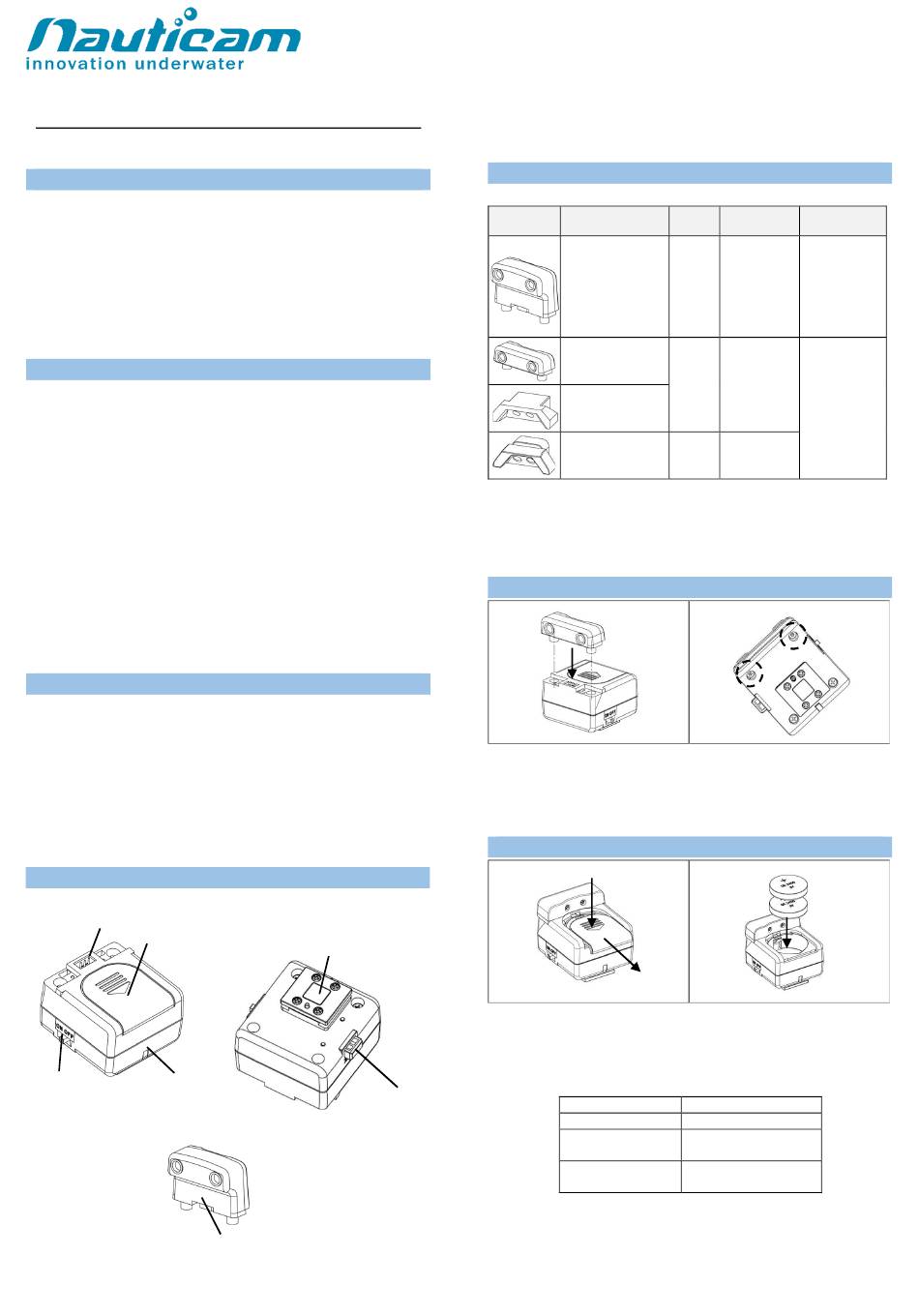

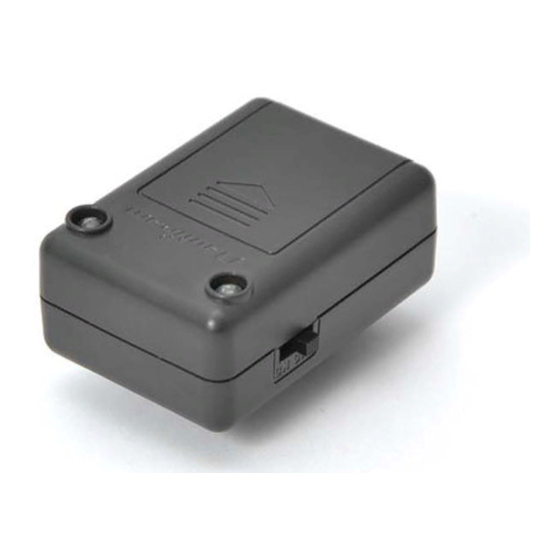

Mini Flash Trigger for Olympus Mini Flash Trigger for Olympus Mini Flash Trigger for Olympus Mini Flash Trigger for Olympus
Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY
ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
P P P P
RECAUTIONS RECAUTIONS
RECAUTIONS RECAUTIONS
• Use only batteries approved for use in this product, do not mix old and
new batteries.
• Check the battery terminals before installing into the product.
• Remove batteries for storage, do not store the product in an
environment of high humidity.
• Do not leave the product in direct sunlight for prolonged periods.
• Keep out of reach of children, failure to do so could result in injury.
• Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in mal-
function.
I I I I P P P P
DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF ARTS ARTS ARTS ARTS
LED modules attachment socket
Battery compartment cover
On/off switch Indicator
NA398-01-LED module
for
NA-EM5II/EM5III/EM1II/EM1III/EM1X/EM10IV
C C C C
*The flash trigger is shipped without the EM1 and EM5II module from Jul
2021(serial number from A503839 onwards) to reduce unnecessary
waste and impact to the environment. Please contact our dealer or
innovation@nauticam.com for the EM1 and EM5II LED Module.
LED LED LED LED M M M M
Choose the required LED module and attach it to the flash trigger base
with the LEDs facing outwards. Make sure the connector on the bottom
of the LED module correctly plug-in to the socket on the flash trigger base.
Secure the LED module by tightening the two supplied screws at the
bottom of the flash trigger.
B B B B
Hotshoe connector
Make sure the On/Off switch is in the OFF position. Remove the battery
compartment cover by sliding it outwards.
Install the batteries (Panasonic CR2450 x2pcs) with +ve terminal facing
up as shown above. Close the battery compartment cover and then
switch the trigger unit on. The indicator will turn green.
Release button
OMPATIBLE HOUSINGS AND MODULES OMPATIBLE HOUSINGS A ND MODULES
OMPATIBLE HOUSINGS A OMPATIBLE HOUSINGS A ND MODULES ND MODULES
Image PN Group
Group
NA398-01-LED H
NA398-01-LED L
NA338-01-700-A
NA398-01-038-0-B
I I I I
ODULE ODULE ODULE ODULE NSTALLAT NSTALL NSTALL NSTALL AT ATION AT ION ION ION
I I I I
ATTERIES ATTERIES ATTERIES ATTERIES NSTALL NSTALL NSTALL NSTALLAT ATION AT AT ION ION ION
Press
Slide
Indicator Indicator Indicator Indicator
Green light
Flashing Green
light (1 flash/sec)
Flashing Red light
(1 flash/sec)
Compatible
Remark
housings
NA-EM5II
NA-EM5III
NA-EM1II included in
A NA-EM1III the package
NA-EM1X
NA-EM10IV
- NA-EM1
Not included
in the
package
- NA-EM5II
Status of flash trigger Status of flash trigger Status of flash trigger Status of flash trigger
Start up.
Ready to use, normal
operation.
Low battery warning,
replace batteries.
Current as of 2022-4-7
