Nauticam 25107 Instruction Manual

Instruction Manual for

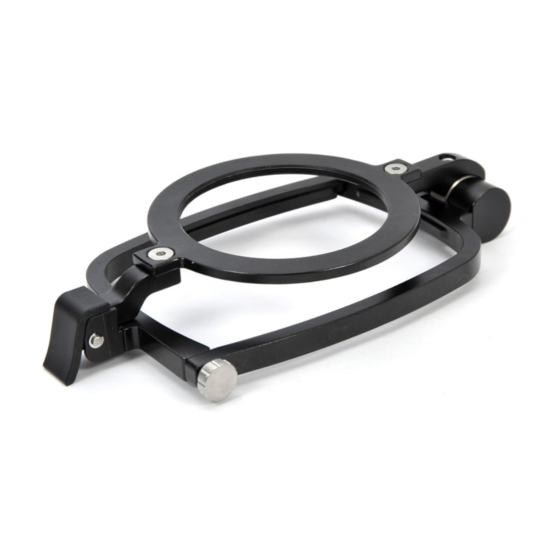

M67 Flip Diopter Holder
for NA-LX100/LX100 II Standard Port
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements of
professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high level
of user-friendliness by allowing stress-free installation and easy operation of all
important functions of the camera.
Please read this manual carefully before using the product, this will maximise its
performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and manufacturing
defects for two years from the date of purchase for consumer use. This warranty
only applies to products purchased from authorised NAUTICAM dealers and does
not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability to
capture images even if it is due to the malfunctioning of our products.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.
M F H
OUNTING THE LIP OLDER ON A
Please follow the instructions below to mount the flip
diopter holder on Nauticam LX100/LX100 II Standard
ports.
Press the lever and flip the holder to the side
PN# 25107
P
ORT
Press
Open the flip holder by unscrewing the thumb screw.
Mount the flip holder onto the rubber ring recess of the
NA-LX100/LX100 II as shown.
Current as of 2018-10-23
