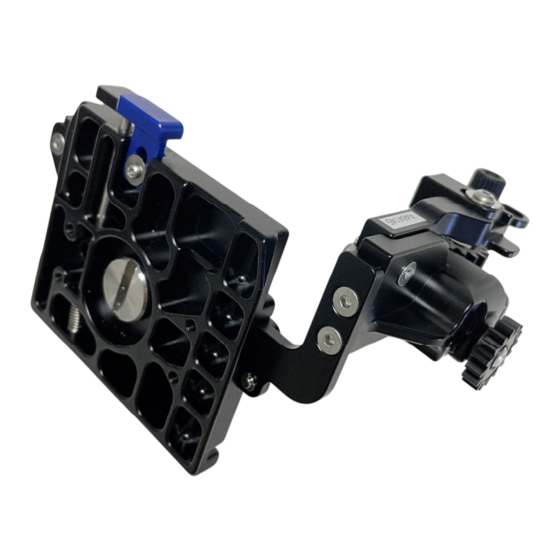

Nauticam 26320 Instruction Manual

26320 26320
26320 26320
Control Kit for Canon Drop Control Kit for Canon Drop- - - - In In In In Control Kit for Canon Drop Control Kit for Canon Drop
Filter Mount Adapter EF- - - - EOS R Filter Mount Adapter EF
Filter Mount Adapter EF Filter Mount Adapter EF
Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY
ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
I I I I P P P P
DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF ARTS ARTS ARTS ARTS
Fixing bracket and screw
I I I I C C C C
NSTALLING THE NSTALLING THE ONTROL ONTROL
NSTALLING NSTALLING THE THE ONTROL ONTROL
1. By unscrewing the two screws as shown, remove the original
assembly of NA-R5/6 camera tray.
EOS R
EOS R EOS R
Adapter release actuator
K K K K
IT TO THE CAMERA TRAY Y Y Y IT TO THE CAMERA TRA
IT TO THE CAMERA TRA IT TO THE CAMERA TRA
2. Mount #26320 Control Kit for Canon Drop-In Filter Mount
Adapter EF-EOS R on the housing camera tray, then tighten the
two screws as shown.
3. Then, attach the saddle of the camera to the camera
to the housing manual for mounting the camera tray)
4. To make an engagement with the adjustment dial of the adapter
and fixing bracket of control kit, push inward the fixing bracket of
the control kit after unscrew the thumb screw as shown.
5. Confirm that the adjustment dial and lens release button
operate correctly after mount the camera on the housing.
(Please refer
Current as of 2021-05-24
